INSTALLATION
4-18 HySpeed HT2000 Instruction Manual
19

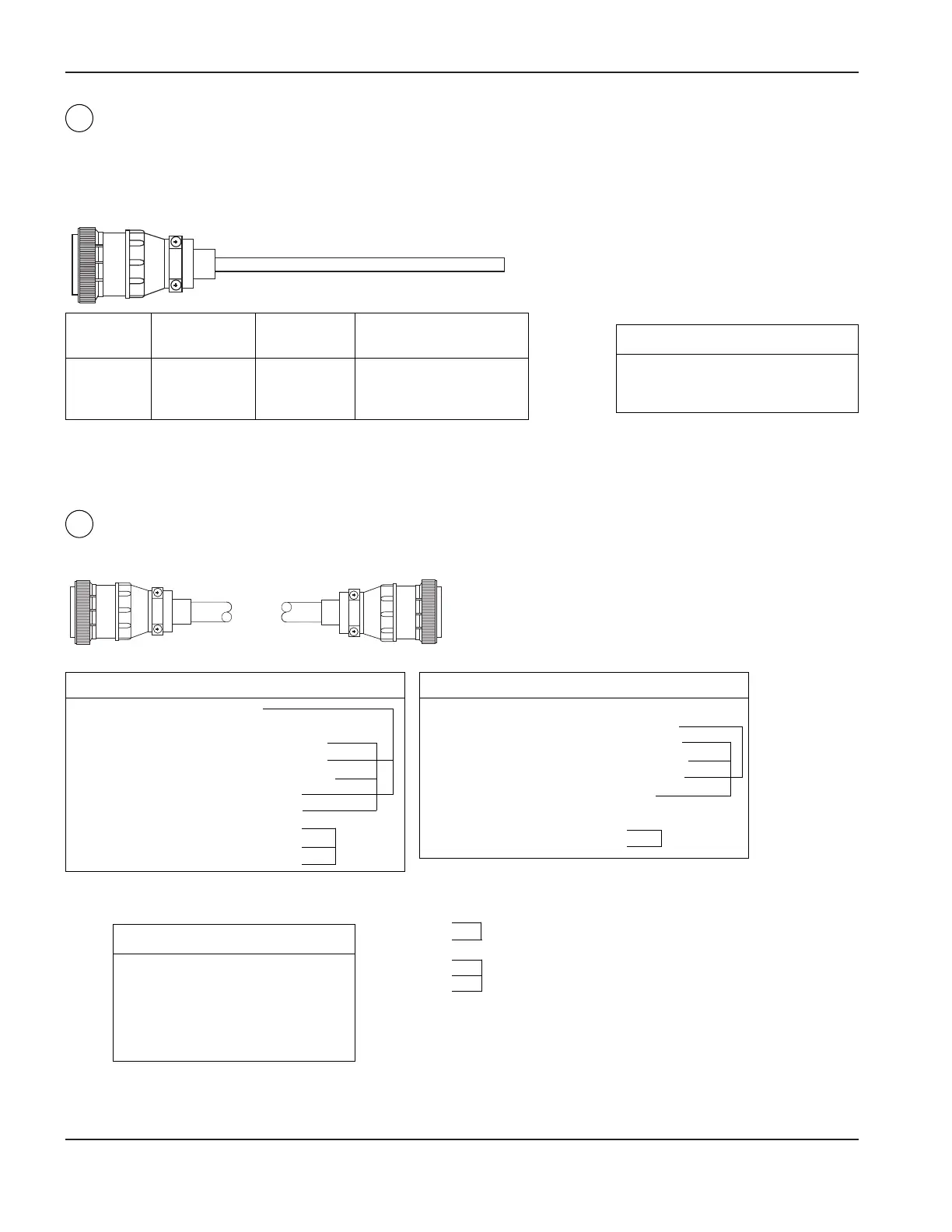

Water Muffler Pump Cable – Power supply to Water Muffler Pump
See IM205 (802050) to connect cable to pump motor, and to make remaining water muffler connections. The
water muffler cannot be used with the stainless steel machine torch.
IHS Interface cable – PS to IHS
Indicates Pairs
Indicates Pairs w/Drain
Note: On IHS End, cut Red/Black Shield &
White/Black Shield Wires
12
1X10
PS End
13
1X9
8X1
PS End IHS End
From 1X10 To WM Pump Color Function
Pin Contactor
2 Coil Black Water Muffler Coil
4 AC Neut. White AC Neutral
3 Ground Green Ground
Part No. Length
023866 50 ft (15 m)
023867 75 ft (23 m)
023868 100 ft (30.5 m)
Legend–PS End
Pin Color Function
1 Red IHS Complete Sig.
2 Grn Upper Limit Sw Sig
4 Blk IHS Complete Com
5 Blk Upper Limit Sw Com
8 Drain Shield-Wht/Blk
9 Drain Shield-Red/Blk
7 Drain Shield-Grn./Blk
11 Blk AC Power
14 Wht AC Power
Legend–Remote V/C End
Pin Color Function
1 Red IHS Complete Sig.
2 Grn Upper Limit Sw Sig
3 Blk Upper Limit Sw Com
4 Blk IHS Complete Com
5 Drain Shield-Grn/Blk
7 Key
8 Wht AC Power
9 Blk AC Power
Part No. Length
023859 25 ft (7.6m)
023860 50 ft (15m)
023861 75 ft (23m)
023862 100 ft (30.5m)
023863 150 ft (46m)
023864 200 ft (61m)
To Next Page
