 Controller‐Devices 
37


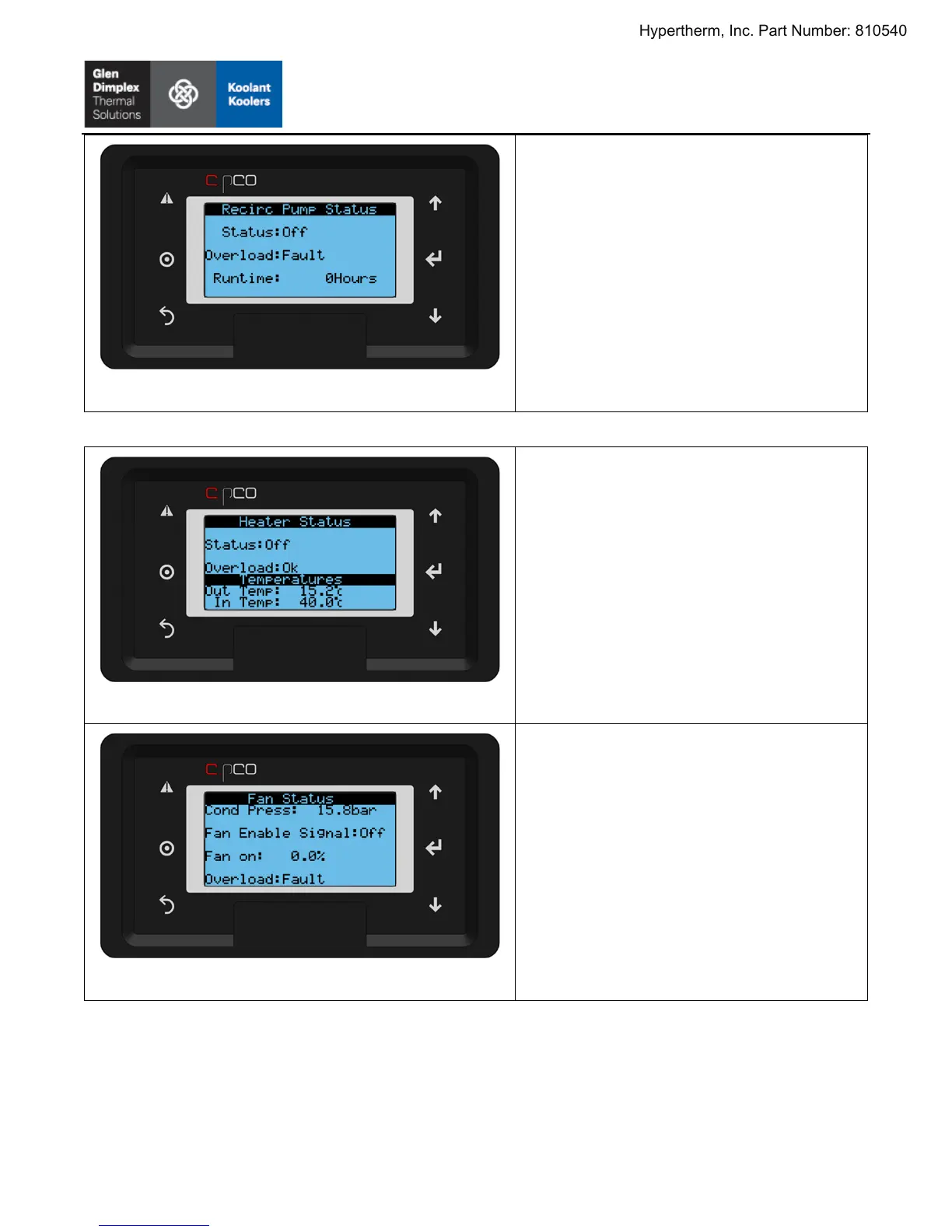

Figure23:Devices,RecirculationPumpStatus
Status:Statusofprocesspump(On=running,
Off=notrunning).
Overload:Statusofpumpoverload(Ok=
overloadisfunctioningnormally,Fault=
overloadhastripped).
Runtime:Totaltime(inhours)thepumphas
beenoperating.


Figure24:Devices,HeaterStatus
Status:StatusofHeater(On=heating,Off=
notheating).
Overload:Statusofpumpoverload(Ok=
overloadisfunctioningnormally,Fault=
overloadhastripped).
OutTemp:Processfluidsupplytem perature.
InTemp:Processfluidreturntemperature.


Figure25:Devices,FanStatus
CondPress:Pressureofrefrigerantforvaporto
liquidphasechange.
FanEnableSignal:Statusoffan(On=running,
Off=notrunning).
FanOn:Percentageoffullfanspeed.
Overload:Statusoffanoverload(Ok=
overloadisfunctioningnormally,Fault=
overloadhastripped).

