TORCH SETUP
3-22 powermax 65/85 Operator Manual
20:1 21.1:1 30:1 40:1 50:1
Setting the five-position voltage divider
To change the factory preset voltage divider from 50:1 to a different setting:
1. Turn OFF the power supply and disconnect the power cord.
2. Remove the power supply cover.

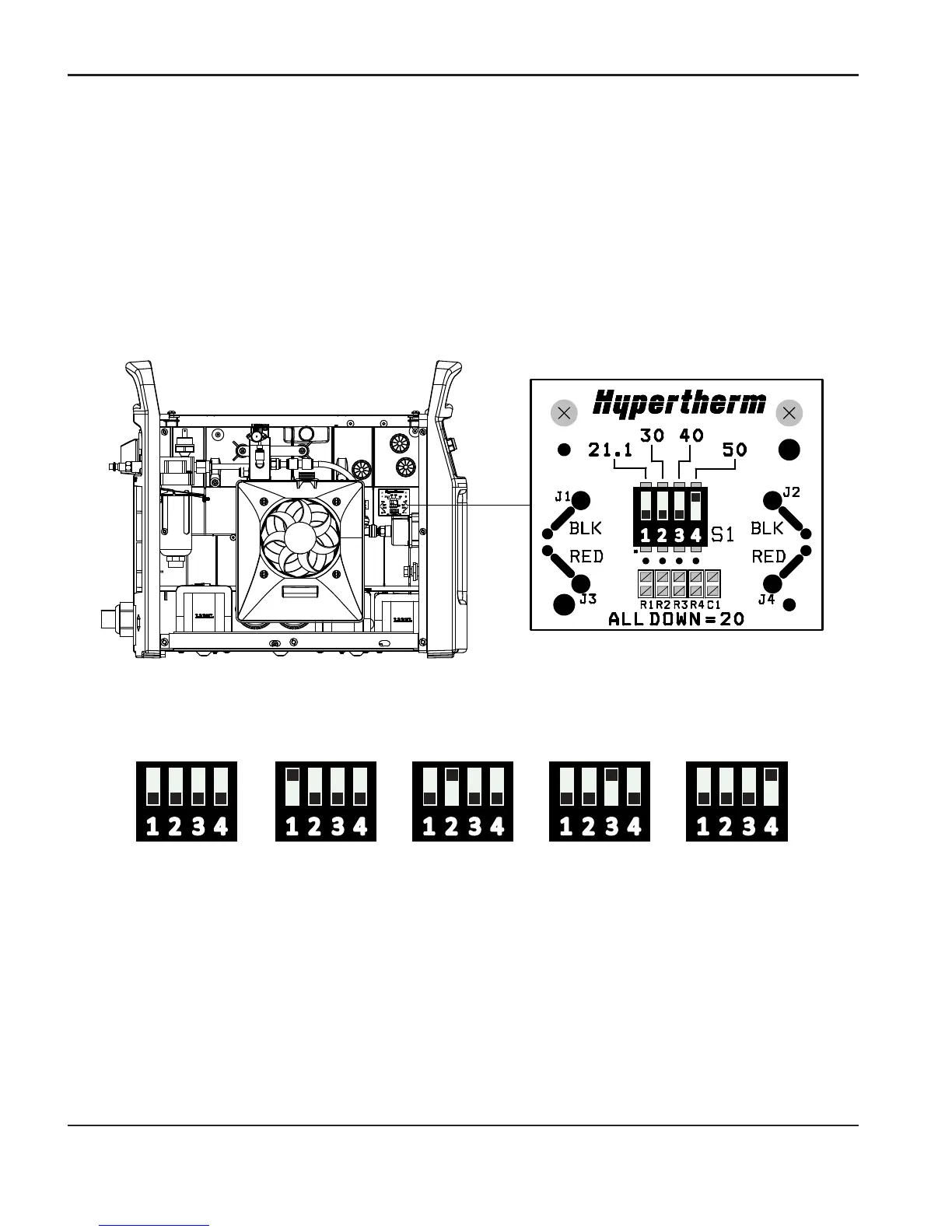

3. Locate the voltage divider DIP switches on the left side of the power supply.
ote:N The figure below shows the default setting (50:1) with the number 4 switch up.
4. Set the DIP switches to one of the following settings and replace the power supply cover.

Hypertherm Powermax 85 Specifications

General

Gas Supply	Clean, dry, oil-free air or nitrogen
Cooling Method	Fan-cooled
Input Voltage	200-600V, 3-phase
Current Output	25-85 A
Duty Cycle	60% @ 85 A
Recommended Gas Inlet Flow Rate/Pressure	6.7 scfm @ 85 psi
Cutting Capacity (Recommended)	1" (25 mm)
Gas Type	Air/Nitrogen
