Hypertherm powermax45 Service Manual

component replacement
powermax 45 Service Manual 6-19
Item Description
1 Ribbon cable (J7connector)
2 Heat sink assembly screw
3 J10 and J12connectors
4 J13connector
5 J14connector
6 J16 connector
7 J17connector
8 J19connector
9 J22connector
10 Work lead connector (J21)
11 Retaining screw
12 J20connector
13 Resistor screws (4)
Item Description
14 Pressure relief vents
15 Capacitor screws (4)
16 J15connector
17 J18connector
18 Input bridge diode screw
19 Newer boards have a slot here
20 ON/OFF switch wires
21 J1connector
22 J2connector
23 J6connector
24 IGBT attachment screws (3)
25 J3, J4, and J5connectors

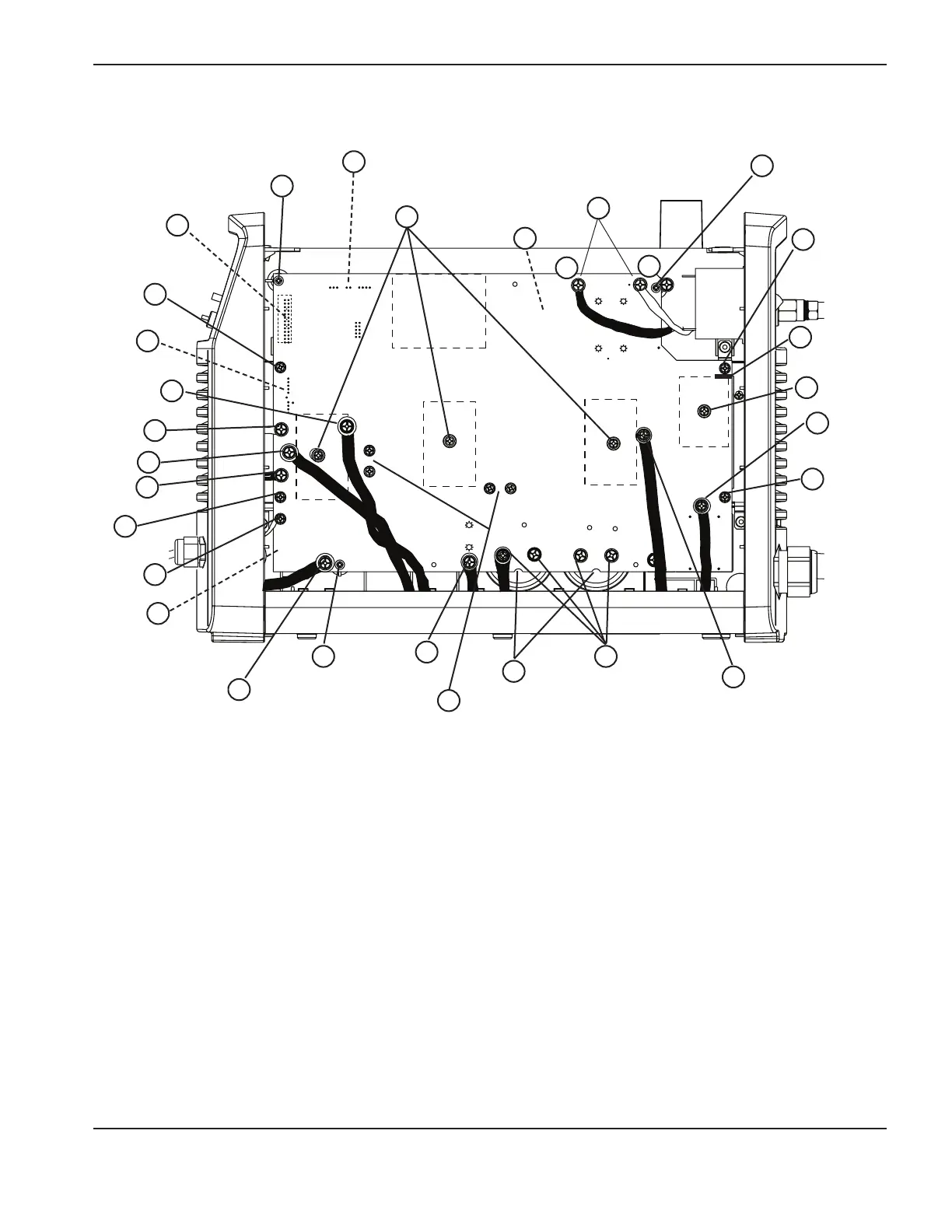

Newer 200–240V CSA and 230V CE power board
TP 19
W
-
+
-
+
TP 18
R
TP 17
B
192 VDC
192 VDC
1
2
2
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
11
11
25
