groundIng, BreatHer Cap InstallatIon & HandIng
The gate operator has a vent plug that keeps the hydraulic uid from spilling during shipment. The vent plug
must be replaced by the breather cap before operating the slide gate.
Failure to perform the following procedure will cause premature pump shaft failure and void the
Limited Warranty.
1. Remove the vent plug and discard it.
2. Replace the vent plug with the breather cap.
Replace red vent plug
with breather cap

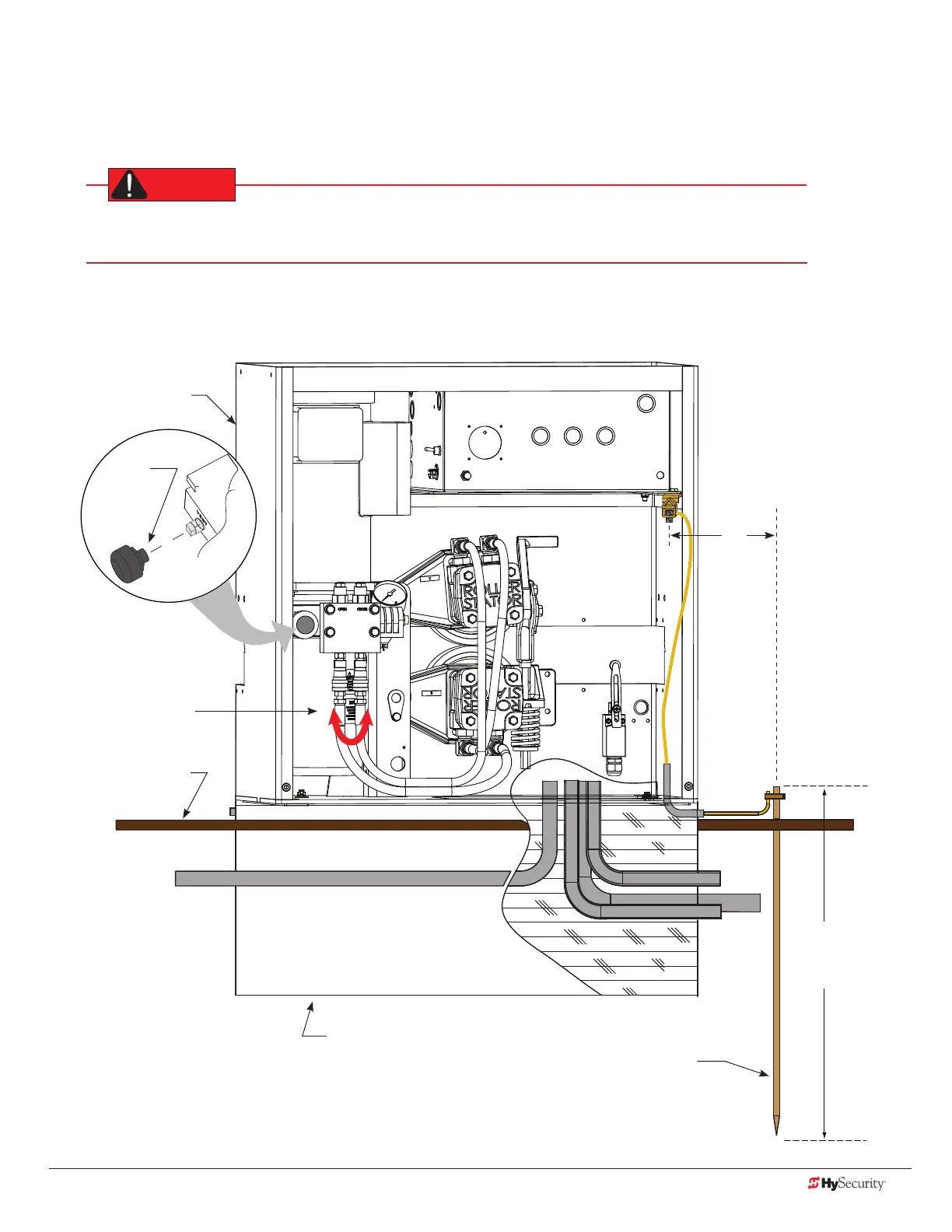

Concrete foundation
Ground rod
Consult local
codes for
proper depth
Cut-away view
Grade level
SlideDriver
3 ft
(91.4 cm)
Maximum
distance
Operator is shipped
hydraulically congured
for “right hand” operation.
Refer to “Gate Handing”
on page 23.
Swap hydraulic hoses for
left handling.
