28 D0559 Rev. A SlideDriver/SlideDriver 50VF Series www.hysecurity.com
emergenCY fast operate (efo) In
slIdedrIver 50vf-serIes

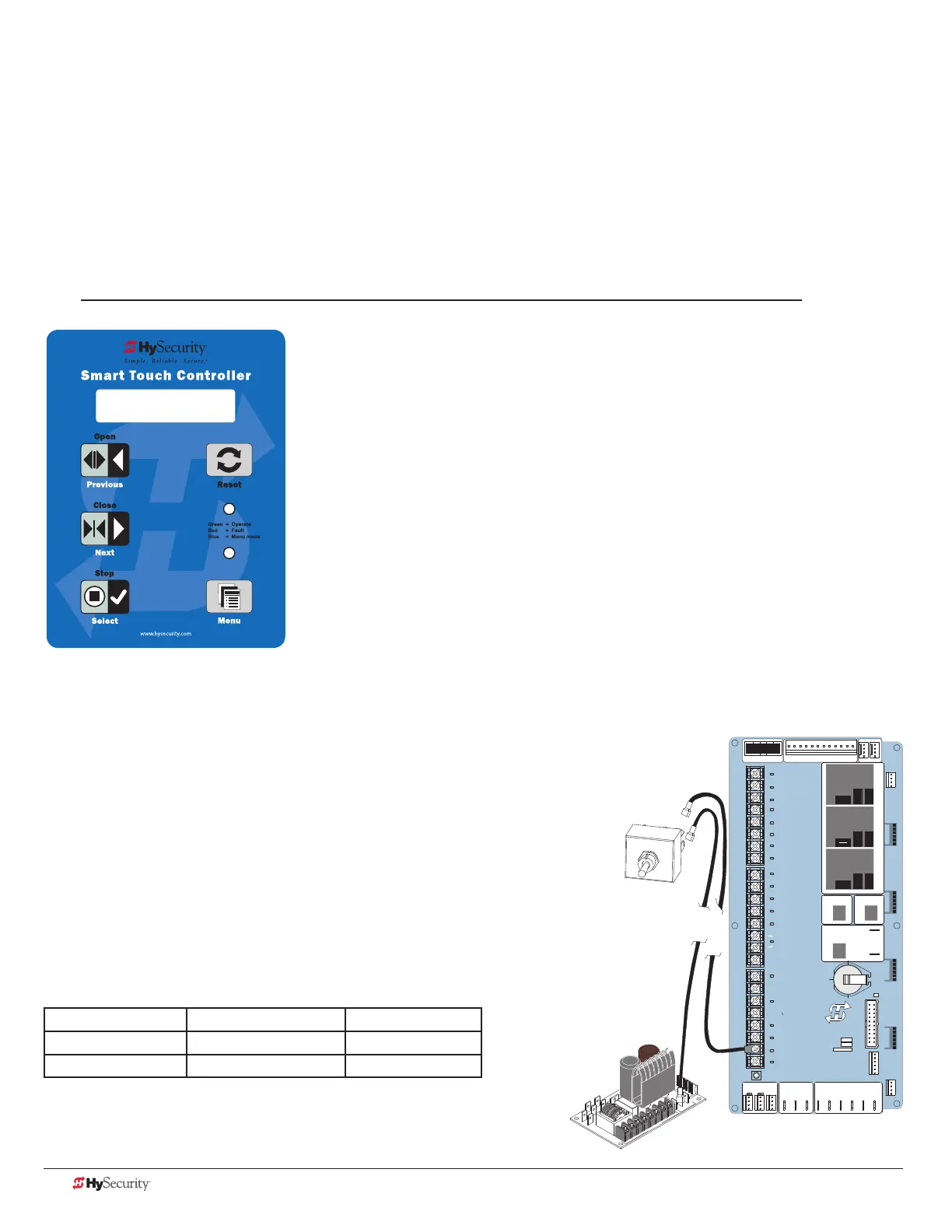

Setting the Emergency Fast Close
To enable the Emergency Fast Close option on a SlideDriver 50VF-series operator, you need to program the
Smart Touch Controller by taking the following steps:
NOTE: When you are in programming mode the buttons on the keypad change from Open, Close, and
Stop to Previous, Next, and Select. Refer to “Menu Mode Navigation” on page 36.
1. Make sure the operator is turned ON and a Run mode status (example,
GATE OPEN) appears on the Smart Touch Controller, which indicates the
machine is operational.
2. Press the Menu button twice to access the User Menu.
3. Press and hold the Reset button and then the Open button. Hold the
buttons for two seconds and then release both buttons. FO x appears on
the display which indicates you have accessed the Installer Menu.
4. Press Next until the Emergency Close (OC 0)appears on the display.
5. Press Select and OC starts blinking, which indicates the display can be
changed.
6. Press Next or Previous to change the display to OC 1.
7. Press Select to accept the entry. (The display characters stop blinking.)
8. Press Program to exit programming mode and return to Run mode.
A Run mode gate status appears (example, GATE OPEN).
Installing a Push-Button Device for EFC
The Emergency Fast Close on the 50VF-series is designed for a
constant hold function, such as a push-button device that is held
for the duration of gate travel. To operate properly, the device must
be connected to Terminal 23 on the Smart Touch Controller and a
+24VDC terminal on the Power Module.
When the connections are made, a constant hold signal transmitted
to the Smart Touch Controller causes the Emergency Fast Close
function to close the gate at a higher speed than usual, and photo
eyes, vehicle loop inputs, and other safety devices are ignored.
Emergency Fast Close Speeds
Operator Close Speed EFO Close
SlideDriver 50VF2 2.2 fps (26 in per sec) 3 fps (91 cm/s)
SlideDriver 50VF3 3 fps (91 cm/s) 3 fps (91 cm/s)
OC 1
EMERGENCY CLOSE
STOP BUTTON
OPEN BUTTON
CLOSE BUTTON
REMOTE OPEN AND
RADIO CONTROL
OPEN/CLOSE
1
OPEN PARTIAL
INTERLOCK OPEN
TIME CLOCK OPEN
FREE EXIT DETECTOR
DISABLE EXIT DETECTOR
DISABLE CLOSE TIMER
INSIDE OBSTRUCTION
VEHICLE DETECTOR
OUTSIDE OBSTRUCTION
VEHICLE DETECTOR
SHADOW/RESET
VEHICLE DETECTOR
EDGE SENSOR
PHOTO EYE POWER
24 VOLTS COMMON
PHOTO EYE POWER
DO NOT USE
PHOTO EYE
OPEN DIRECTION
DO NOT USE
PHOTO EYE
CLOSE DIRECTION
DO NOT USE
CHARGER
AC LOSS
LOCK INTERLOCK
EMERG CLOSE
FIRE DEPT OPEN
2
3
4
5
6
7
8
9
10
11
12
14
15
16
17
18
19
20
21
22
23
24
Smart Touch Controller
LIMIT DUAL GATE
RADIO OPTIONS
DRIVE
POWER
RS485
MOTOR USER 1
USER 2
USER 3
VEHICLE DETECTORVEHICLE DETECTORVEHICLE DETECTOR
STOP/BUZZER
FREE
EXIT
INSIDE
OBSTR
OUTSIDE
OBSTR
SHADOW
RESET
WIEGAND
HySecurity
COM
NO
MX000585
VERSION
S/N
RS232
DISPLAY
COM COMA B
RPM
COMOPEN EDGE+24V +24V
STAT US
LED
24V
A
C A
cce
s
s
or
y powe
r
+
24
V
D
C
Power Connector
Power Module
C
O
MM
ON
Emergency Fast
Close Device
(Actuator)
To Next Page
