1. As shown in the wire diagram on page 68, connect a shielded communications cable to the DUAL
GATE inputs in each operator. The inputs are located near the base of the Smart Touch Controller. Be sure
to connect the wires in pairs to the same terminal ports (A-A, B-B, COM-COM) on both operators.
2. Attach a ring terminal to the shield wire and connect it to
the Smart Touch Controller’s convenient ground screw.
NOTE: Connect the ground shield wire to only one operator,
not both. Use only 18-20 gauge twisted and shielded triple wire.
Sequenced gates are very similar to dual gates (interlocked pair)
in their Power, Software, and Accessory Requirements. To review
the installation site requirements, refer to page 67.

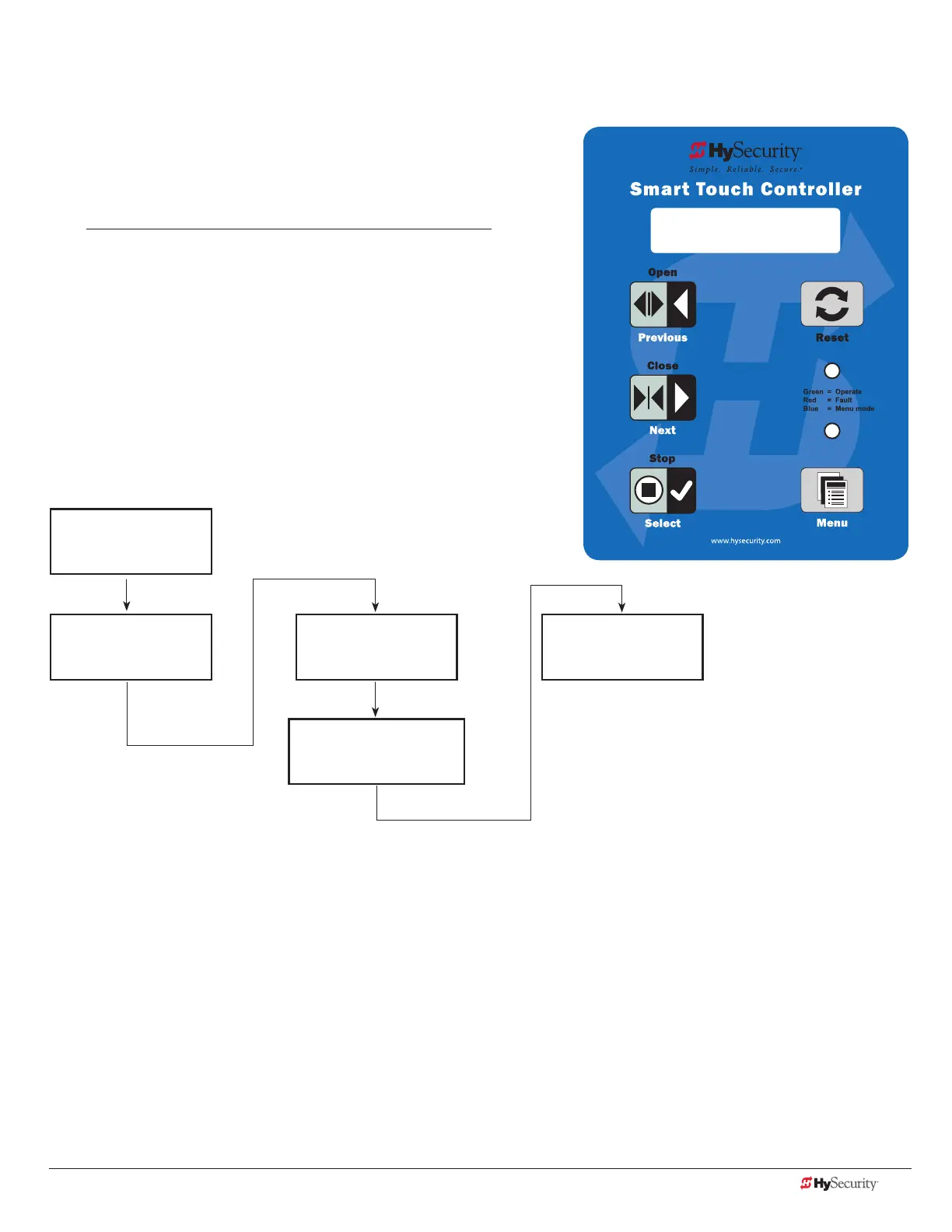

SG 0
SEQUENTIAL GATE
Status Display
User Menu Installer Menu
Sequence Gate
Status Display
CT 0 or HC 1 FD 0
SG 0
Press Menu twice at
the gate status display.
To access the Installer Menu,
press and hold Reset & Open,
and then release them.
Press Next until “SG”
characters appear.
Press Select so “SG” characters blink.
Press Next to change the display:
SG 1 = Sequenced Gate #1 conguration
SG 2 = Sequenced Gate #2 conguration
NOTE: Set both operators on the site to
the same number. Refer to the site designs
on the following pages.
Press Select again and a gate status
display appears indicating the sequenced
gate entry had been accepted.
To Next Page
