Maximum torque (Nm)
Hex size (mm) Hex size (inch) Normal Break
46 1 3/4 20,400 22,440
1 7/8 25,160 27,608
50 30,600 33,592
55 43,520 47,736
Maximum torque (ft.lbs.)
Hex size (mm) Hex size (inch) Normal Break
14 1/2 351 382
17 5/8 688 753
19 3/4 1,190 1,305
22 1,845 2,048
7/8 1,887 2,072
24 2,177 2,657
1 2,821 3,111
27 2,952 3,542
1 1/8 4,015 4,416
32 1 1/4 5,520 6,122
36 1 3/8 7,327 8,029
1 1/2 9,535 10,438
41 1 5/8 12,044 13,249
46 1 3/4 15,055 16,561
1 7/8 18,568 20,375
50 22,583 24,791
55 32,118 35,229
1 ft.lbs. = 1.356 Nm
1 Nm = 0.738 ft.lbs.
Note: If the area of the hex drive is smaller
than the square drive, HYTORC will dis-
claim any liability for broken hex drives or
hex sockets. These male hex sockets are
excluded from warranty claims:
• 1/2” x 17 mm (11/16") and smaller
• 3/4” x 22 mm (7/8”) and smaller
• 1” x 27 mm (1 1/8") and smaller
• 1 1/2” x 46 mm (1 5/6”) and smaller
• 2 1/2” x 70 mm (2 1/2”) and smaller
Extra shear forces and bending forces
caused by an imperfect reaction level
and/or a short reaction distance will lower
the specified torque values in the table.

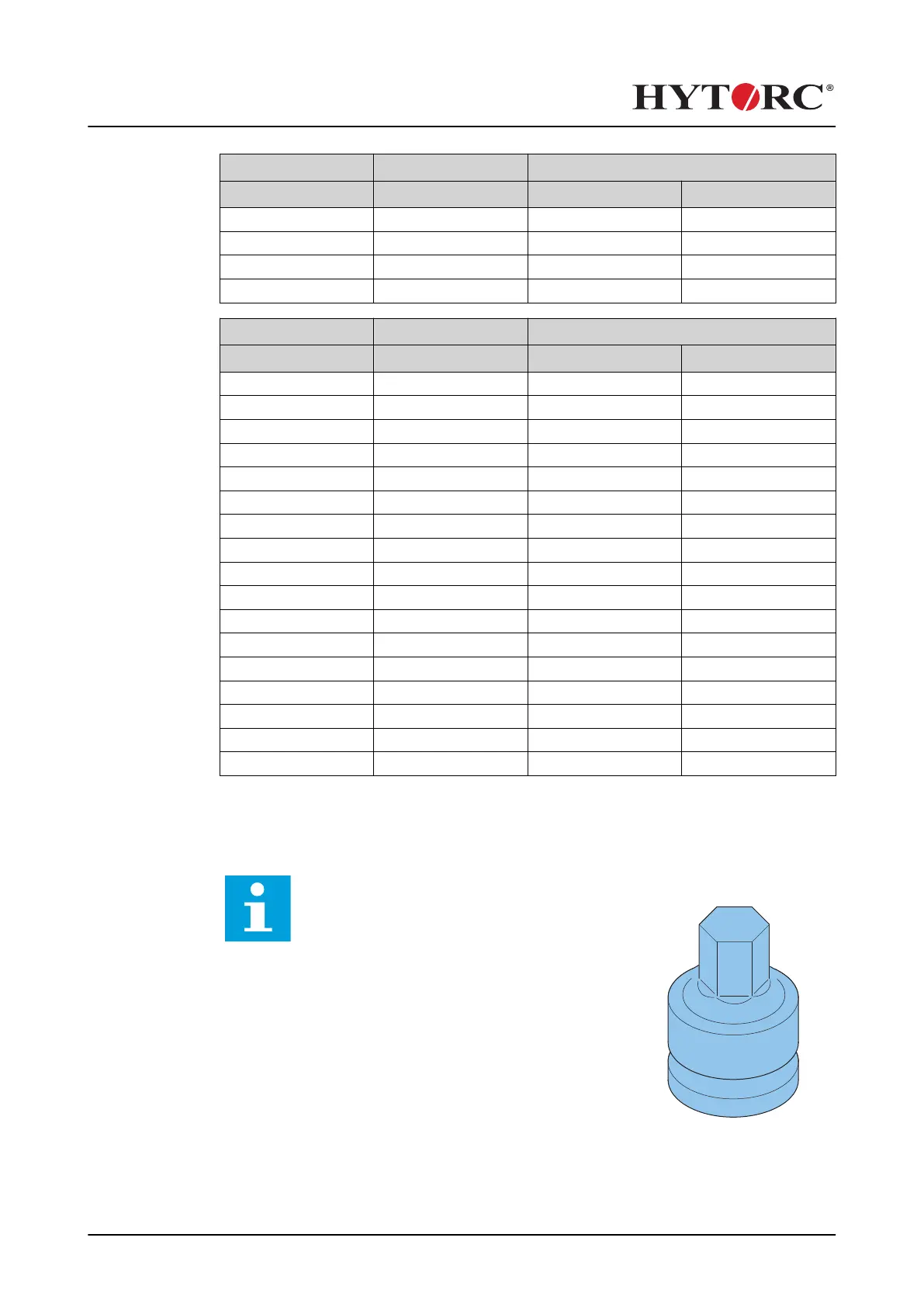

• Male hex socket
Technical data
46 47 - 001 -
