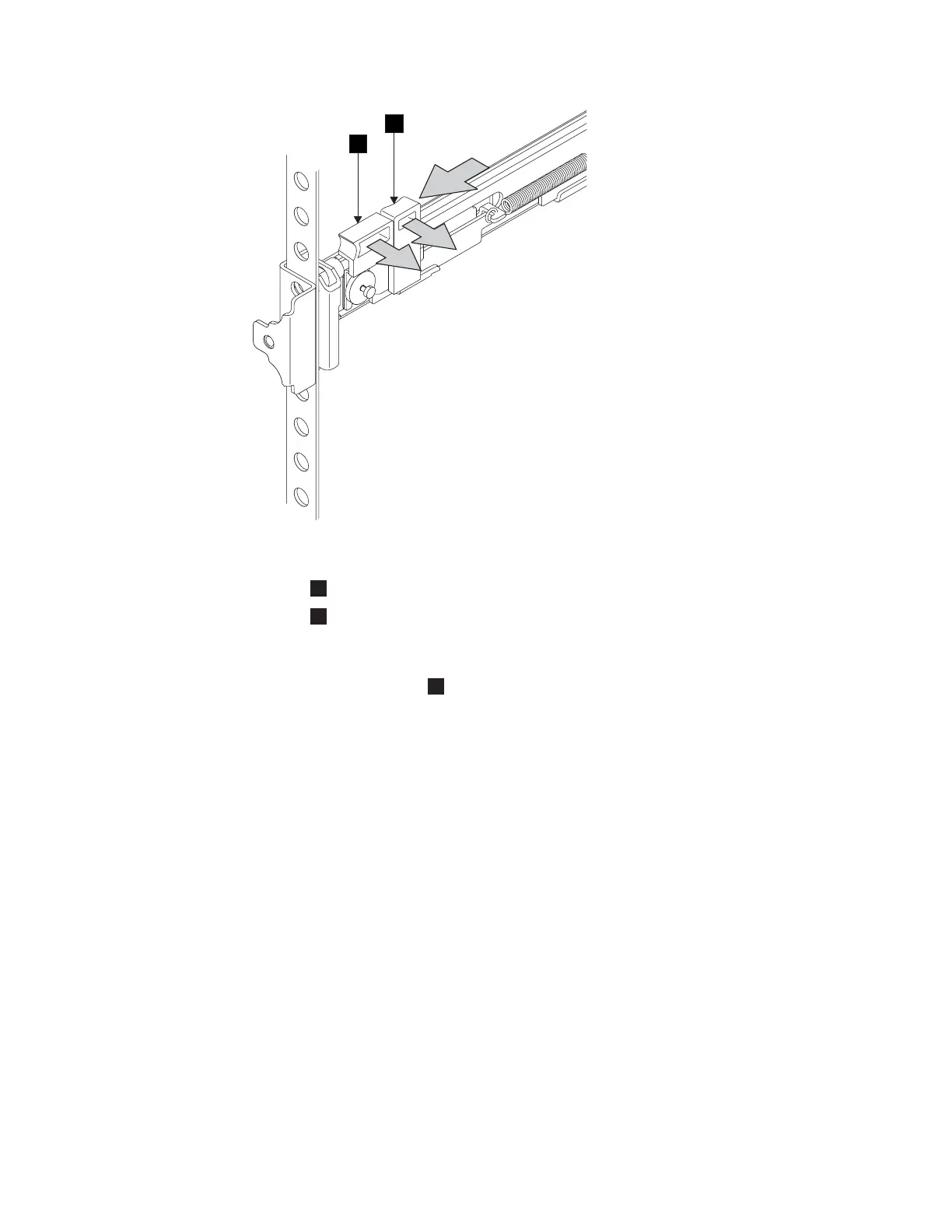

1
Latch-lever
2
Latch-lock
9. Push the back rail bracket toward the rear of the rack and align the locating
pins with the rack-mounting flange.
10. Push the latch lock
2
away from the rail to release the carrier. The latch-lock
carrier slides toward the rear of the rack, and the locating pins project through
the holes that are in the rear flange and in the rear rail bracket.
Important: Ensure that the locating pins are fully extended through the rear
rail bracket.
11. On the rear of each rail, press the blue release tab and slide the shipping
bracket off the slide rail. Store the shipping bracket for further use.
You must perform this procedure for both rails.
Installing the SAN Volume Controller 2145-4F2 in a rack
After installing the support rails, you can install the SAN Volume Controller
2145-4F2 in the rack.
CAUTION:
To avoid any hazard from the rack tipping forward when devices are installed,
observe all safety precautions for the rack into which you are installing the
device.
Perform the following steps to install the SAN Volume Controller 2145-4F2 node in
the rack:
1. Stand at the front of the rack and place the back of the node onto the support
rails, as low in the rack as possible.
1
2
Figure 95. Closing the latch-lock carrier assembly
132 IBM System Storage SAN Volume Controller: Hardware Installation Guide
