516
IBM eX5 Implementati
on Guide

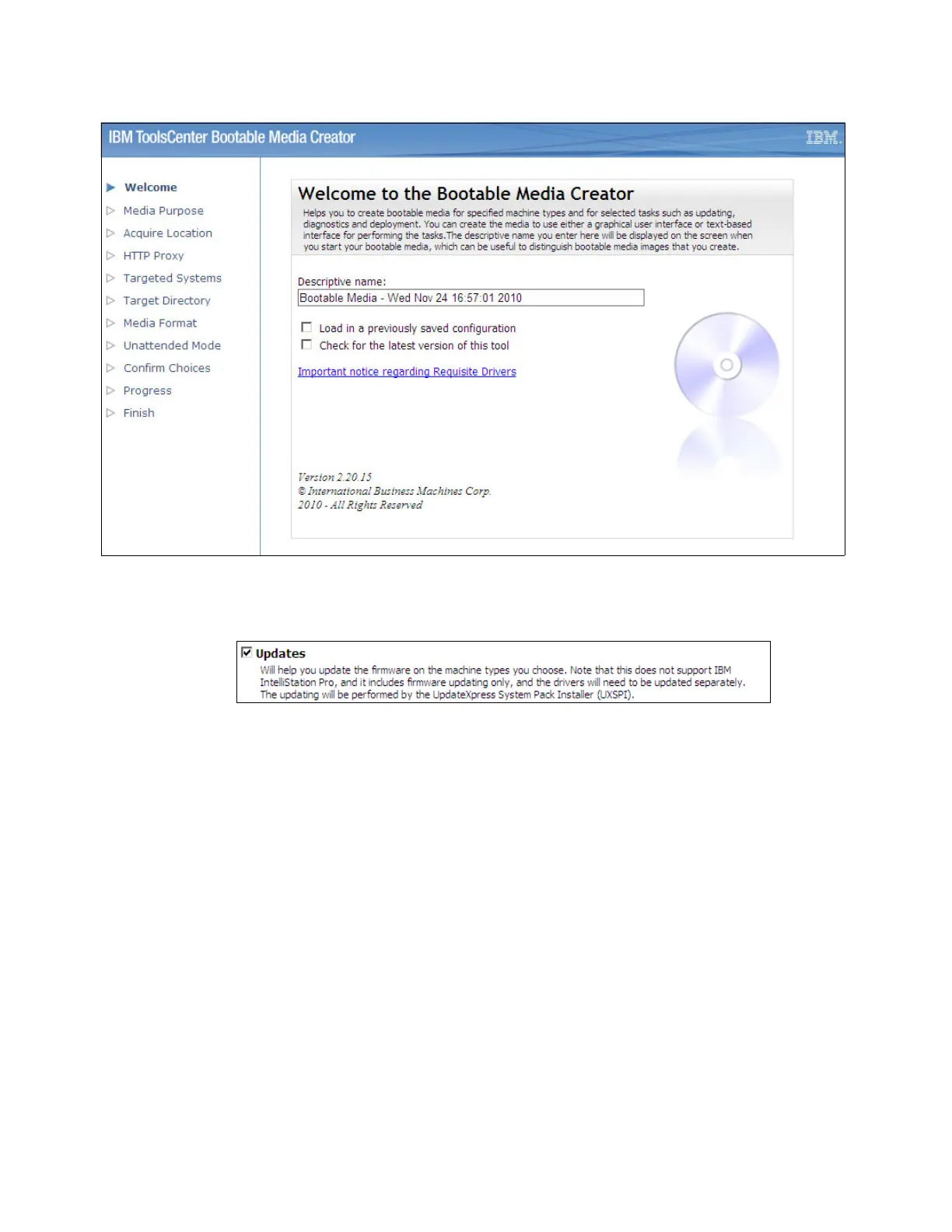

Figure 9-73 Welcome panel
6.
Check
Updates
and click
Ne
xt
, as shown in Figure
9-
74.
Figure 9-74 Selected update task
7.
Select
Latest av
ailable individual updates
an
d click
Ne
xt
, as shown in Fig
ure
9-75 on
page
517.
