Adequate clearance Stand-alone configuration -- located on or below a table:
Back - 56 cm (22 in.) for cooling and service
Front - 86 cm (34 in.) for operator access
Sides - 56 cm (22 in.) for removal of the external cover
Rack-mounted configuration
Back - Allow adequate room for service access, at lease 91 cm (36 in.)
Front - 86 cm (34 in.) for operator access
Height - For ease of use and optimal safety, the top of the library should be mounted
approximately 120 cm (48 in.) above the floor
Library Views
The following illustrations and descriptions review the front and back panel views
of the library.
Front panel view

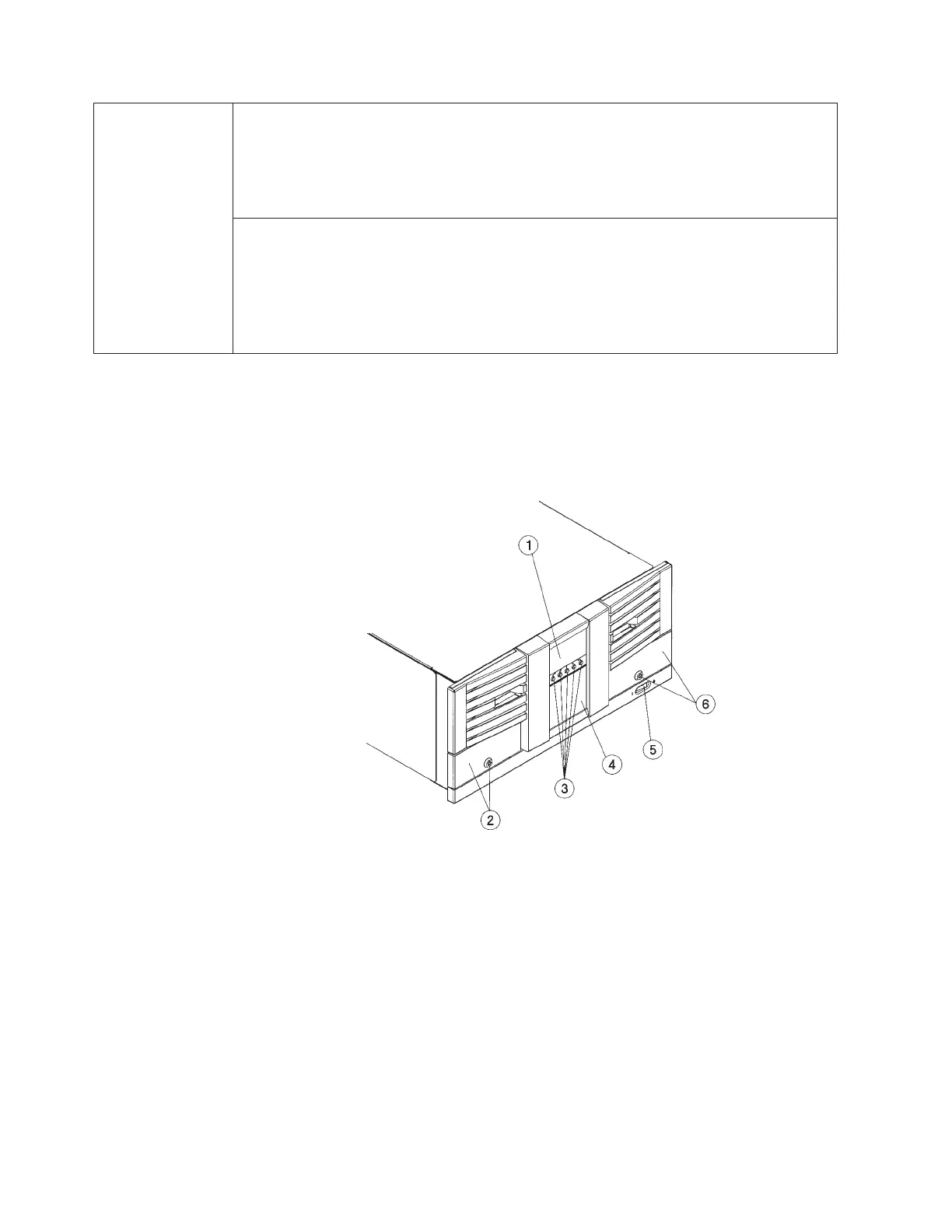

The components shown in the previous illustration include the following.
«1¬Front panel display
«2¬Door 1 with lock (slots 1-10 with slot 1 at the front)
«3¬Soft keys
«4¬Viewing window
«5¬Power (stand-by) switch
«6¬Door 2 with lock (slots 20-11 with slot 20 at the front)
2 LTO Library: User’s Guide
