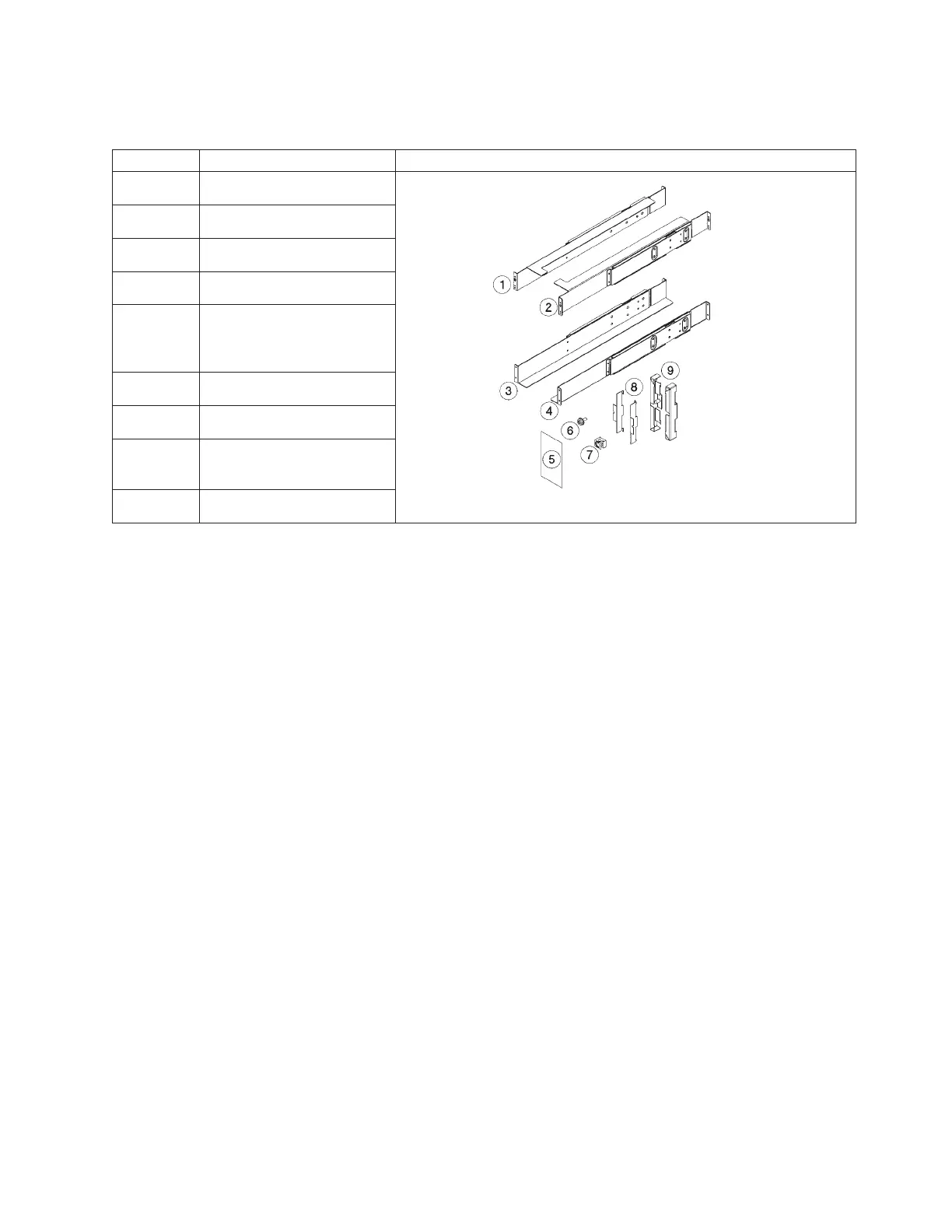

The following table show parts that are included and that are needed to install the
library in the rack.
Number Part and quantity
1 Upper left rail (1)
2 Upper right rail (1)
3 Lower left rail (1)
4 Lower right rail (1)
5 Clip nut template (3
packaged together; one per
model)
6 10-32 screws (20)
7 10-32 clip nuts (20)
8 Flush-mount trim brackets
(2)
9 2/20 trim brackets (2)
Additional pre-installation recommendations
Before installing the rack library, considering the following:
v Reread the appropriate option installation section of your rack manual before
following the library install instructions in this manual.
v Install the library at a level that is easy to reach for operation and service.
Chapter 1. Installation 9
