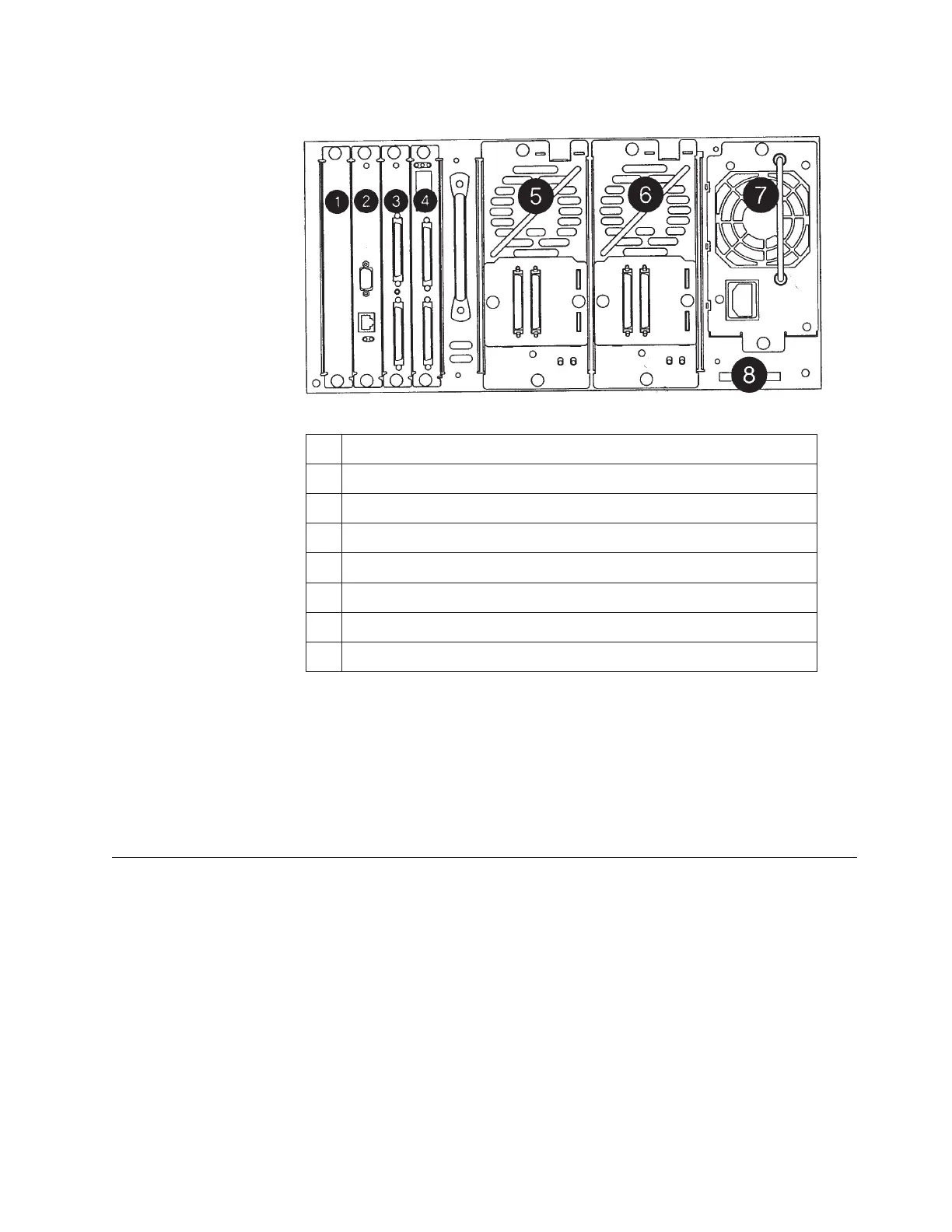

Back panel view
1
2
3
4
5
6
7
8
Vacant slot
Remote management card
Library controller card
Fibre channel card (if present, otherwise vacant)
Drive module 1
Drive module 2
Power supply
Product information labels
The components shown in the previous illustration include the following.
«1¬Vacant slot
«2¬Remote management card
«3¬Library controller card
«4¬Slot for future Fibre channel card installation
«5¬Drive module 1
«6¬Drive module 2 (optional)
Product features
The library provides the following features:
v Automatic tape operations
v Library status display using the operator control panel (OCP), including:
– Tape drive status and activity
– Tape drive error status
– Magazine slot status
– Loaded tape-cartridge conditions
v Manual selection of cartridges to be loaded into the tape drive
v SCSI ID selection using the OCP
v Library and tape drive microcode updates using the SCSI bus or RMC card
v Display of device microcode and hardware revision numbers
Chapter 1. Installation 3
