Chapter 7. Advanced maintenance, troubleshooting, and diagnostics 445
When you click the host name in the left pane, three tabs are displayed in the right pane
(known as the Tab pane), as shown in Figure 7-79 on page 444. They are:
Topology: Contains a basic view of the topology of the currently connected server.
Information: Contains basic information about the currently connected server, agent
version running on the connected host, and OS version.
Security: Contains security settings for the connected agent. This lets you set host
security and application security.
– Host access defines the authorized user with administrator or root privileges.
– Application access specifies the password for changing settings on the HBAs (for
firmware or NVSRAM download or BIOS settings), as shown in Figure 7-80.

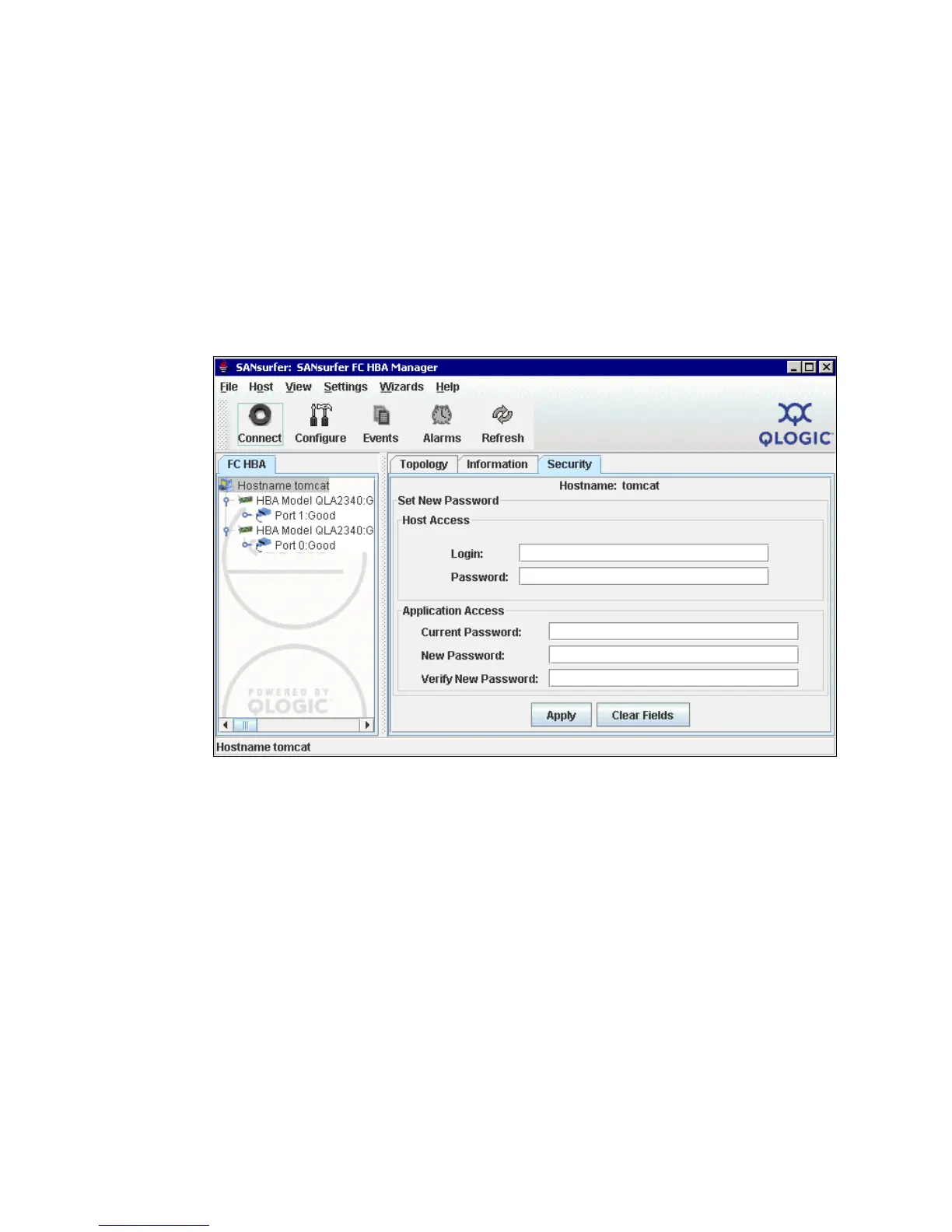

Figure 7-80 Qlogic SANsurfer Security tab
Viewing event and alarm logs
The Qlogic SANsurfer records an extensive amount of information to the event and alarm
logs. The logs are saved as text files (alarms.txt and events.txt) in the folder where Qlogic
SANsurfer is installed. Qlogic SANsurfer can parse and view these logs in a window. To view
these logs, click Event Log or Alarm Log from the view menu, or click the appropriate button
on the button bar.
