446 IBM Midrange System Storage Hardware Guide
Using the Qlogic SANsurfer tools
When you click one of the host bus adapter ports in the HBA tree pane, the tab pane displays
eight tabs, as shown in Figure 7-81.

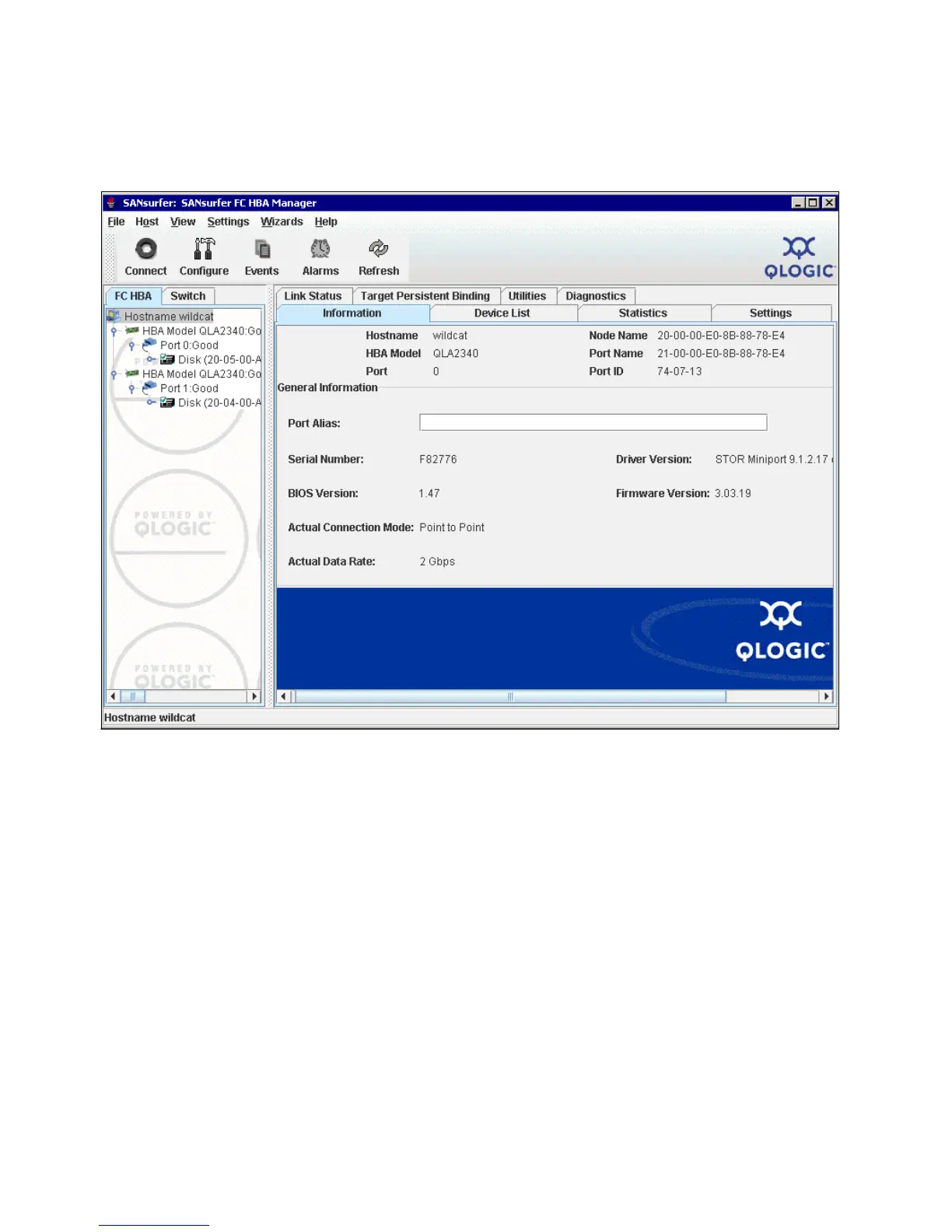

Figure 7-81 Qlogic SANsurfer FC HBA Manager view
The Qlogic SANsurfer has several tabs for the HBAs:
Information: Displays general information about the server and Host Bus Adapters, such
as worldwide name, BIOS, NVRAM, and driver version.
Device List: Displays the devices currently available to the host bus adapter.
Statistics: Displays a graph of the performance and errors on the host bus adapters over a
period of time.
Settings: Displays the current settings and allows you to make remote configuration
changes to the NVSRAM of the adapters. All changes require a reboot of the server.
Link Status: Displays link information for the devices attached to an adapter connected to
a host.
Target Persistent Binding: Allows you to bind a device to a specific LUN.
Utilities: Allows you to update the flash memory and NVSRAM remotely.
Diagnostics: Allows you to run diagnostic tests remotely.
