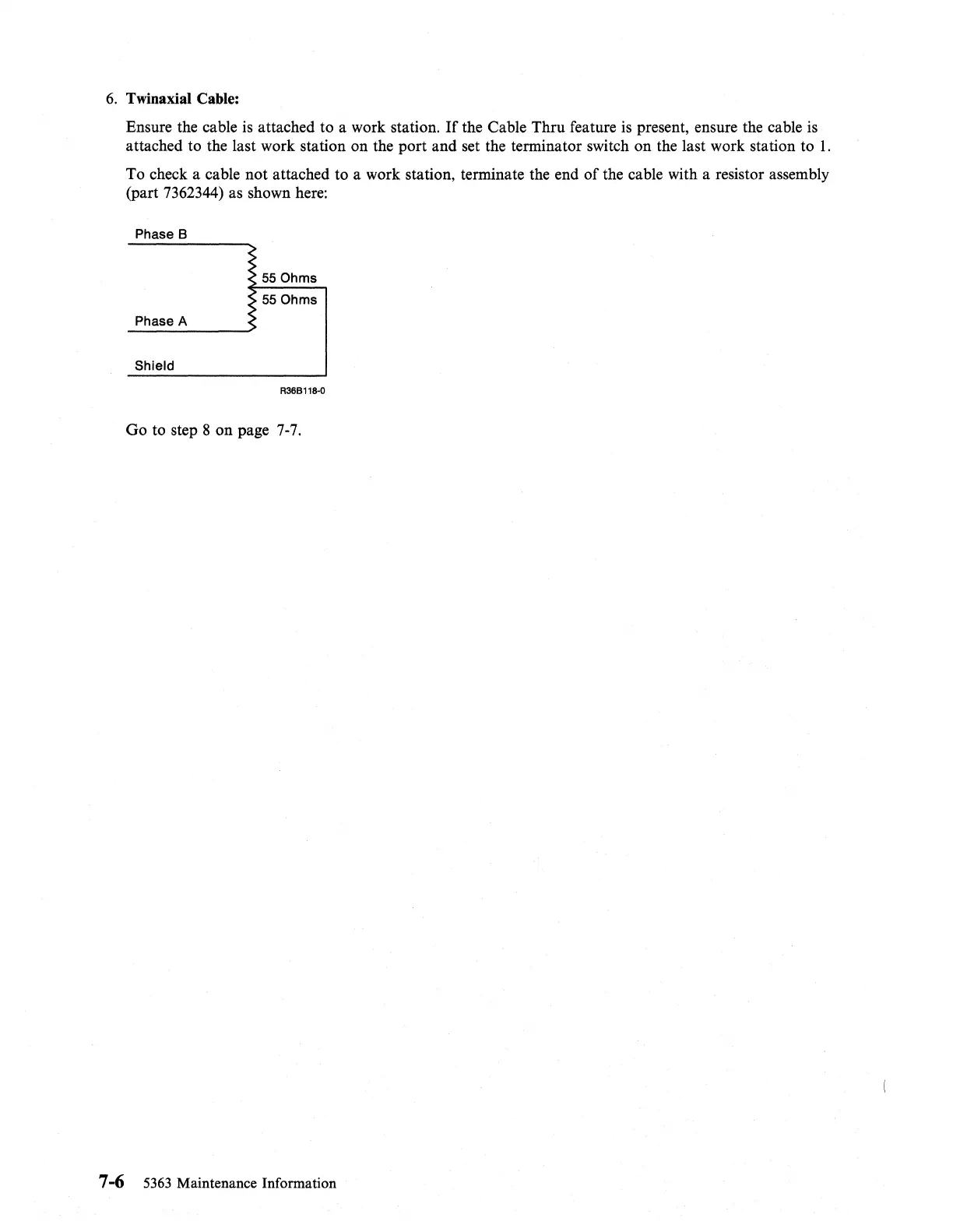

6.
Twinaxial Cable:
Ensure the cable
is
attached to a work station.
If
the Cable Thru feature
is
present, ensure the cable
is
attached to the last work station on the port and set the terminator switch on the last work station to
1.
To check a cable not attached to a work station, terminate the end
of
the cable with a resistor assembly
(part 7362344) as shown here:
Phase 8
Phase
A
Shield
>
~
55 Ohms
55 Ohms
;
R36B118-0
Go to step 8 on page
7-7.
7-6
5363
Maintenance Information
To Next Page
