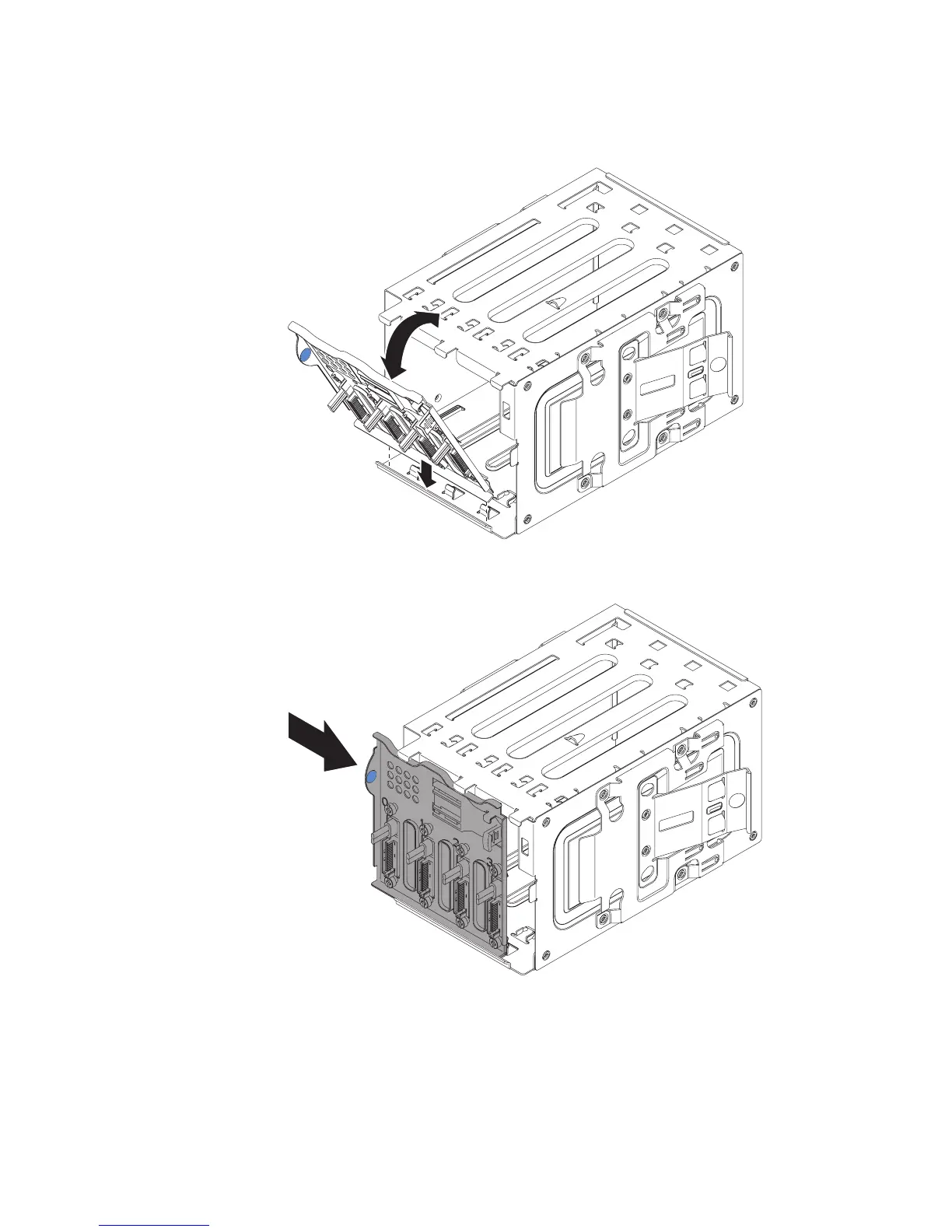

2. Align the bottom edge of the simple-swap backplate between the tabs and the
bottom edge of the drive cage, and then rotate the simple-swap backplate
toward the drive cage.
3. Make sure the tabs on the simple-swap backplate are on the left of the upper
drive cage tabs, and then push the backplate till the end.
4. Slide the disk drive cage into the opening in the front of the server till half in.
220 IBM System x3100 M4 Type 2582: Problem Determination and Service Guide

IBM System x3100 M4 Specifications

General

Memory	Up to 32 GB DDR3 ECC UDIMM
Memory Slots	4 DIMM slots
Form Factor	Tower
Chipset	Intel C202
Processor Sockets	1
Processor	Intel Xeon E3-1200 v2 series, Intel Pentium series, Intel Celeron series
Storage	Up to 4x 3.5-inch
Power Supply	350W
Hard Drive Bays	4 x 3.5"
RAID Support	RAID 0, 1, 10
Network Interface	Gigabit Ethernet
Expansion Slots	1 x PCIe 3.0 x16, 1 x PCIe 2.0 x4
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server
