IBM System x3100 M4 Problem Determination And Service Guide

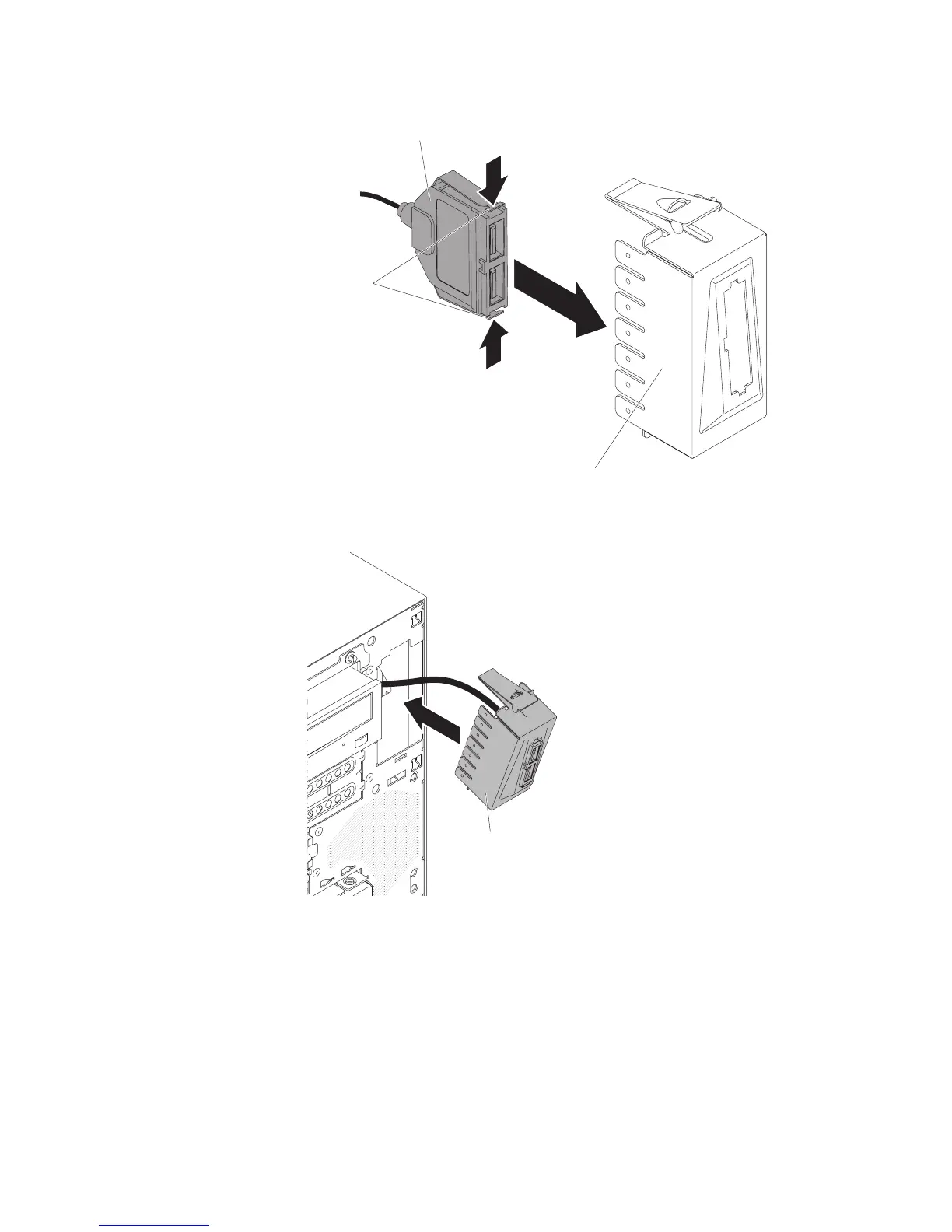

Spring clips
Front USB connector
assembly
Front USB housing
8. Place the bottom edge of the housing into the bottom of the opening in the
chassis; then, tilt the top of the housing into position until it clicks into place.
Front USB housing
9. Carefully turn the server on its side so that it is lying flat, with the system
board facing up.
Attention: Do not allow the server to fall over.
10. Reroute and connect the front USB cable to the front USB connector on the
system board (see “System-board internal connectors” on page 17 for the
location of the front USB connector).
Chapter 5. Removing and replacing server components 235

IBM System x3100 M4 Specifications

General

Memory	Up to 32 GB DDR3 ECC UDIMM
Memory Slots	4 DIMM slots
Form Factor	Tower
Chipset	Intel C202
Processor Sockets	1
Processor	Intel Xeon E3-1200 v2 series, Intel Pentium series, Intel Celeron series
Storage	Up to 4x 3.5-inch
Power Supply	350W
Hard Drive Bays	4 x 3.5"
RAID Support	RAID 0, 1, 10
Network Interface	Gigabit Ethernet
Expansion Slots	1 x PCIe 3.0 x16, 1 x PCIe 2.0 x4
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server
