c. Press the interposer card down onto the interposer card connector so that
the interposer card is secured.
d. From the other side of the SAS controller, insert and tighten the screw to
secure the interposer card to the SAS controller.
21. Remove the expansion-slot bracket that is screwed to the vertical wall above
the power supply and install the expansion-slot bracket on the SAS controller:

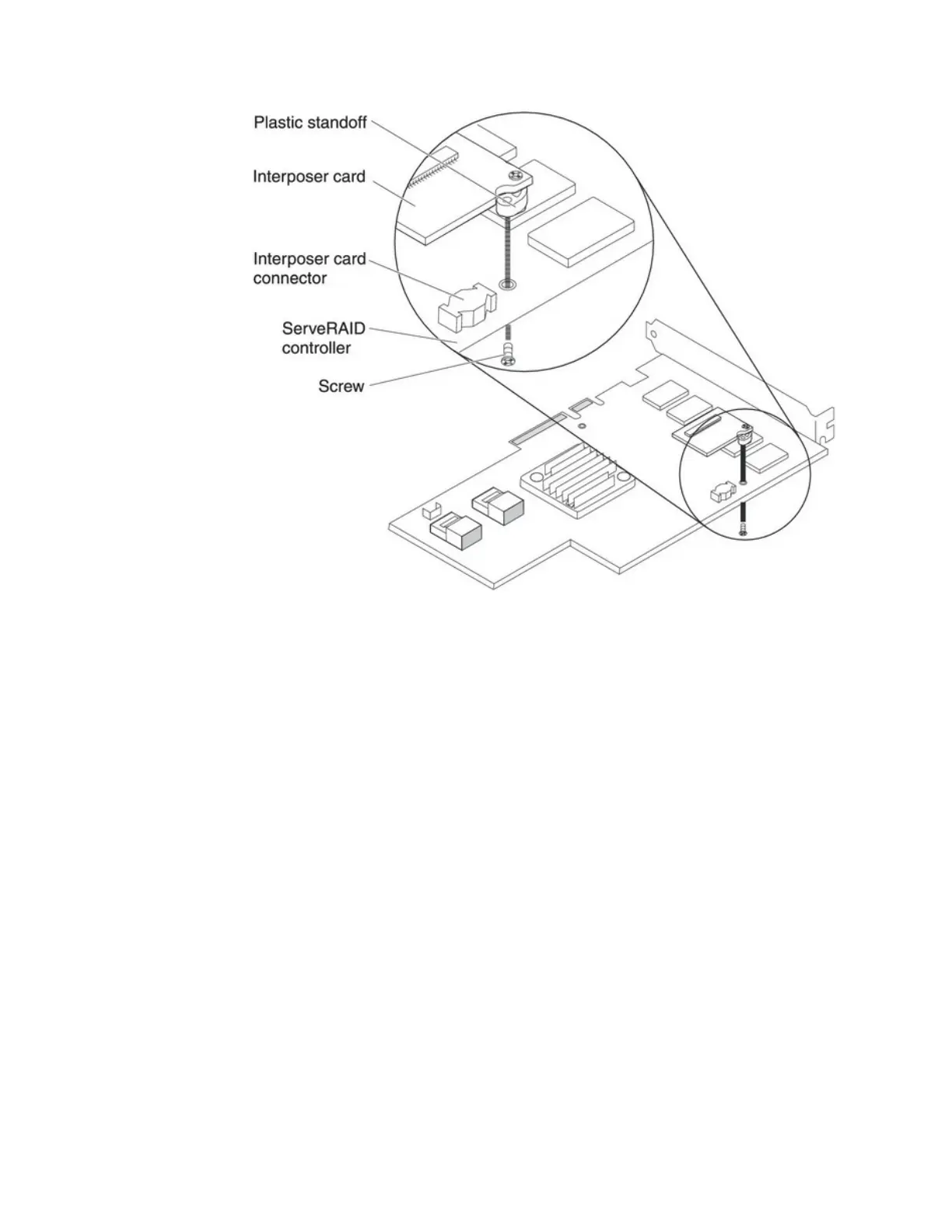

Figure 76. Interposer card installation
82 System x3650 M3 Types 4255, 7945, and 7949: Installation and User’s Guide
