PANEL DESCRIPTION
2

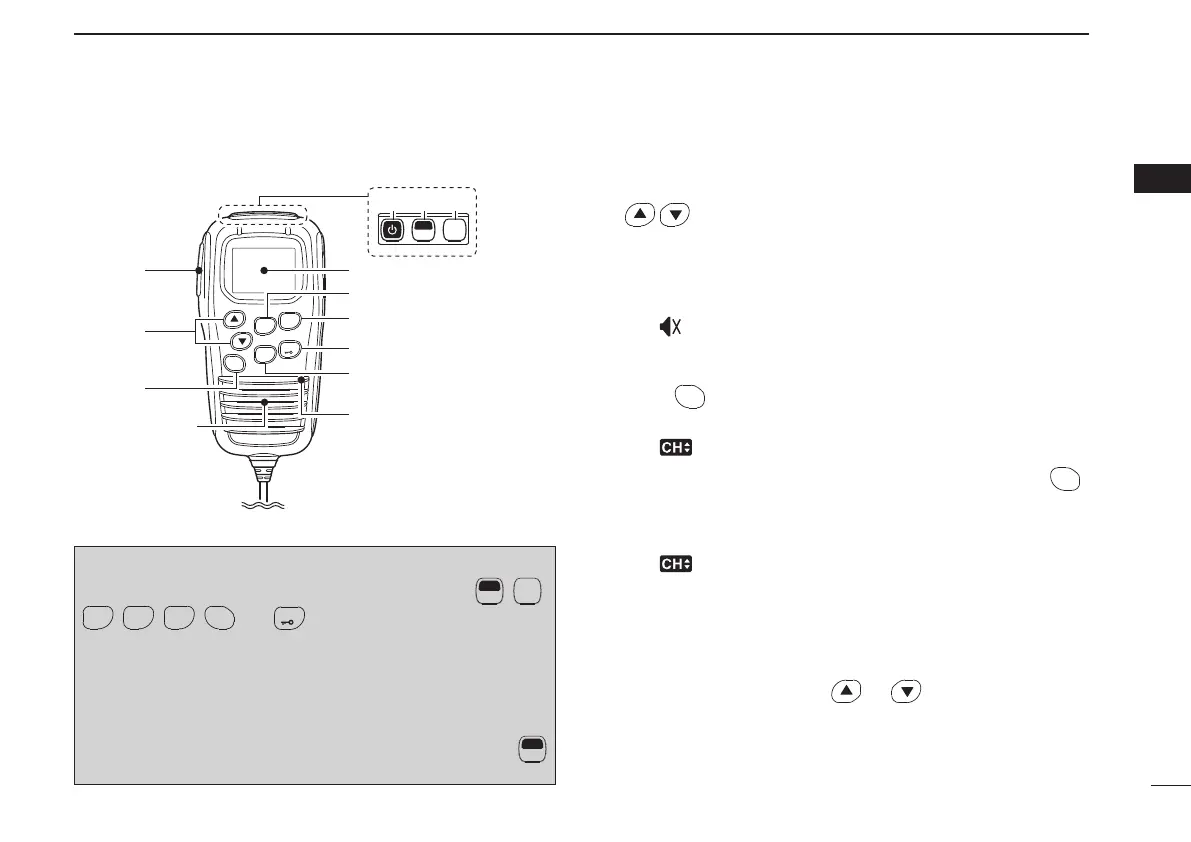

■ HM-182 front and top panels
q PTT SWITCH [PTT] (p. 16)
Push and hold to transmit; release to receive.
w VOLUME CONTROL/CH UP/CH DOWN KEYS ([VOL])
/
Push to adjust the audio level, to select an operating
channel, set mode setting, etc. (pgs. 14, 19, 40)
[Volume adjust/set mode setting]
➥ Push to adjust the audio level (from 0 to 32).
• “ ” appears when the audio level is set to 0 (while muted).
➥ Push to select the set mode setting in the set mode.
[Channel selection]
Push
CH
SQL
, then push to select the operating channel.
(p. 14)
• “ ” appears when channel selection mode is selected.
e VOLUME/CHANNEL/SQUELCH SELECT KEY
CH
SQL
(Volume/Channel/Squelch select mode) (pgs. 14, 18)
➥ Push to toggle between volume and channel selection
mode.
• “ ” appears when channel selection mode is selected.
• If no key is pushed within 30 sec., channel selection mode
is cancelled.
(Squelch level select mode)
➥
Push and hold for 2 sec. to enter the squelch level set-
ting mode, then push
or to set the squelch
level. (p. 18)
PRIO
LOW
SCAN
O࡮G࡮P
CH
SET࡮P
RS
TAG
SQL
q
w
e
Speaker
Microphone
r
t
y
u
i
MONI
F
SET
TSQL
o!0 !1
Information: Up to four desired functions, one each for
Normal and Function mode, can be re-assigned to
F
SET
,
MONI
TSQL
,
SCAN
TAG
,
O࡮G࡮P
RS
,
PRIO
SET࡮P
,
CH
SQL
and
LOW
keys with the optional CS-440
CLONING SOFTWARE. (p. 12)
The default setting is used in this instruction manual, for
description.
N : Stands for Normal mode operation.
F : Stands for Function mode operation. (Push
F
SET
(Function) to enter Function mode.)
