ICT PRT-CTRL-DIN-IP - Lock Output Connection

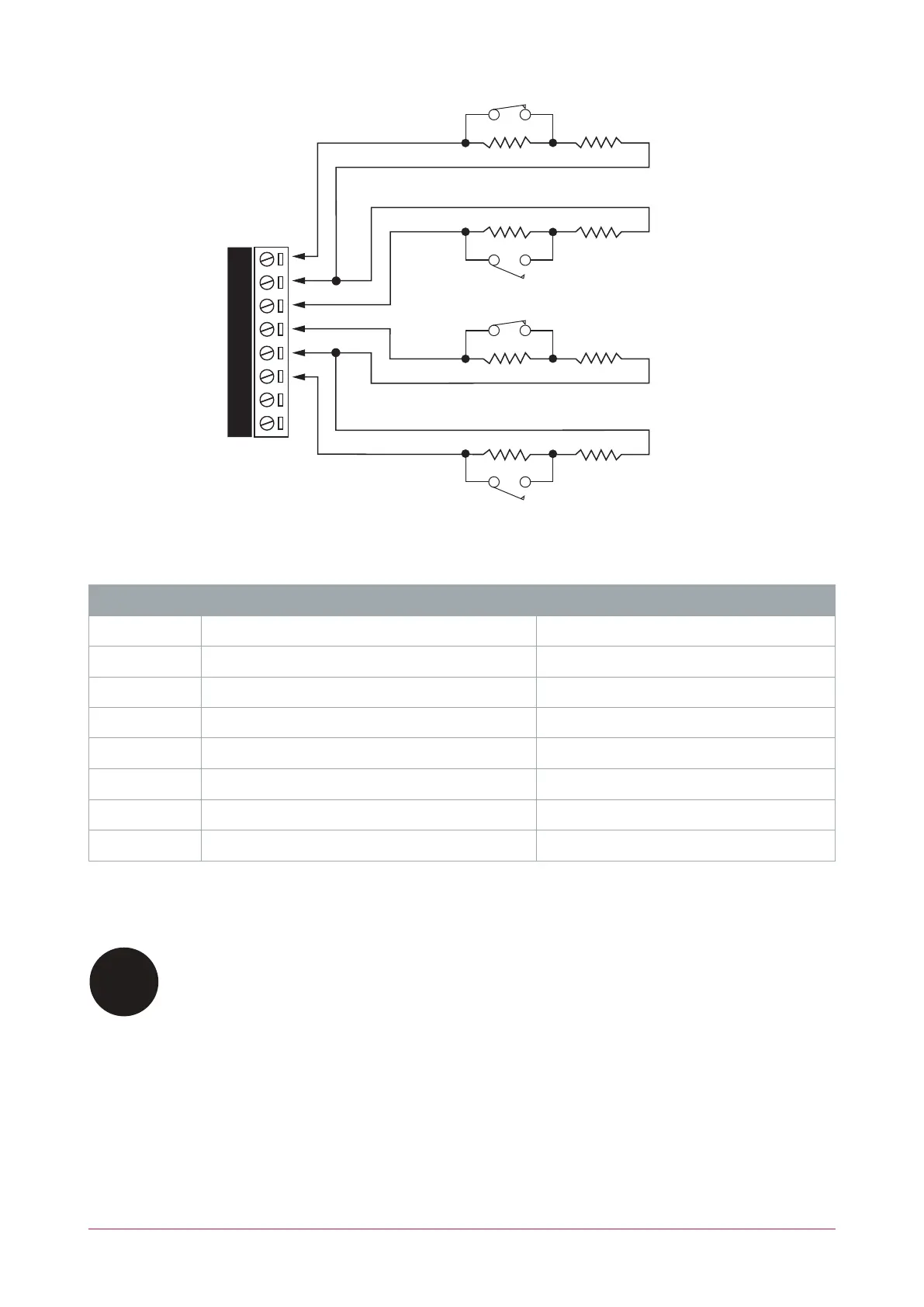

V+
V-Z4 V- Z3 Z2 V- Z1
N.C. Input Contact
N.C. Input Contact
N.O. Input Contact
N.O. Input Contact
1K
1K
1K
1K
1K
1K 1K
1K
Door Contact
Bond Sense
REN Input
REX Input
Inputs 1-4 and 5-8 can operate as either general purpose inputs or as onboard reader inputs. If used as general
purpose inputs, make sure that these inputs are not defined in the onboard reader set up.
Input Access Control Function Default Setting
Input 1 Door Contact, Port 1 Door Contact, Port 1
Input 2 REX Input, Port 1 REX Input, Port 1
Input 3 Bond Sense, Port 1 General Purpose Input
Input 4 REN Input, Port 1 General Purpose Input
Input 5 Door Contact, Port 2 Door Contact, Port 2
Input 6 REX input, Port 2 REX Input, Port 2
Input 7 Bond Sense, Port 2 General Purpose Input
Input 8 REN Input, Port 2 General Purpose Input
When connected the REX input can be programmed to operate regardless of the door contact state. The REX
input can also be programmed to recycle the door alarm time to prevent nuisance alarms when the door is held
open to permit longer entry.
P
UL
ULC
When inputs are configured as bond sense and/or general purpose inputs (access control and
burglar installations), remaining inputs cannot be used for fire.
Lock Output Connection
The controller provides a connection for an electric strike lock with full monitoring of the lock circuit for tamper
and over current/fuse blown conditions. The door lock monitoring can be disabled if it is not required.
The lock output is shared with the bell/siren function as shown in the diagram below. You can select another
output for the lock control (Relay 1 (CP001:03) or Relay 2 (CP001:04)) if the bell/siren function is required.
