ICT PRT-CTRL-DIN-IP - EOL Resistor Value Options; Duplex Inputs

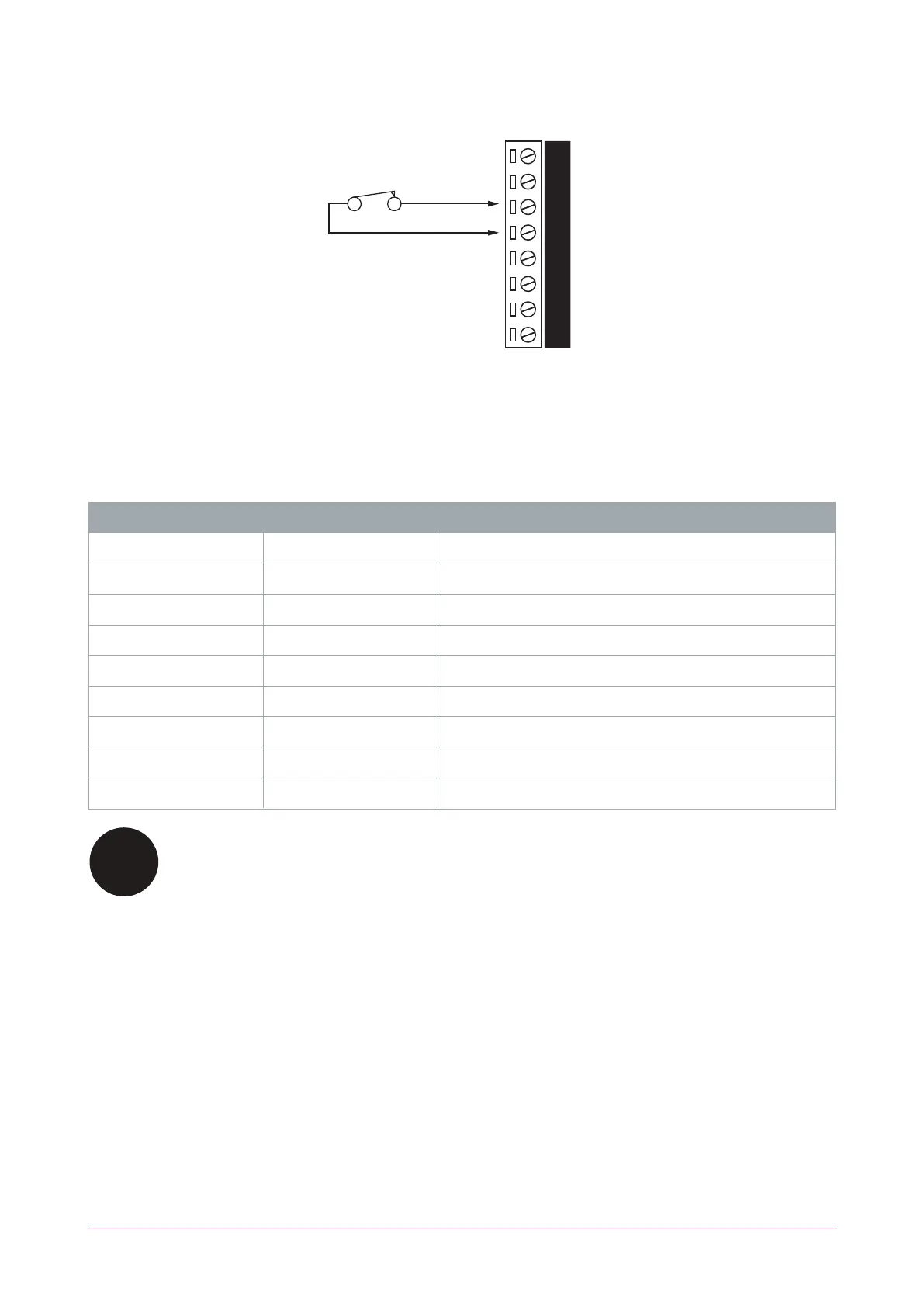

No EOL Resistor Input Configuration
N.C Input Contact
V+
V-Z4 V- Z3 Z2 V- Z1
EOL Resistor Value Options
When using the EOL resistor configuration, the EOL resistor option must be configured based on the site
requirements. Note these resistor options are supported on the controller but not all resistor options are
supported on all Protege field modules.
Value 1 Value 2 Monitored Status
No Resistor No Resistor Open, Closed
1k 1k Open, Closed, Tamper, Short
6k8 2k2 Open, Closed, Tamper, Short
10k 10k Open, Closed, Tamper, Short
2k2 2k2 Open, Closed, Tamper, Short
4k7 2k2 Open, Closed, Tamper, Short
4k7 4k7 Open, Closed, Tamper, Short
5k6 5k6 Open, Closed, Tamper, Short
N/O alarm 5k6 Open, Closed, Tamper
P
UL
ULC
The 5k6 Value 1 and Value 2 have not been evaluated by UL, cUL, ULC.
Duplex Inputs
The controller is able to support up to 16 inputs when duplex mode is enabled.
To enable this feature, check the Duplex inputs option in Sites | Controllers | Options.
In addition, you will need to manually add additional inputs with addresses 9-16 in Programming | Inputs.
PRT-CTRL-DIN | Protege GX DIN Rail Integrated System Controller | Installation Manual 27
