ICT PRT-CTRL-DIN-IP - Mechanical Layout

Mechanical Layout

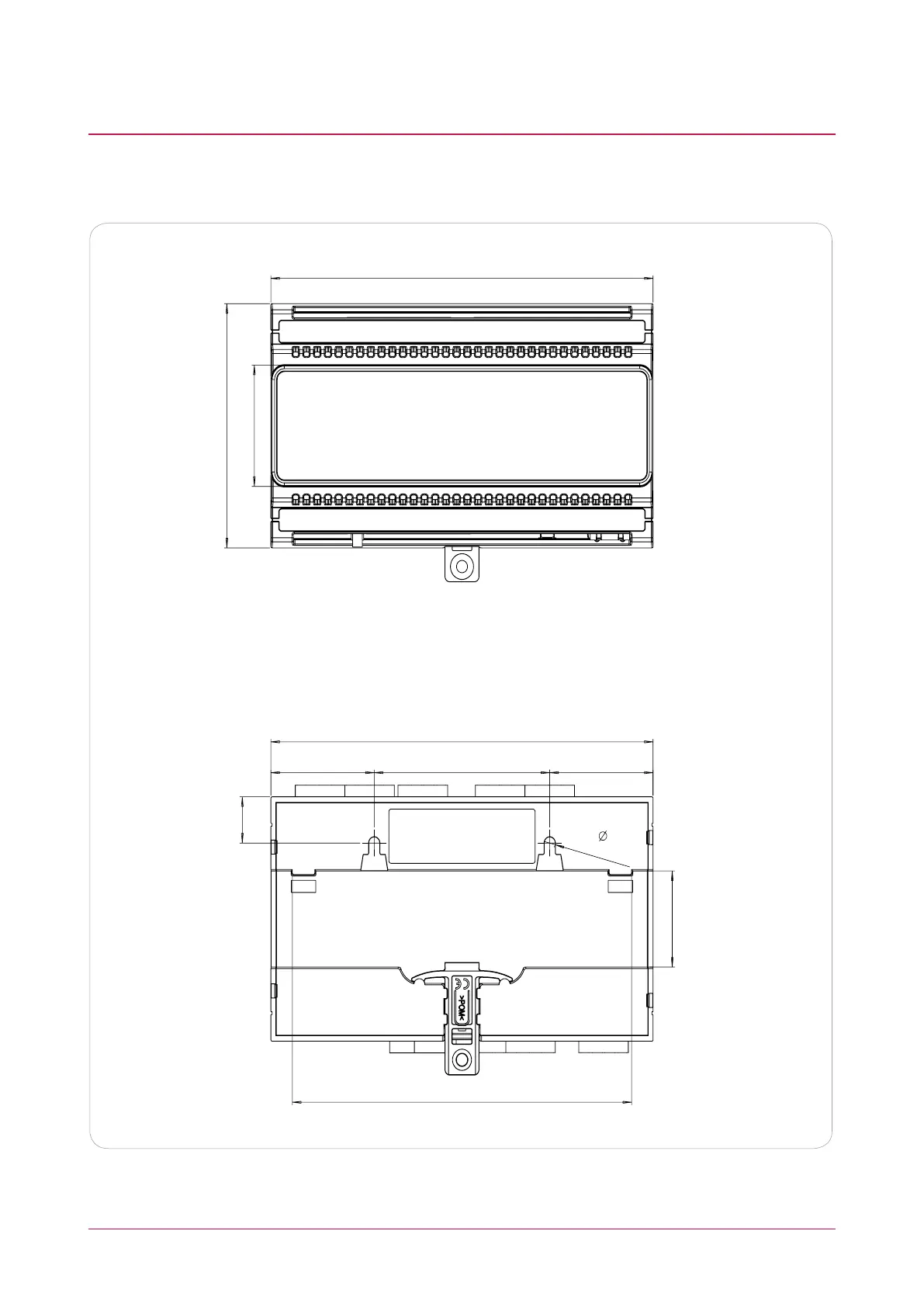

The mechanical layout below outlines the essential details needed to help ensure correct installation and
mounting. All measurements are shown in millimeters.
90.00
156.80
44.68
Front
139.18
72.00
(2x)
4.67
Screw Hole
17.03
42.40 42.40
156.80
35.40
Back
