ICT PRT-CTRL-DIN-IP - Relay Outputs; Reader Outputs

Relay Outputs

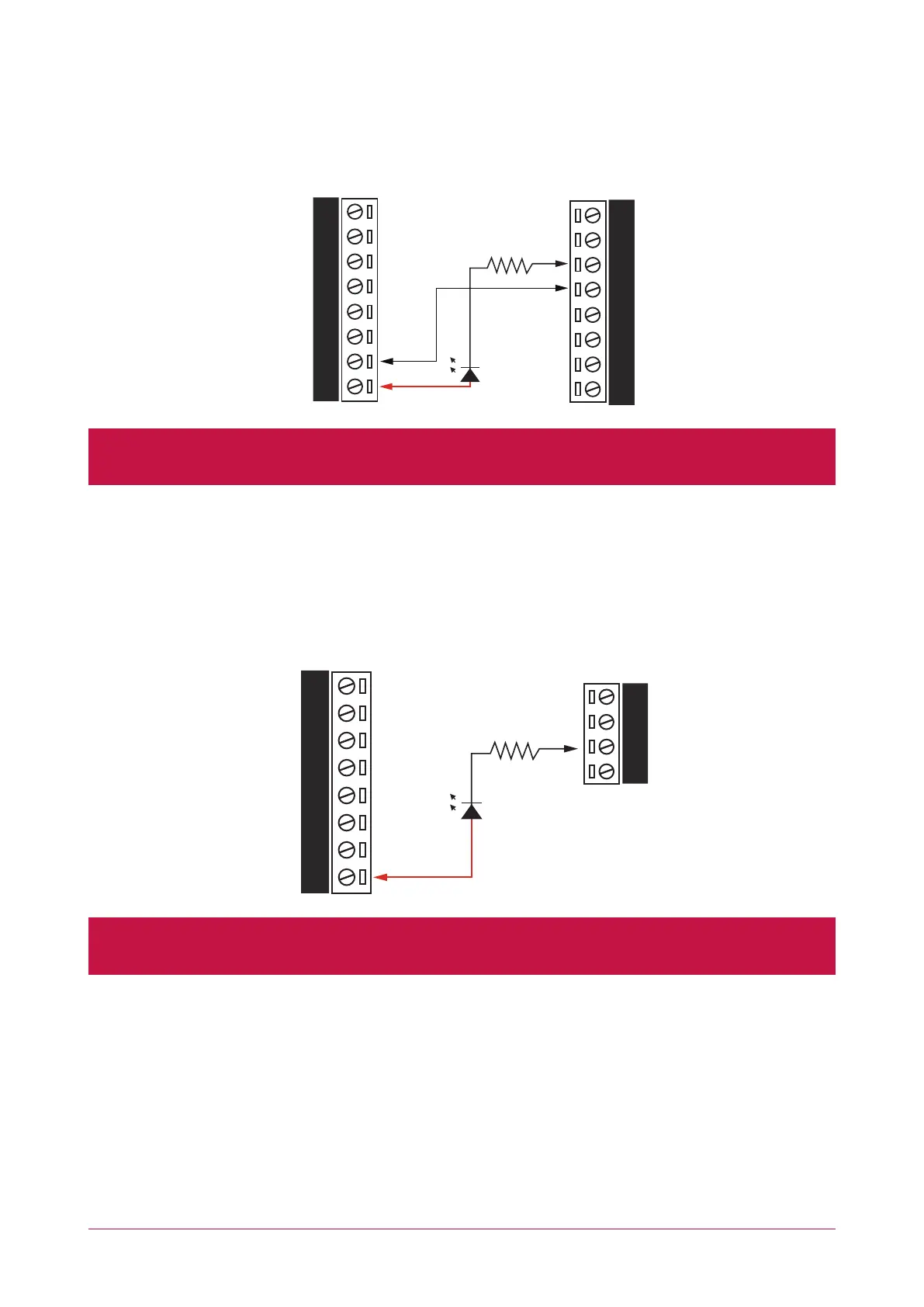

The relay outputs (CP001:03 and CP001:04) on the controller are Form C relays with normally open and normally
closed contacts. These outputs can be used to activate larger relays, sounders and lights, etc.
LED
V+
V-Z4 V- Z3 Z2 V- Z1
1K5 OHM
B- NO
B+
NC NO COM
NC
COM
Warning: The relay outputs can switch to a maximum capacity of 7A. Exceeding this amount will damage the
output.
Reader Outputs
If readers are not attached to the reader ports then the Reader 1 L1 and BZ, and the Reader 2 L1 and BZ outputs can
be used as general purpose outputs. These can be controlled by assigning the RDxxxGreen R1, RDxxx Beeper R1,
RDxxxGreen R2 and RDxxx Beeper R2 outputs of whichever reader module has been configured as the onboard
reader module. These are open drain outputs which switch to the V- reference.
BZ L1 D1 DO
LED
V+
V-Z4 V- Z3 Z2 V- Z1
1K5 OHM
Warning: The reader outputs can switch to a maximum capacity of 50mA. Exceeding this amount will damage
the output.
PRT-CTRL-DIN | Protege GX DIN Rail Integrated System Controller | Installation Manual 32
