IDEC FT1A Series User Manual

6: HMI F UNCTION
6-4 S MART AXIS P RO /L ITE U SER ' S M ANUAL FT9Y-B1378

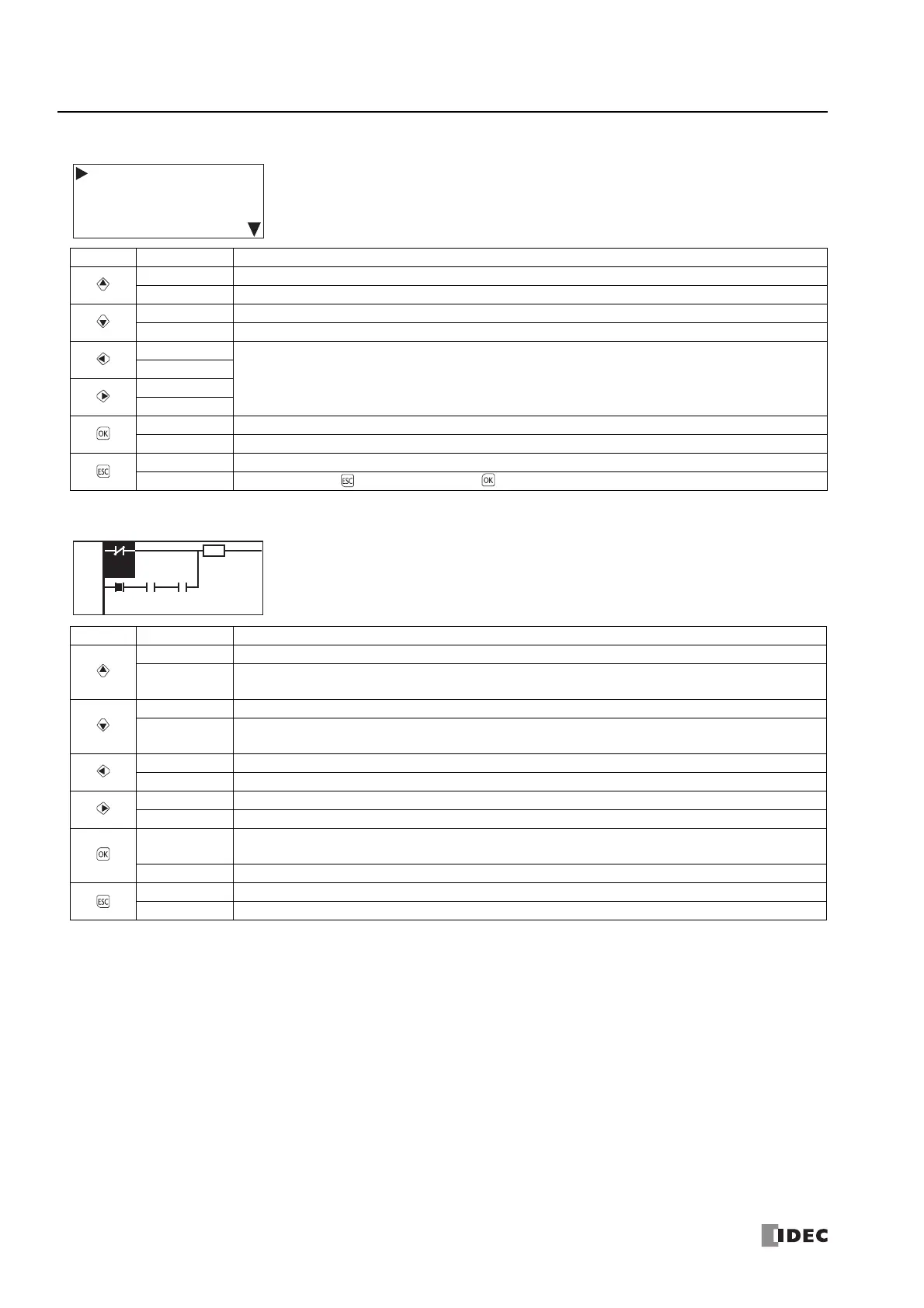

List of Button Operations on the System Menu Screen
List of Button Operations on the Ladder Monitor Screen
Switch Press/Hold Basic operation
Press Moves the cursor up one line. If the cursor is at the start of the item list, nothing happens.
Press and hold Repeats the press operation.
Press Moves the cursor down one item. If the cursor is at the end of the item list, nothing happens.
Press and hold Repeats the press operation.
Press
Nothing happens.
Press and hold
Press
Press and hold
Press Executes the function selected with the cursor (depending on the function, displays additional menus).
Press and hold Nothing happens.
Press Returns to the previous screen (the calling screen).
Press and hold While pressing the (ESC) button, press the (OK) button to return to the top screen of the system menu.
Switch Press/Hold Basic operation
Press Moves the cursor up one line. When the cursor is on the top line of the rung, nothing happens.
Press and hold
Moves the cursor to the top line of one rung above. If the cursor is on the top rung, it moves the cursor to the
top line of that rung.
Press Moves the cursor down one line. When the cursor is on the last line of the ladder, nothing happens.
Press and hold
Moves the cursor to the top line of one rung below. If the cursor is on the bottom rung, it moves the cursor to
the top line of that rung.
Press Moves the cursor once to the left. When the cursor is at the left edge of the line, nothing happens.
Press and hold Moves the cursor to the left edge. When the cursor is at the left edge of the line, nothing happens.
Press Moves the cursor once to the right. When the cursor is at the right edge of the line, nothing happens.
Press and hold Moves the cursor to the right edge. When the cursor is at the right edge of the line, nothing happens.
Press
If the instruction selected by the cursor is a NO contact or a NC contact, toggles the on/off state. If the
instruction selected by the cursor is not a NO contact or a NC contact, nothing happens.
Press and hold Displays the parameter details for the instruction selected with the cursor.
Press Ends ladder monitor mode.
Press and hold Not valid.
Stop
External Memory
Device Monitor
Program Monitor
00001
00002
SOTU
M0000
I0000
M0001 M0002
Ladder monitor screen

IDEC FT1A Series Specifications

General

Programming Software	WindLDR
Type	Programmable Logic Controller (PLC)
Display	LCD (varies by model)
Communication Ports	RS232C/RS485 (built-in), USB (programming), Ethernet (optional)
Dimensions	Varies by model
Weight	Varies by model
Model	FT1A Series
