IDEC FT1A Series User Manual

S MART AXIS P RO /L ITE U SER ' S M ANUAL FT9Y-B1378 6-9
6: HMI F UNCTION

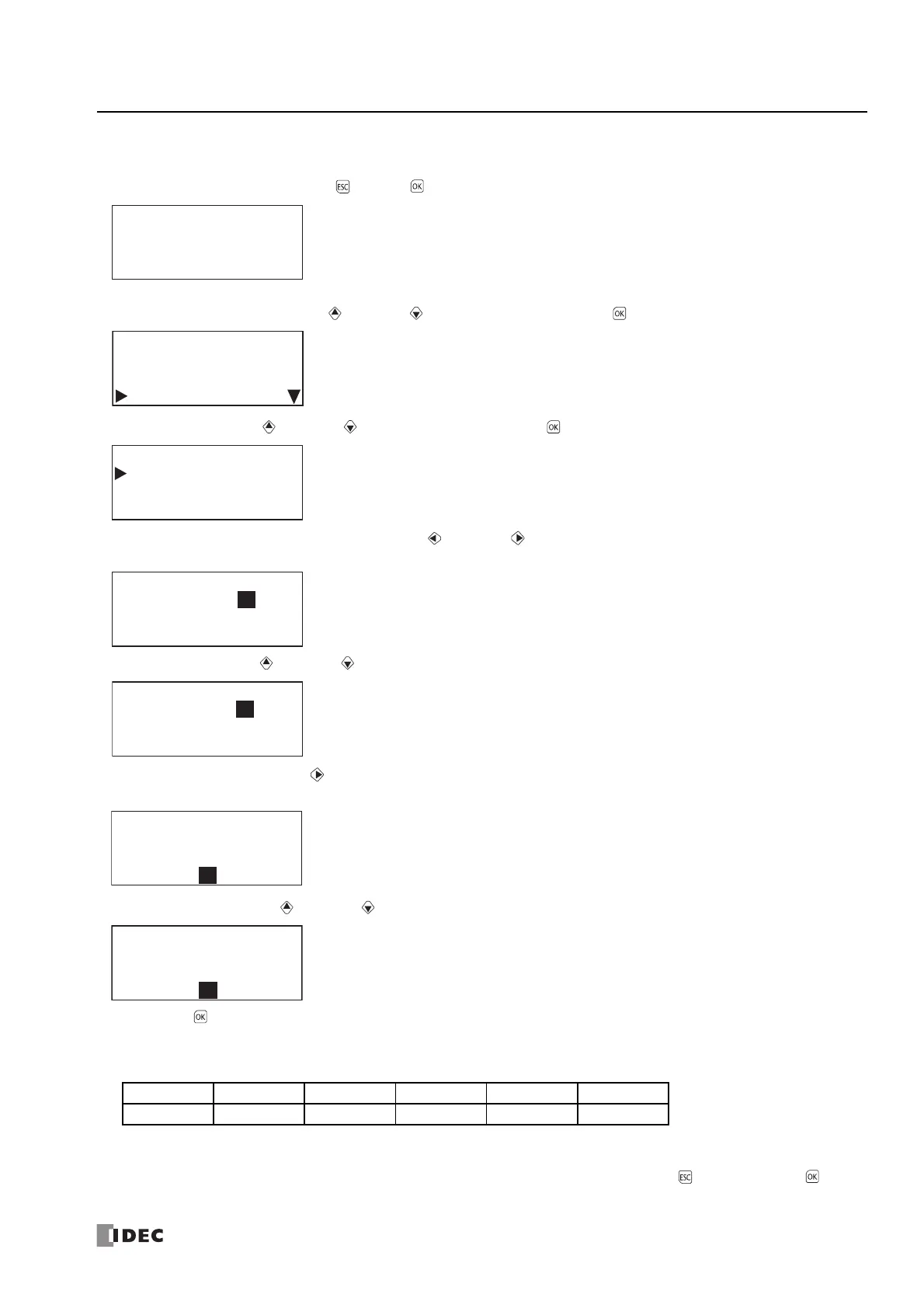

Setting the Calender/Clock
This section describes how to adjust the internal clock in the SmartAXIS. This cannot be adjusted while the SmartAXIS is running.
1. On the standard screen, press the (ESC) + (OK) buttons.
The system menu is displayed.
2. Select Configurations with the (up) and (down) buttons and press the (OK) button.
3. Select Clock with the (up) and (down) buttons and press the (OK) button.
4. Select the year, month, or day to modify with the (left) and (right) buttons.
For example, modify Day.
5. Modify Day with the (up) and (down) buttons.
6. From Day position, press the (right) button to select the clock.
For example, modify Minute.
7. Modify Minute with the (up) and (down) buttons.
8. Press the (OK) button to confirm the modifications to the calendar/clock.
• Calendar/clock configuration range
The calendar/clock configuration range is as follows.
Notes:
• When the date is modified, the day of the week automatically changes. The day of the week is not displayed on the configuration screen.
• If an invalid date is set, an error message is displayed. When the error message is displayed, press the (ESC) button or the (OK)
button to return to the configuration screen, and then set a valid date.
Year Month Day Hour Minute Second
2000 to 2099 01 to 12 00 to 31 00 to 23 00 to 59 00 to 59
Stopped
2012/OCT/10/WED
13:30:40
Run
Edit Program
External Memory
Configurations
Function
Clock
Menu Languages
Backlight
2012/10/10
13: 30: 40
13: 30: 40
2012/10/11
2012/10/11
13: 30: 40
2012/10/11
13: 35: 40

IDEC FT1A Series Specifications

General

Programming Software	WindLDR
Type	Programmable Logic Controller (PLC)
Display	LCD (varies by model)
Communication Ports	RS232C/RS485 (built-in), USB (programming), Ethernet (optional)
Dimensions	Varies by model
Weight	Varies by model
Model	FT1A Series
