4. With the (up) and (down) buttons, select M0010.
0 flashes to indicate the focus is on M0010.
5. Move the cursor to 2 with the (right) button and press the (OK) button.
M0012 turns on.

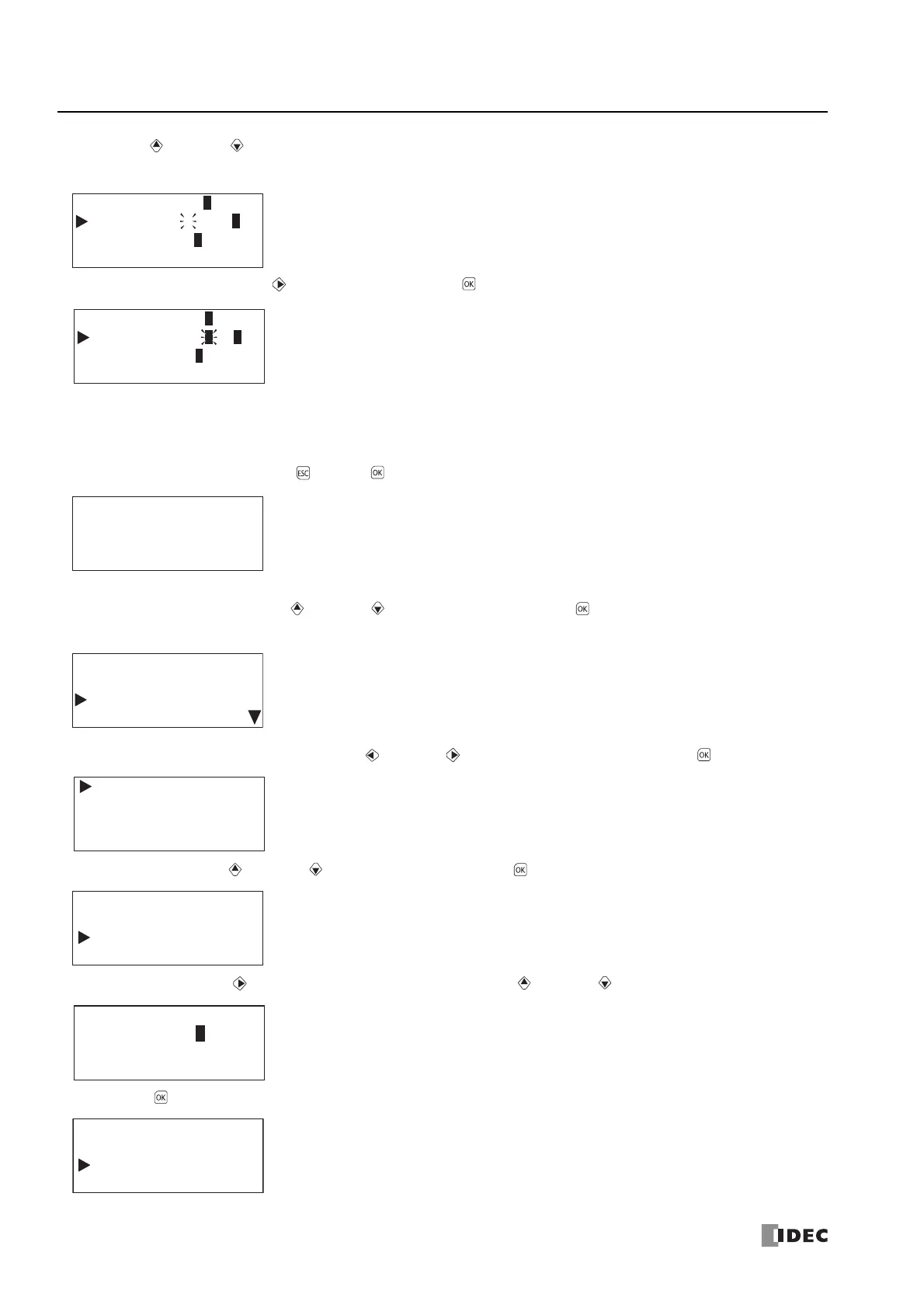

Modifying a Word Device Value
This section describes an example of changing D0002 to 500 while the SmartAXIS is running.
1. On the standard screen, press the (ESC) + (OK) buttons.
The system menu is displayed.
2. Select Device Monitor with the (up) and (down) buttons and press the (OK) button.
The SmartAXIS switches to the Device Monitor mode.
3. Select device type: D (Data Register) with the (left) and (right) buttons and press and hold the (OK) button.
4. Select D0002 with the (up) and (down) buttons and press the (OK) button.
5. Move the digit with the (right) button and modify the value with the (up) and (down) buttons.
6. Press the (OK) button to confirm.
M01234567
M 01234567
M01234567
M 012345
0000
,
0010
,
0020
,
0030
,
M01234567
M01234567
M01234567
M 012345
0000
,
0010
,
0020
,
0030
,
Running
13:30:40
2012/OCT/10/WED
Stop
External Memory
Device Monitor
Program Monitor
D 001000000:
0001:
0002:
0003:
D 00200
D 00300
D 00400
D 001000000:
0001:
0002:
0003:
D 00200
D 00300
D 00400
Change Device Val.:
D 0000:
00500
DEC (W)
' 



' 
' 
' 

IDEC FT1A Series Specifications

General

Programming Software	WindLDR
Type	Programmable Logic Controller (PLC)
Display	LCD (varies by model)
Communication Ports	RS232C/RS485 (built-in), USB (programming), Ethernet (optional)
Dimensions	Varies by model
Weight	Varies by model
Model	FT1A Series
