IDEC FT1A Series User Manual

9: M AINTENANCE C OMMUNICATION
9-8 S MART AXIS P RO /L ITE U SER ' S M ANUAL FT9Y-B1378

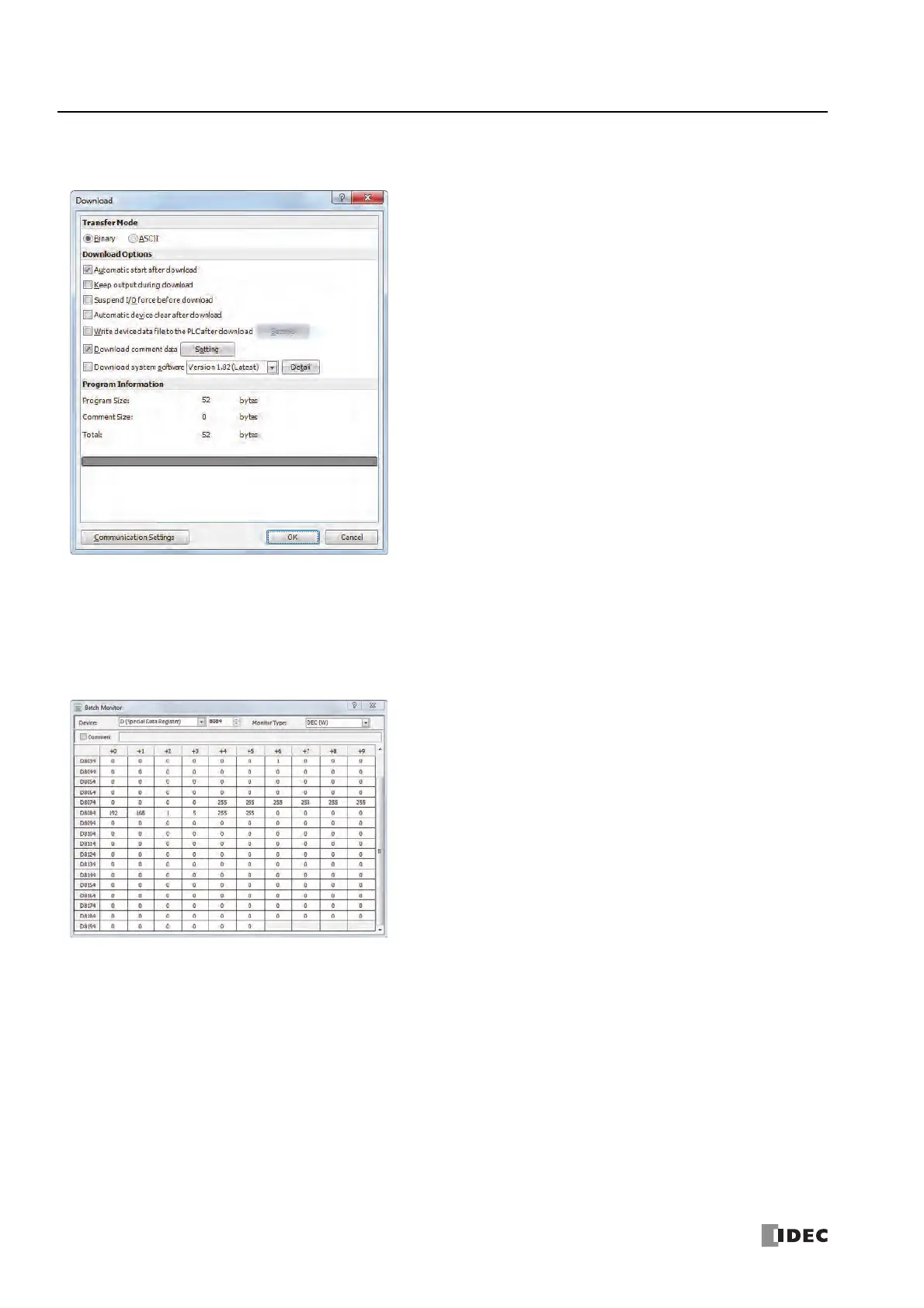

9. Click OK.
The user program is downloaded to the SmartAXIS.
10. After the user program has been successfully downloaded, go to Monitor Mode to check the status of the SmartAXIS. Select
Online > Monitor > Monitor from the WindLDR menu bar.
11. From the WindLDR menu bar, select Online > Monitor > Batch.
The Batch Monitor dialog box appears.
12. Confirm that the IP address entered in step 2 is correctly shown in D8084 to D8087.
Monitor SmartAXIS via the Ethernet
Monitor the SmartAXIS via Ethernet using WindLDR.
13. From the WindLDR menu bar, select Online > Communication > Set Up.
The Communication Settings dialog box appears.
