A-12 S MART AXIS P RO /L ITE U SER ' S M ANUAL FT9Y-B1378

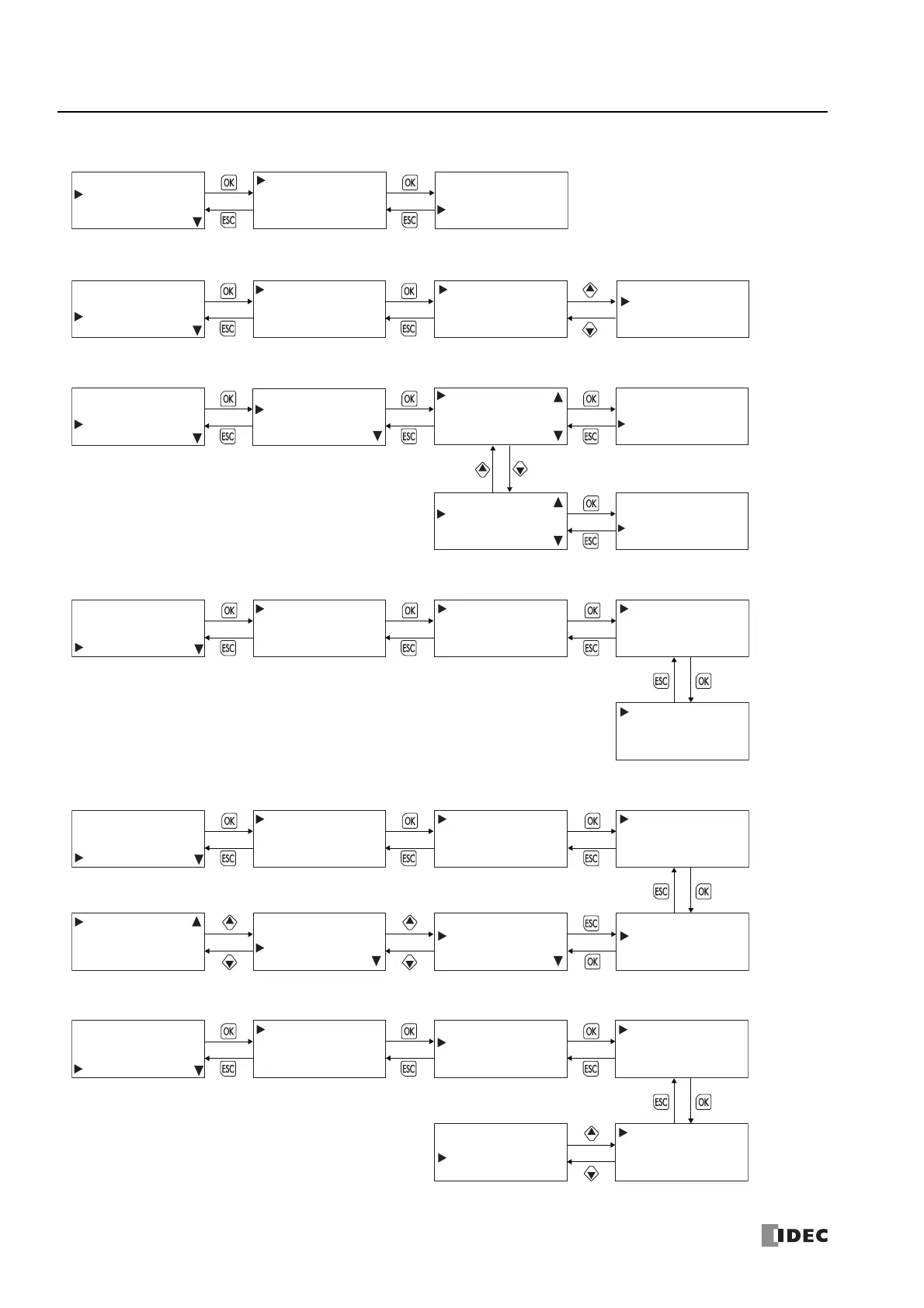

Writing/Clearing TP (Timer Preset Values) and CP (Counter Preset Values) in the User Program
Uploading/Downloading the User Program
Stopping Access to the SD Memory Card/Formatting the SD Memory Card
Configuring the Slave Number
Configuring the Network Settings
Modifying the Scroll Speed/Configuring the Scroll Unit
Run
Edit Program
External Memory
Configurations
T/C Preset Values
T/C Change Status:
T/C is changed
Clear
Comfirm
Run
Edit Program
External Memory
Configurations
Memory Cartridge
SD Card
PLC -> Cartridge
Cartridge -> PLC
PLC -> Cartridge
Cartridge -> PLC
Stop Access
Format
Stop Access
Format
Do you want to
format SD card?
No
Yes
Run
Edit Program
External Memory
Configurations
Memory Cartridge
SD Card
Do you want to stop
SD card access?
No
Yes
Run
Edit Program
External Memory
Configurations
Function
Clock
Menu Languages
Backlight
Communications
Message Settings
Slave Number
Port 2:
0
Port 3:
0
Slave Number
Network Settings
Slave Number
Network Settings
Run
Edit Program
External Memory
Configurations
Function
Clock
Menu Languages
Backlight
Communications
Message Settings
Subnet Mask:
255.255.255. 0
Default Gateway:
0. 0. 0. 0
Network Settings
DHCP: OFF
IP Address:
192.168. 1. 5
Network Settings
DHCP: OFF
IP Address:
192.168. 1. 5
Run
Edit Program
External Memory
Configurations
Function
Clock
Menu Languages
Backlight
Communications
Message Settings
Scroll Settings
Blink Settings
Scroll Speed:
500 ms
Scroll Unit:
1-character
Scroll Speed:
500 ms
Scroll Unit:
1-character
