3: I NSTALLATION AND W IRING
3-6 S MART AXIS P RO /L ITE U SER ' S M ANUAL FT9Y-B1378

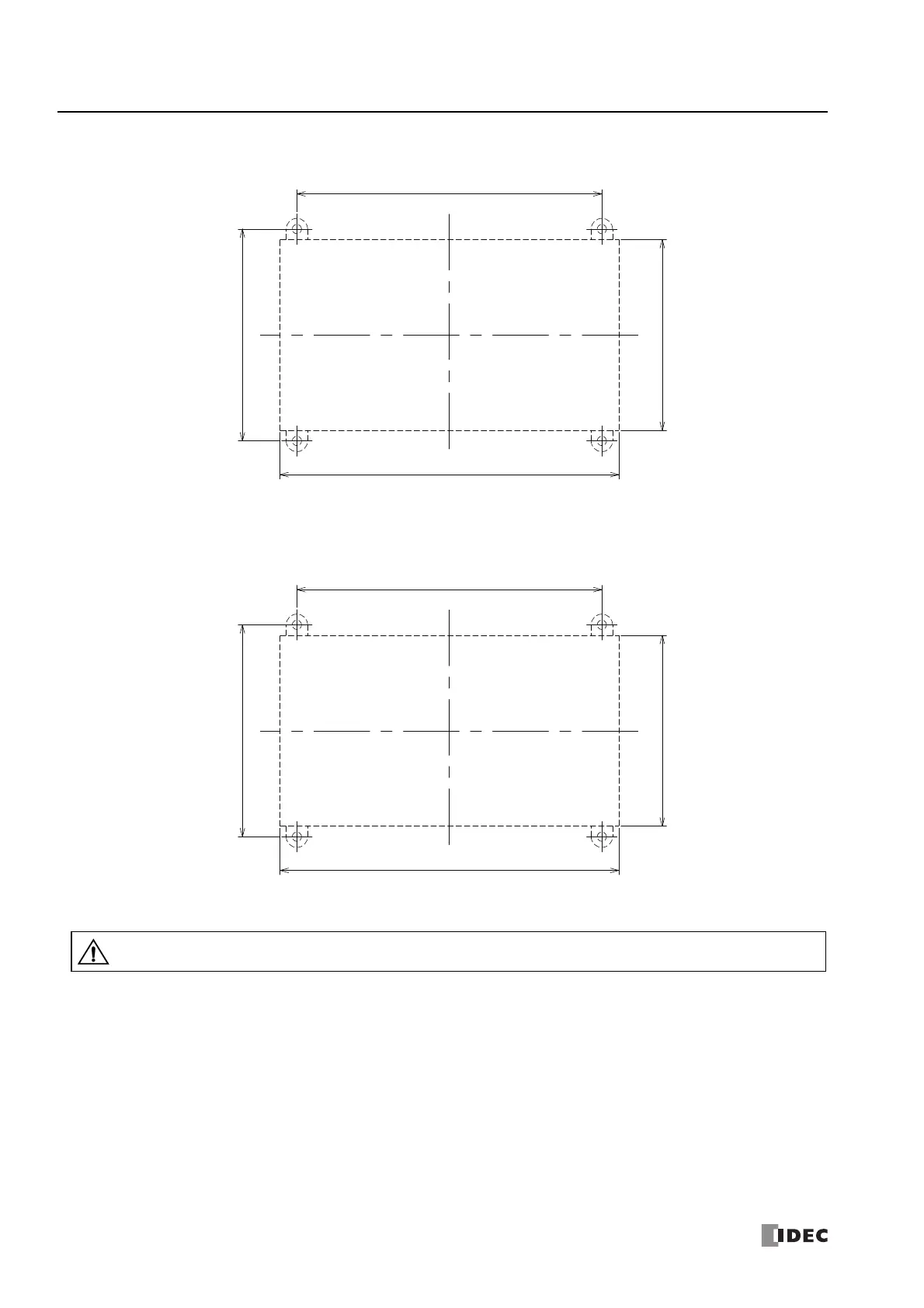

• 40-I/O type (FT1A-H40RKA, FT1A-H40RSA, FT1A-B40RKA, FT1A-B40RSA, FT1A-H40RC, FT1A-B40RC)
• 48-I/O type
(FT1A-H48KA, FT1A-H48SA, FT1A-B48KA, FT1A-B48SA, FT1A-H48KC, FT1A-H48SC, FT1A-B48KC, FT1A-B48SC)
(160)
(90)
144
100
All dimensions in mm.
(160)
(90)
144
100
All dimensions in mm.
• When directly mounting the SmartAXIS, tighten mounting screws with torque of 1N·m (10kgf·cm).
Caution
