IDENTIVISION IP NVR INSTALLATION GUIDE

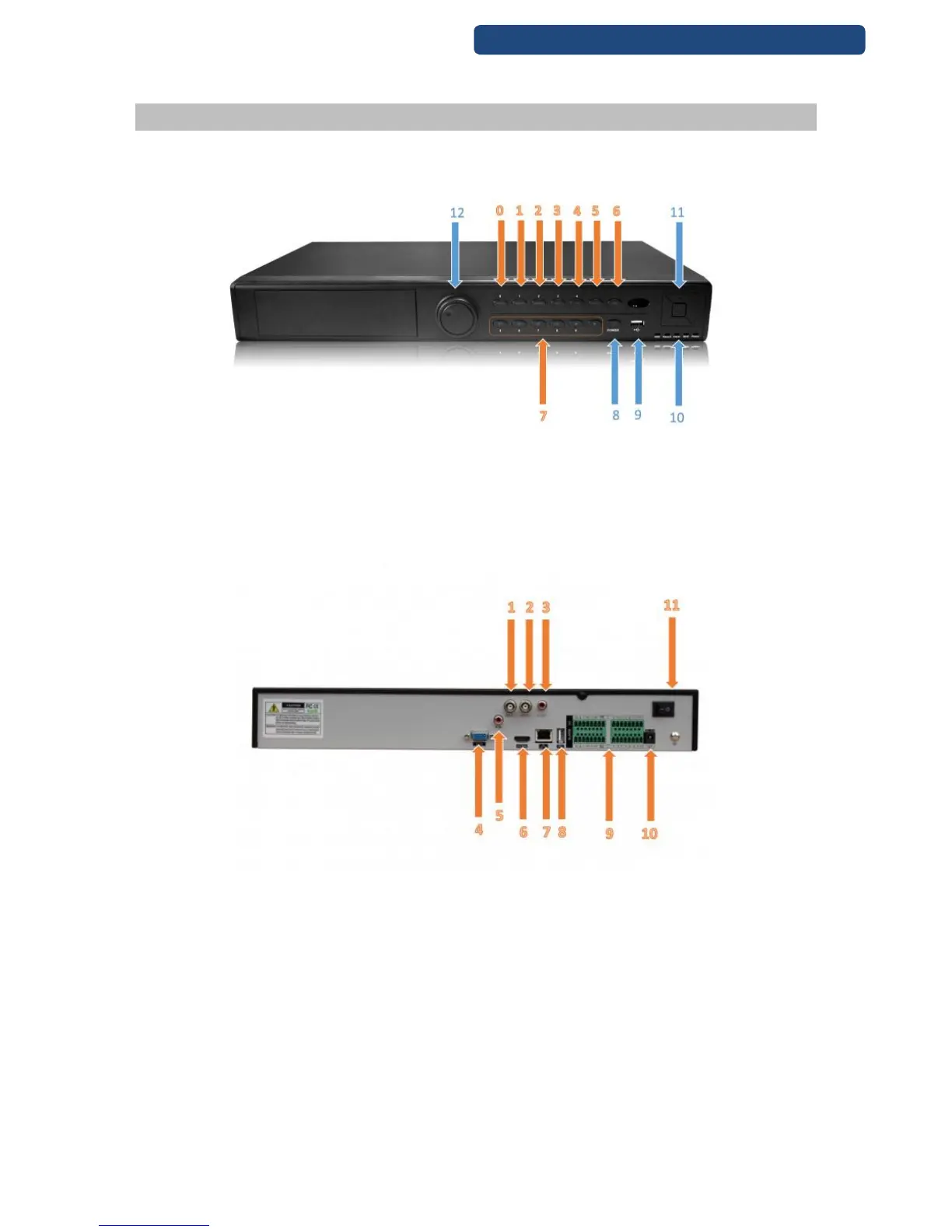

2.5 IIP-N1640-N1641
0. Menu button
1. Mode select
2. Search
3. PTZ control
4. FN button
5. SHIFT button
6. ESC
7. Play buttons
8. ON/OFF button
9. USB port
10. Indicator Leds
11. Directions buttons
12. Jog dial
1. Video output BNC
2. Video output BNC
3. Audio output RCA
4. Video output VGA
5. Audio output RCA
6. Video output HDMI
7. Network connector
RJ45
8. USB port
9. Alarm in/out
10. Power supply
connector
11. Power switch
