1.5.3 AD Board
The DM series LCD monitor AD board provides a wide variety of control interfaces,
receiving and managing signals from a CPU card through cabling. Figure 1-4 shows the
AV-6600 AD board as a sample of a typical AD board for the DM series LCD monitor.
Refer to Chapter 4 for a complete description of AD boards and their connectors.

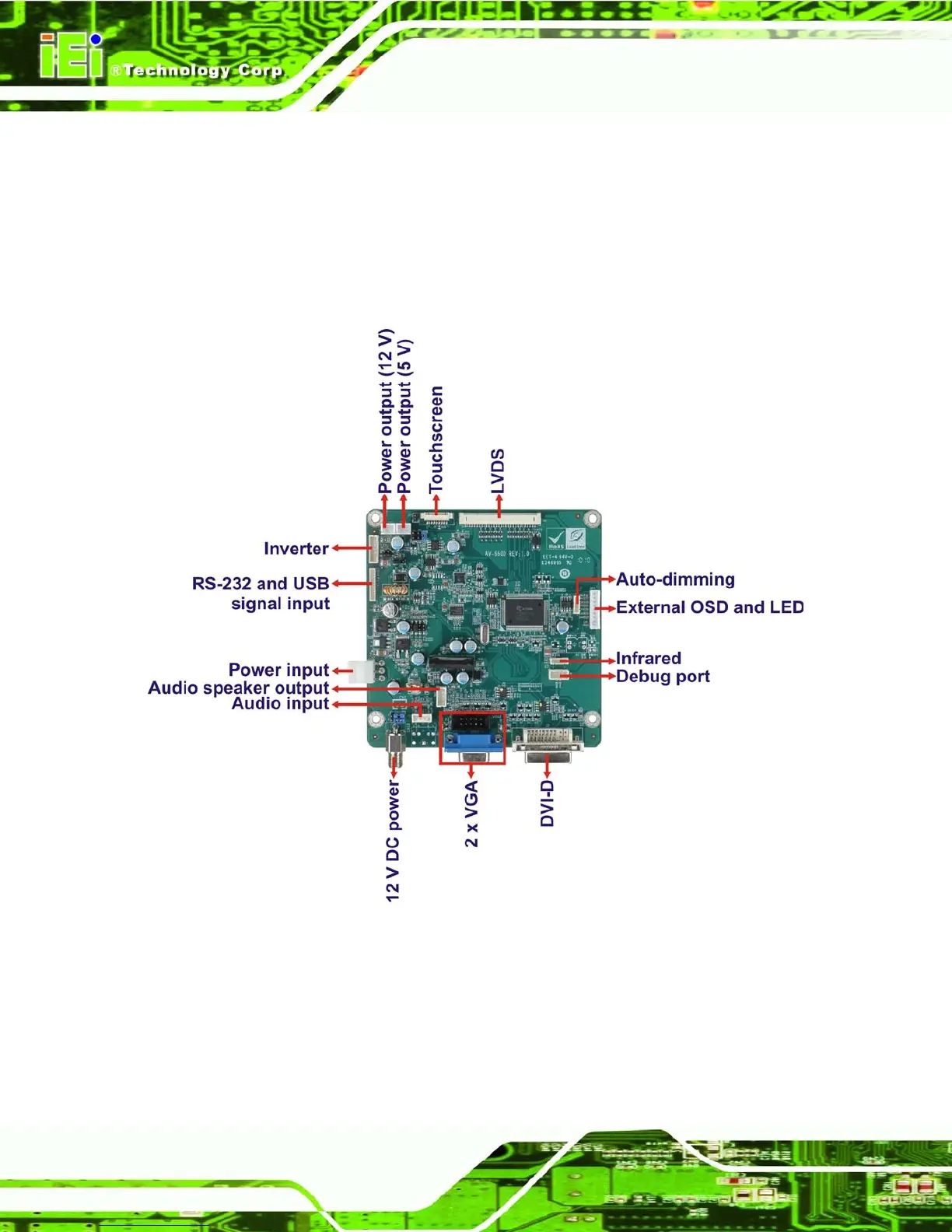

Figure 1-4: AV-6600 AD Board
