To mount the DM series LCD monitor into a panel, please follow the steps below.
Step 1: Select the position on the panel to mount the monitor.
Step 2: Cut out a section of the panel that corresponds to the rear panel dimensions of
the monitor. Take care that the panel section that is cut out is smaller than the
overall size of the metal frame that surrounds the monitor but just large enough
for the rear panel of the monitor to fit through.

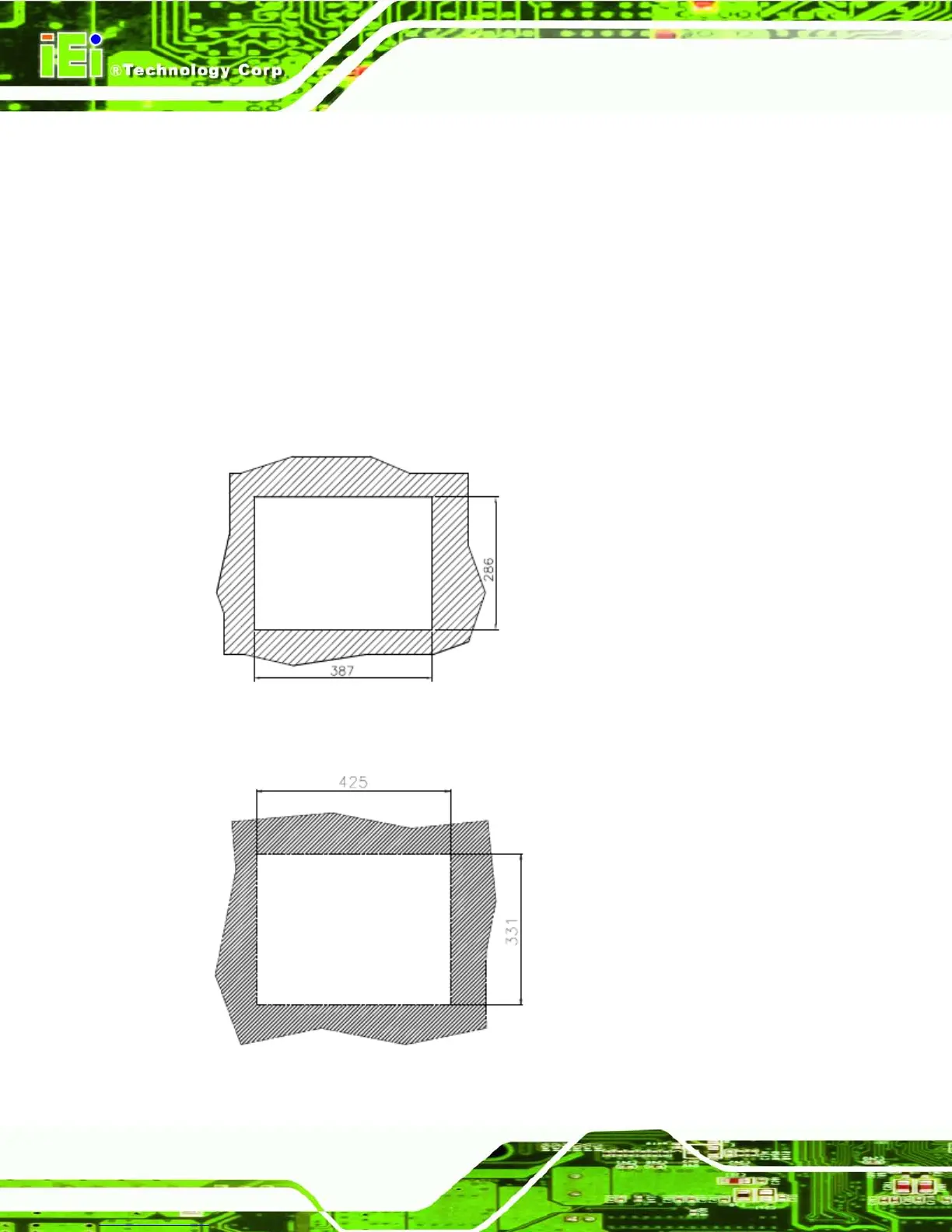

Figure 5-8: DM-150 Panel Opening (Unit: mm)
Figure 5-9: DM-170 Panel Opening (Unit: mm)
