Step 4: Insert the panel mounting clamps into the pre-formed holes along the edges of
the monitor, behind the metal frame. Refer to the mounting kit packing list for the
required number of mounting clamps.

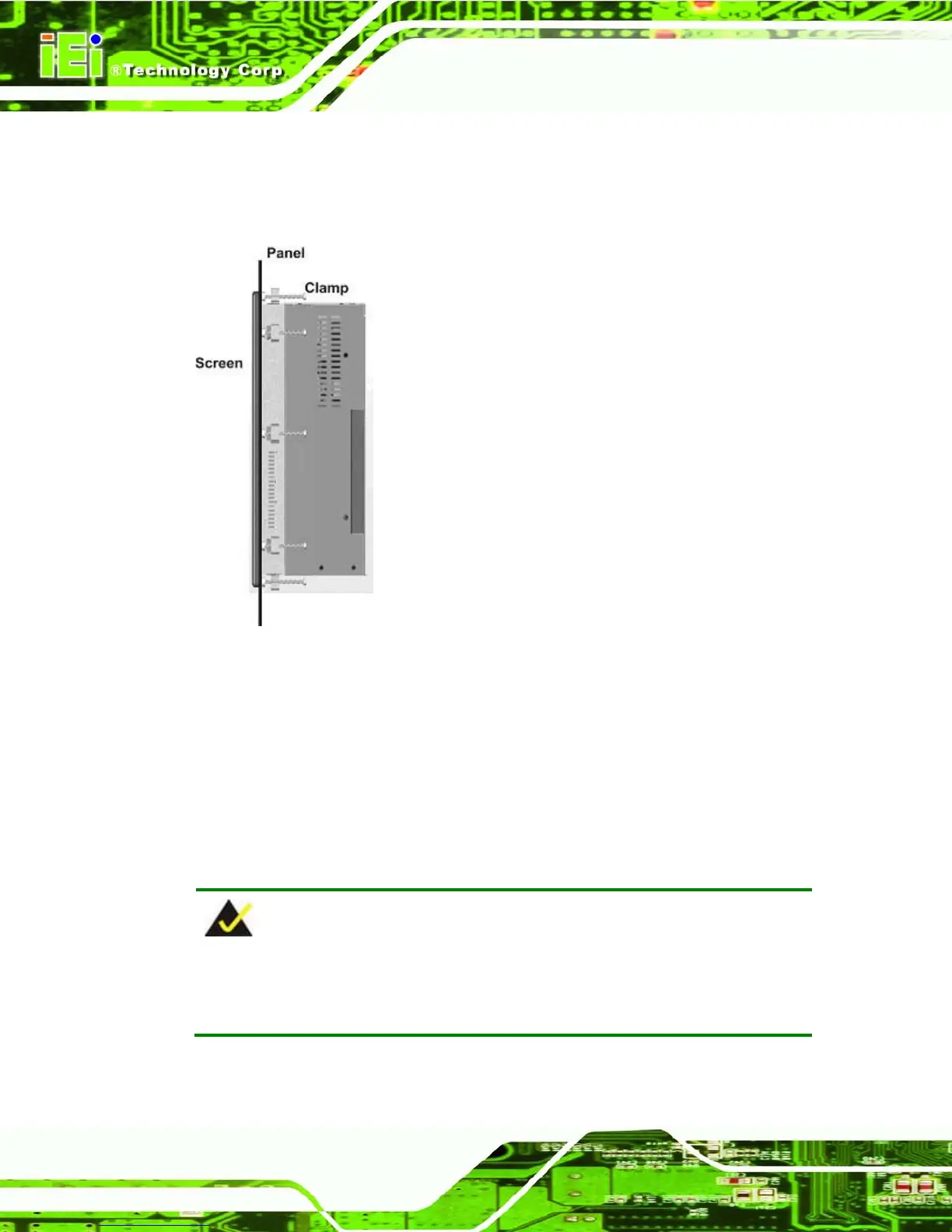

Figure 5-12: Panel Mounting Clamp Position
Step 5: Tighten the screws that pass through the panel mounting clamps until the plastic
caps at the front of all the screws are firmly secured to the panel (Figure 5-12).
5.5.2 Cabinet and Rack Installation
Each model of the DM series LCD monitor has a series of holes located on the rear of the
front panel for mounting the monitor to a rack or cabinet.
NOTE:
1. The DM-190 monitor requires two special mounting brackets for installation
into a rack or cabinet. Refer to Section 5.5.2.2 for details.
