5.5.3 Wall Mounting
CAUTION:
Due to safety concerns, it is highly recommended to use the VESA mounting
kits provided by IEI for wall, stand and arm mounting. If the VESA mounting kit
is purchased separately, please make sure the mounting kit is UL-listed.
Each model of the DM series LCD monitor has four holes located on the rear panel for
mounting the monitor to a wall. To mount the DM series LCD monitor onto a wall, please
follow the steps below.
Step 1: Select a location on the wall for the wall-mounting bracket.
Step 2: Carefully mark the locations of the four bracket screw holes on the wall.
Step 3: Drill four pilot holes at the marked locations on the wall for the bracket retention
screws.
Step 4: Align the wall-mounting bracket screw holes with the pilot holes.
Step 5: Secure the mounting-bracket to the wall by inserting the retention screws into
the four pilot holes and tightening them (Figure 5-18).

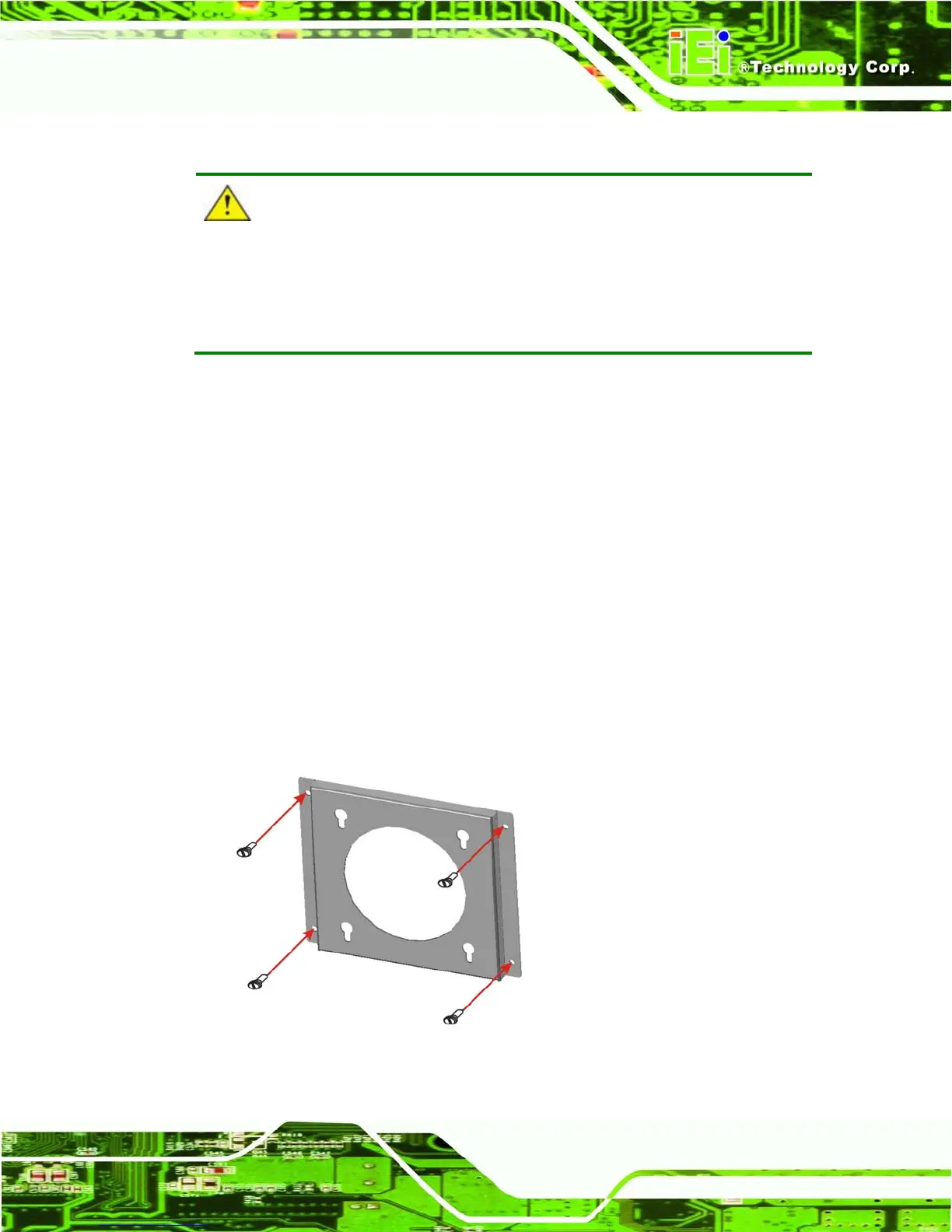

Figure 5-18: Wall-mounting Bracket
