Step 6: Once the monitor with the attached cabinet/rack has been properly inserted into
the rack or cabinet, secure the front of the rack/cabinet bracket to the front of the
rack or cabinet (Figure 5-14).
5.5.2.2 DM-190 Cabinet and Rack Installation
To mount the DM-190 monitor into a cabinet/rack, please follow the steps below.
Step 1: Insert and tighten the supplied mounting nuts and bolts to the rack for the rack
mounting bracket. Each bracket requires three nuts and bolts for installation.
(See Figure 5-15)

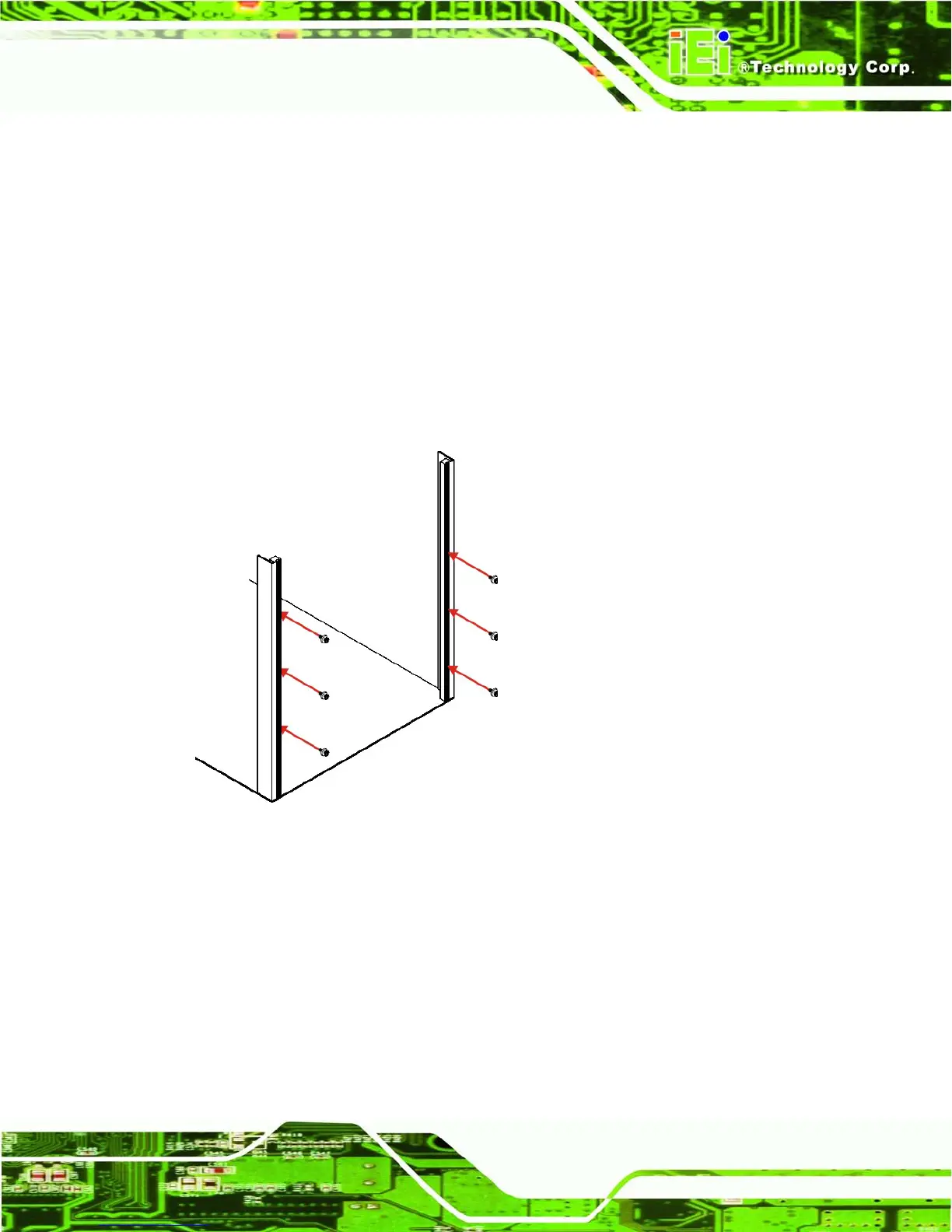

Figure 5-15: Rack Mounting Nuts and Bolts Installation (DM-190)
Step 2: Secure the rack mounting bracket to two sides of the monitor using the supplied
retention screws. Each bracket requires four screws. (See Figure 5-16)
