DM Series Monitor

Page 52

6.2.2 Color

Color options are shown in Figure 6-3.

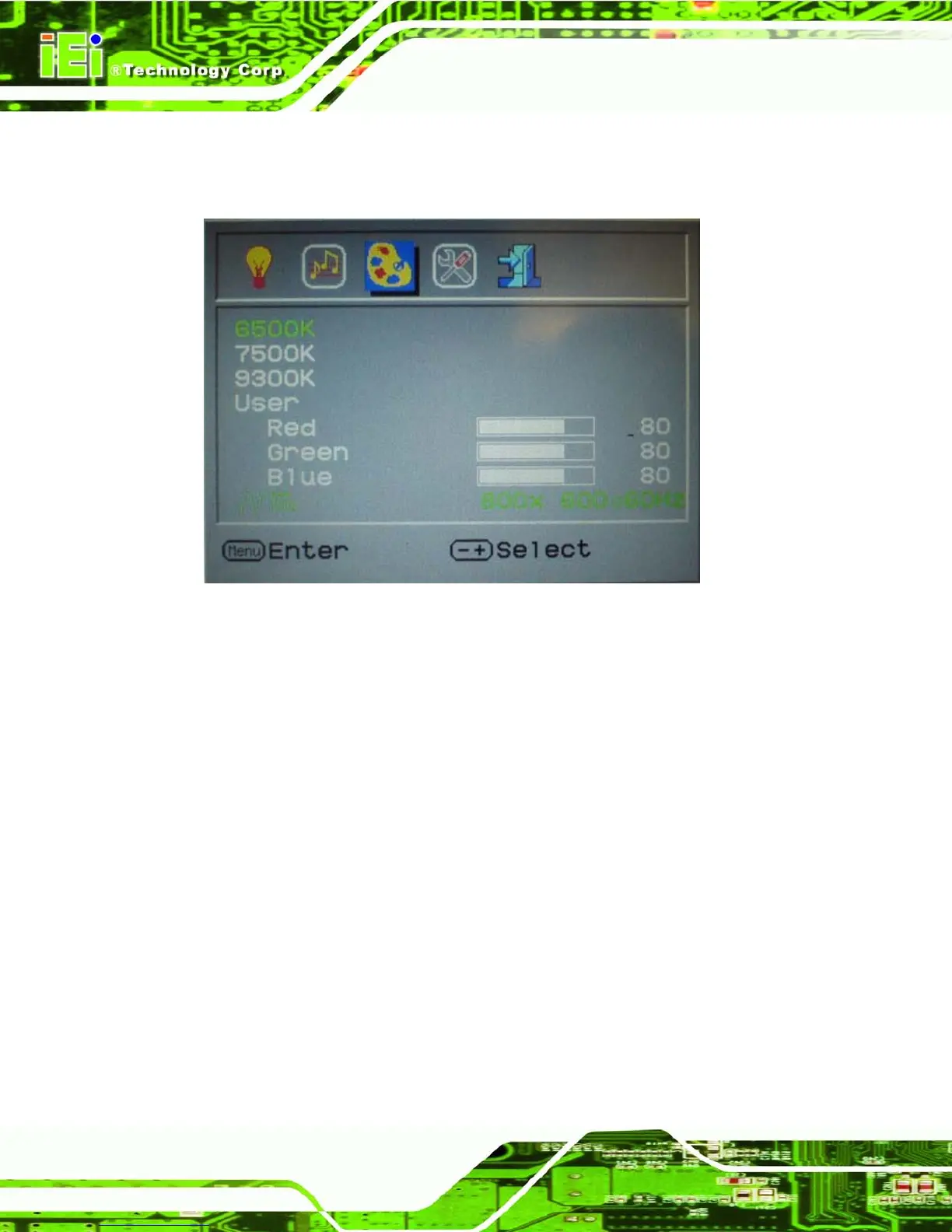

Figure 6-3: Color Options

The Color menu fine-tunes the palette of color hues for the LCD.

6500k

NTSC standard Kelvin

7500k

NTSC standard Kelvin

9300k

NTSC standard Kelvin

User

This item allows fine-tuning the balance among Red, Green, and Blue color

hues if images look garish or unrealistic.
