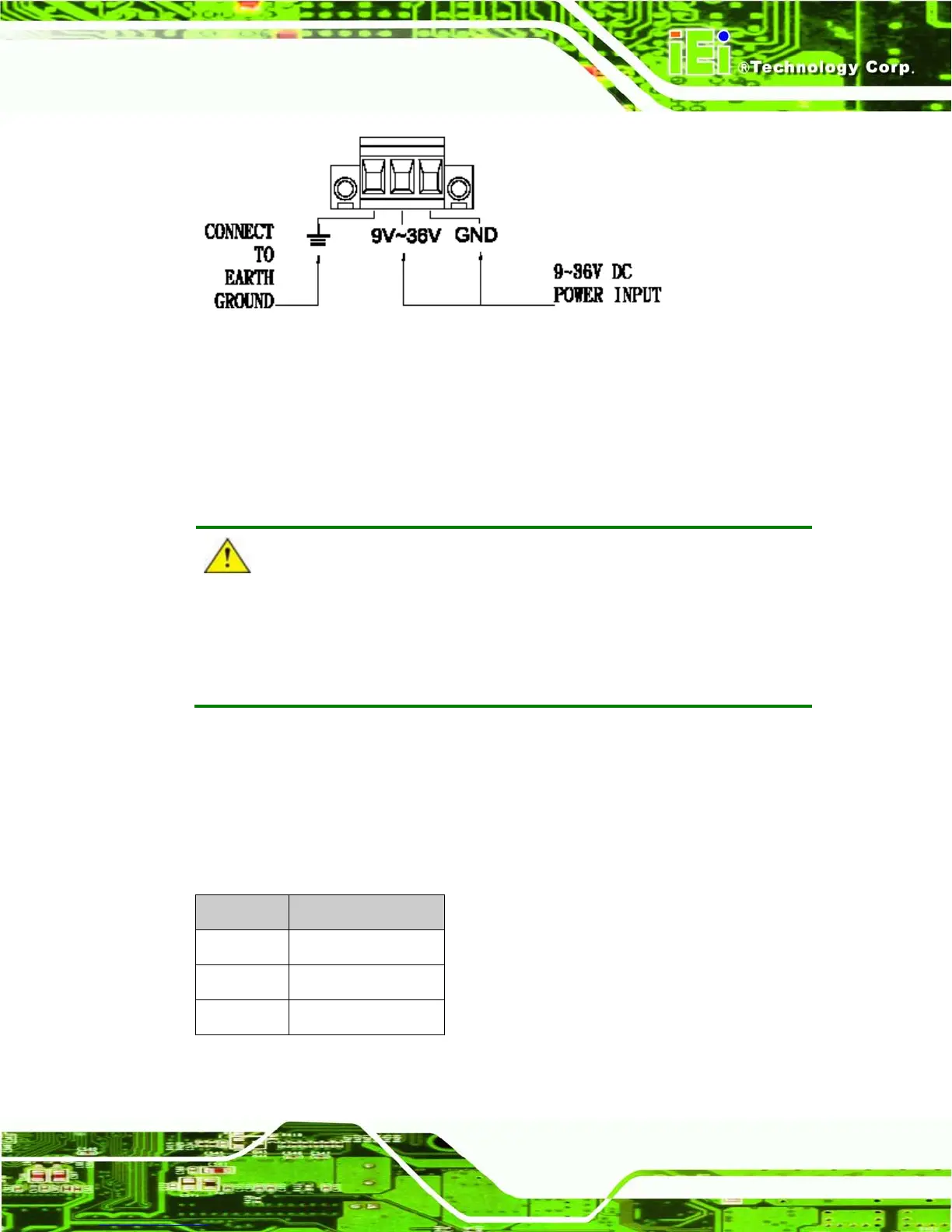

Figure 5-7: Terminal Block
5.5 Mounting the Monitor
The DM series LCD monitor can be mounted in a panel, cabinet, rack or wall. The monitor
can also be mounted on a monitor arm or stand. The mounting methods are described
below.
CAUTION:
When mounting the monitor take care to tighten the retention screws or bolts
until fully secure, but do not over tighten. Over tightening the retention screws
or bolts may cause them to become stripped, rendering them useless.
5.5.1 Panel Mounting
Each model of the DM series LCD monitor has a series of mounting slots located on the
top and bottom panel for mounting the monitor to a panel.
Table 5-5 lists the number of mounting clamps required to mount the monitor to a panel.
Model Mounting Clamps
DM-150 10
DM-170 10
DM-190 14
Table 5-6: Panel Mounting Clamps
