5.5.5 Monitor Arm Ins tallation
The DM series LCD monitor has Video Electronics Standards Association (VESA)
standard mounting holes tapped into the rear panel. The standard holes are M4 set at
100m x 100mm apart (Figure 5-21). The monitor arm mounting plate has a matching
VESA hole pattern. To mount the DM series LCD monitor onto a monitor arm, please
follow the steps below.
Step 1: Line up the threaded holes on the monitor rear panel with the screw holes on the
monitor arm mounting plate.
Step 2: Secure the monitor to the arm with the supplied retention screws (Figure 5-23).
Step 0:

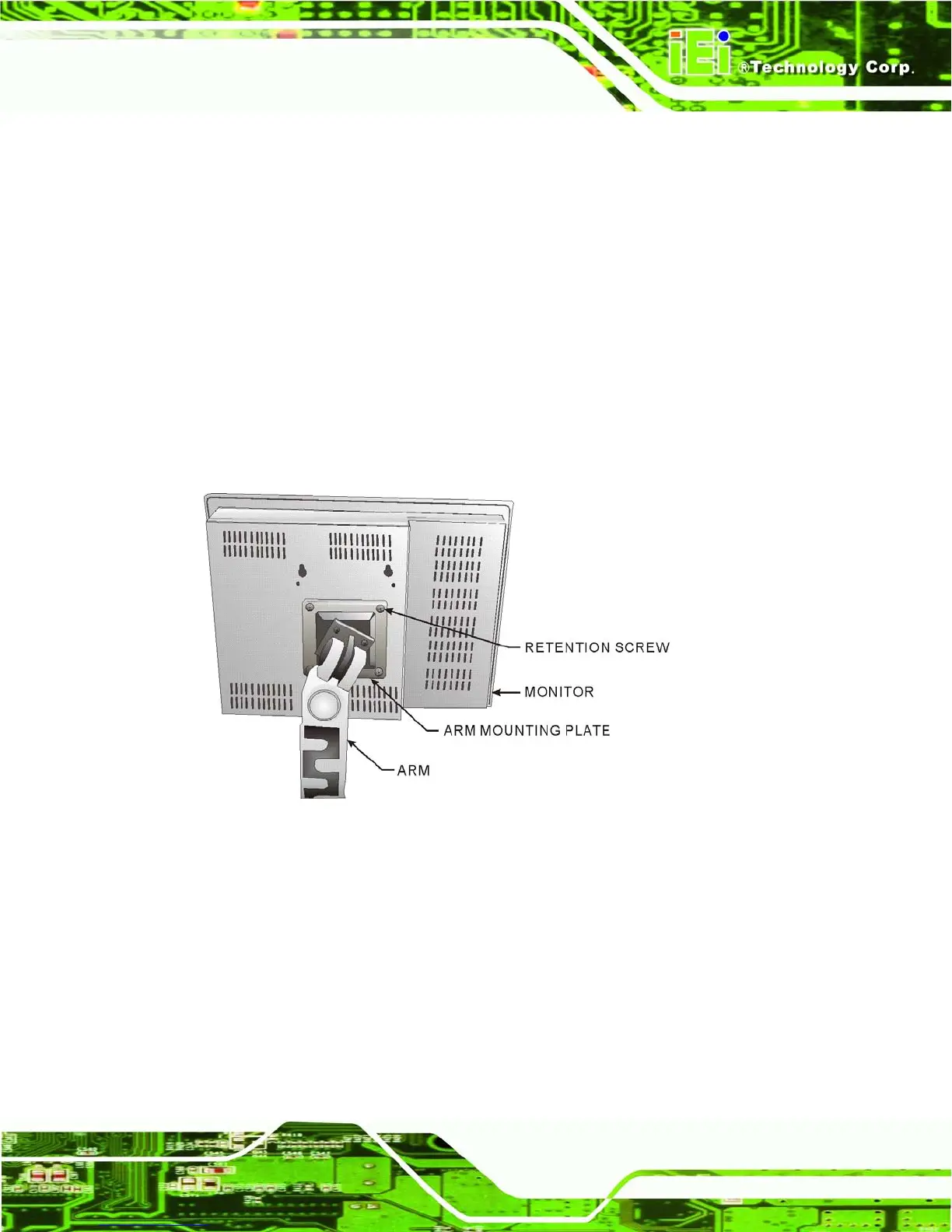

Figure 5-23: Monitor Arm Mounting
