Step 6: Insert the four monitor mounting screws (M4 screws) provided in the wall
mounting kit into the four screw holes on the real panel of the monitor and
tighten until the screw shank is secured against the rear panel (Figure 5-19).

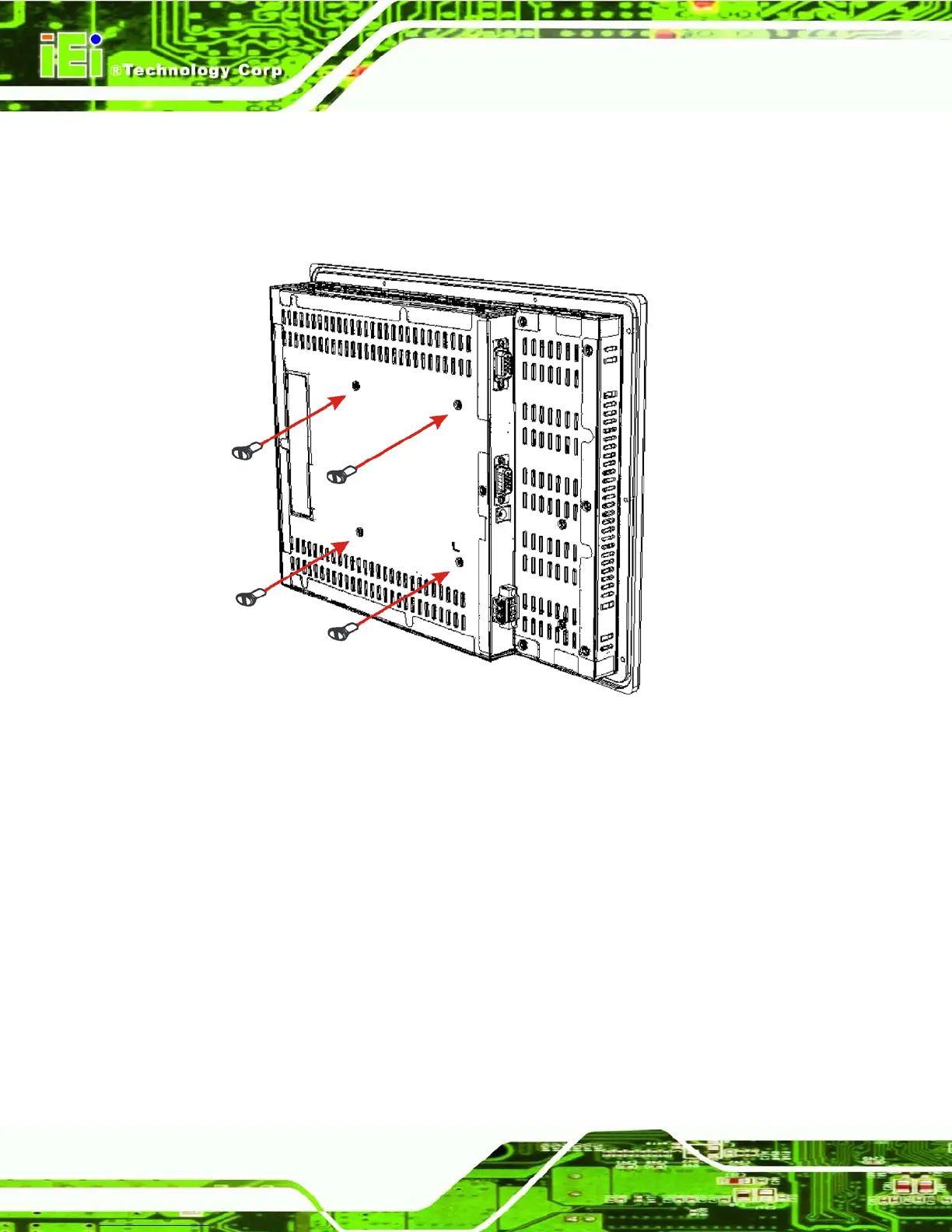

Figure 5-19: Monitor Support Screws
Step 7: Align the mounting screws on the monitor rear panel with the mounting holes on
the bracket.
Step 8: Carefully insert the screws through the holes and gently pull the monitor
downwards until the monitor rests securely in the slotted holes (Figure 5-20).
Ensure that all four of the mounting screws fit snuggly into their respective
slotted holes.
