DM Series Monitor

Page 58

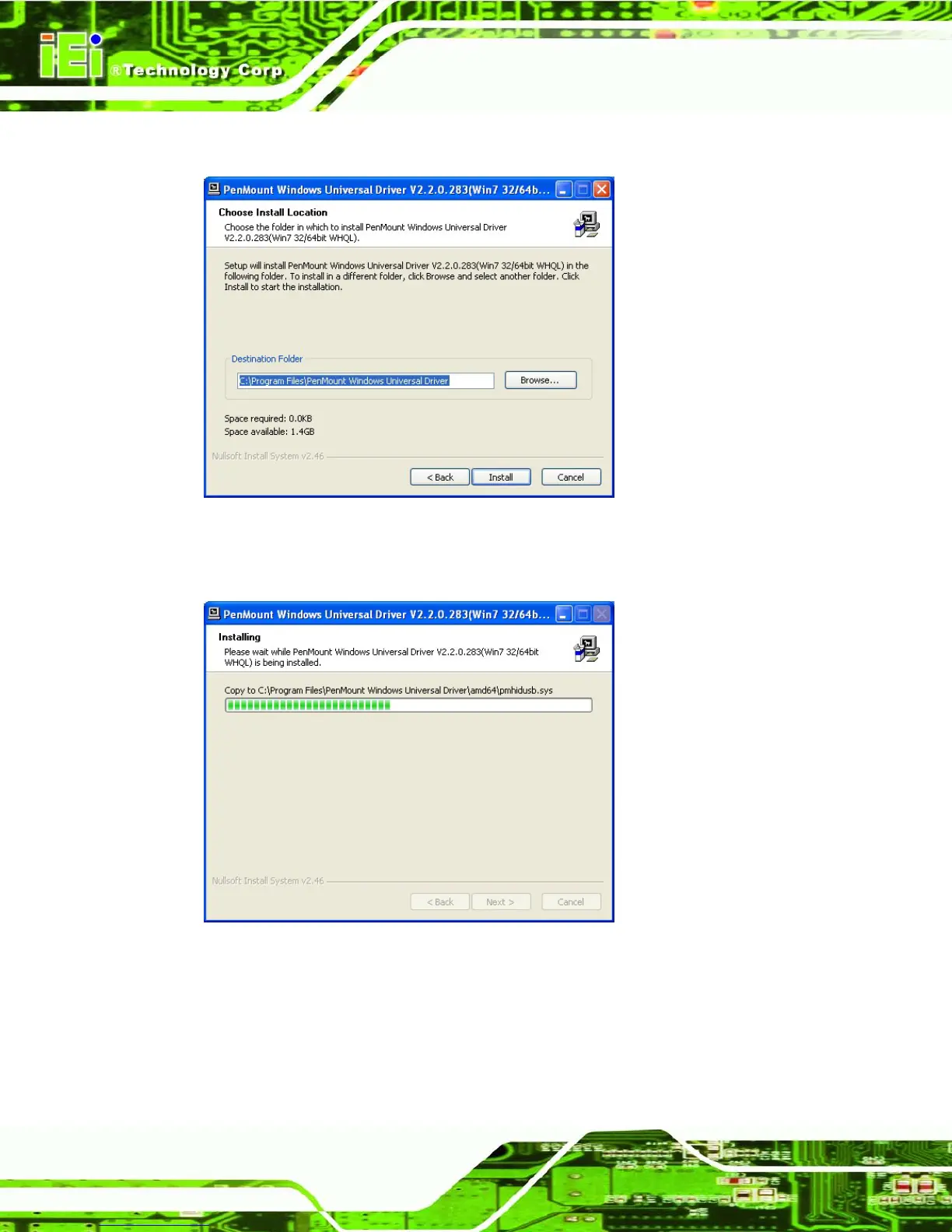

Step 8: The installation destination screen appears. See Figure 7-4. Click Install.

Figure 7-4: Initiate Install

Step 9: The installation of the program begins. See Figure 7-5.

Figure 7-5: Installation Starts

Step 10: When the installation is complete, the complete screen appears. See Figure 7-6.

To complete the installation process click Finish.
