Ihse Draco tera enterprise 480 Series User Manual

Description Draco tera enterprise
34
3.6.2.5 LEDs for Link Connection Grid 10G Board

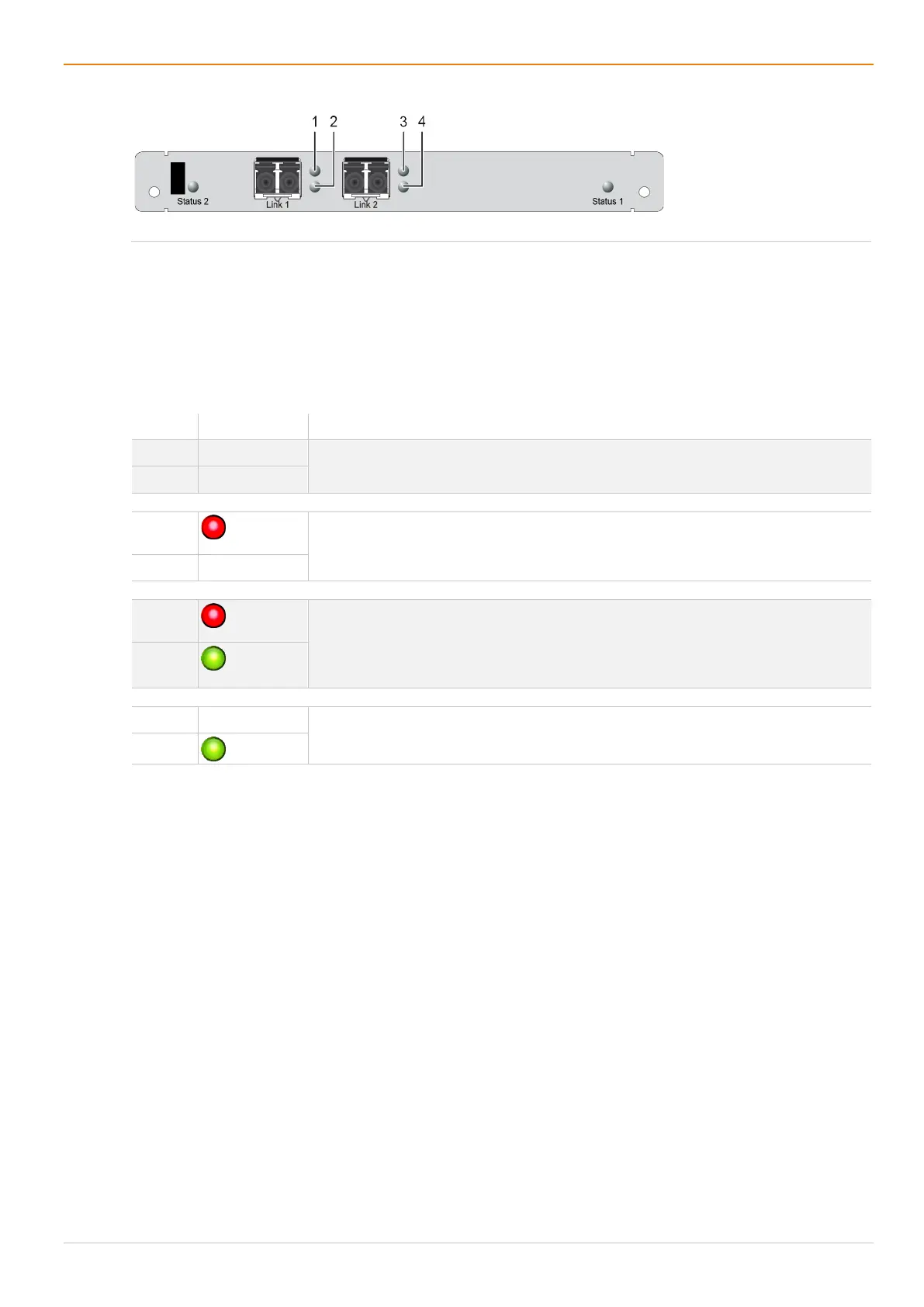

Fig. 24 Interface side - Link Connection LEDs, Draco tera board, Matrix Grid
1 Activity Status LED
2
Link Status LED
3 Activity Status LED
4
Link Status LED
Status LEDs of the I/O Ports, Matrix Grid
The following tables show the respective LED states/colors of the left LED 1 and right LED 2 of the I/O
board for the respective situation.
Pos. LED Description
1/3 Off
Port not activated.
2/4 Off
1/3
Flashing
orange
No link connection available, extender module is not detected.
2/4 Off
1/3
Flashing
orange
Link connection available, extender module detection is running.
2/4 Flashing
green
1/3 Off
Operating status, link connection available, data traffic is active.
2/4 Green

Ihse Draco tera enterprise 480 Series Specifications

General

Model	Draco tera enterprise 480 Series
Category	Switch
Ports	480
Type	Matrix Switch
Video Formats	HDMI, DisplayPort, DVI, SDI
Audio Formats	Embedded audio, analog audio
Control	Web interface, serial interface, API
