Operation manual EPM-XP
Software Release l.0.5.17 2019-01-29
Page 17 of 50

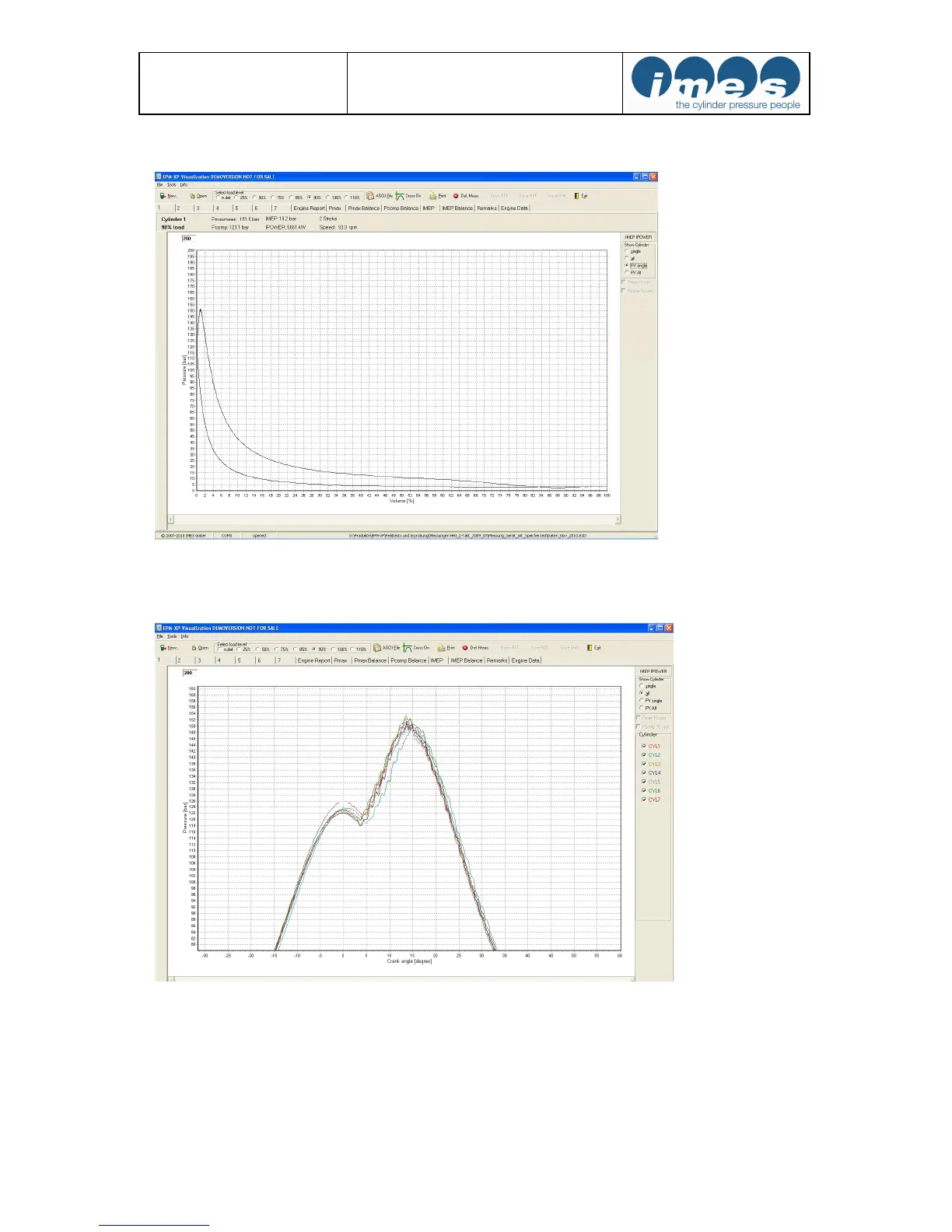

6.4.1.2 Indication of all cylinder pressure (all) versus crank angle
6.4.1.3 Zoom -function
Zoom function on: Hold left mouse button pushed down and draw across the curve from top left down to
right bottom corner.
Zoom function off: Hold left mouse button pushed down and draw across the curve from right bottom up
to top left corner.
