2 Scope of supply

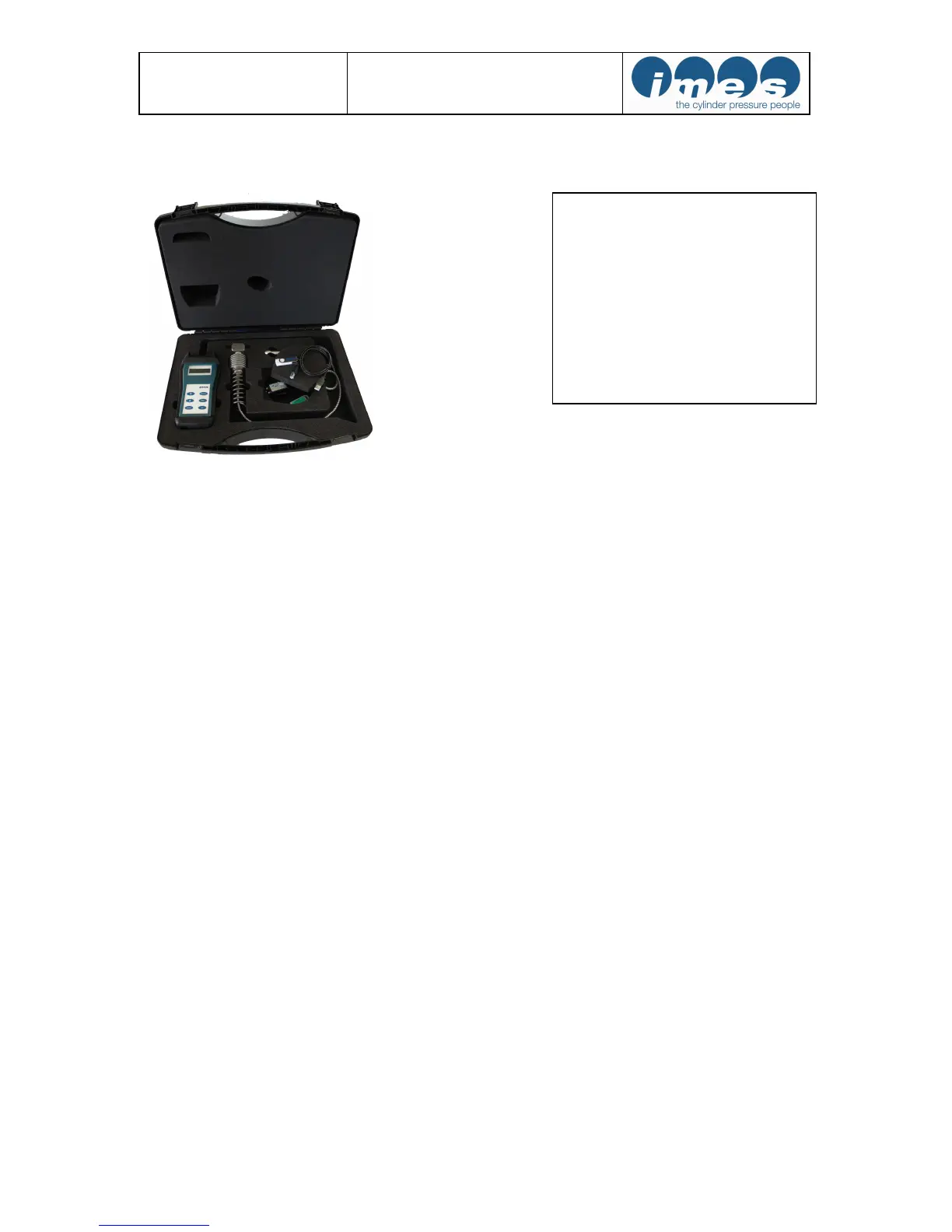

Fig.2: Instrument case with all components
3 Important information
Please study this manual carefully, before using the
equipment. This will ensure that you will receive maximum
benefits from using this engine performance tuning tool with
its versatile functionality and it will guarantee optimum
benefits over its lifetime.
3.1 Use of the operator manual
We strongly recommend you to read the complete manual
before using the equipment. If you have already experience
with IMES systems you may only read the relevant
chapters for the required information.
It was our intention to structure this manual in a clear
layout, to enable you to get easy and instant access to the
information you are looking for. Please keep this manual in
a safe place where it is always available for easy access.
We ask for your understanding, that we will reserve the
right to change information and instructions in this manual
if necessary without giving notice in advance.
4 Description
4.1 Introduction
The electronic indicator EPM-XP is a handy-, battery
powered-, portable device to measure and evaluate cylinder
pressure on diesel engines at speed up to 1500 RPM.
The EPM-XP collect 10 consecutive pressure measure-
ments (cycles) and calculates peak pressure, engine speed.
The measured data are displayed in numerical format on the
LCD screen and can be stored.
- 1 x EPM-XP incl. cylinder
pressure sensor and adaptor
- 1 x Dongle (USB)
- 1 x USB cable
- 1 x USB stick incl.
visualisation software and
documentation
- 1 x tool
- 1 x quick step manual printed
- 1 x calibration certificate
- 1 x instrument case
