9.3 Cleaning procedure of adaptor
Please use a drill with 2.5 mm diameter for to clean gas channel of adaptor (fig. 25 and fig. 26)

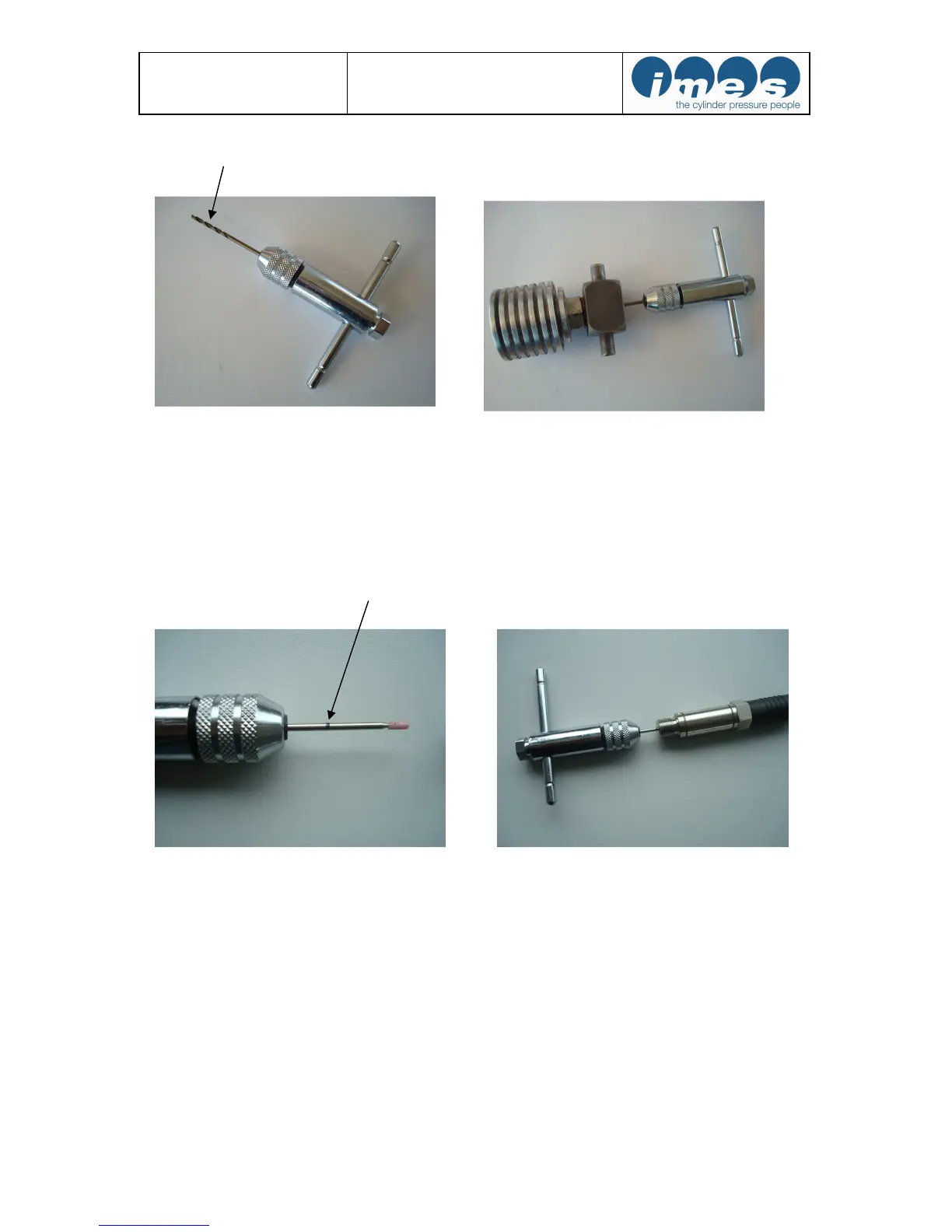

Fig. 25: Drill 2,5 mm Fig. 26: Drill in case channel for cleaning
Clean gas channel of adaptor with a drill 2.5 mm and clean gas channel of cylinder pressure sensor with special
tool.
9.4 Cleaning procedure of cylinder pressure sensor
Please use the special drill tool and clean gas channel of HTT cylinder pressure sensor. (fig. 27 and fig. 28). The
length of gas channel is 29 mm. The max. entering length of special drill tool into gas channel is 28 mm which
is marked. Do not try to drill more than 28 mm into gas channel!
Fig.27: Special drill tool Fig.28: Special drill tool in gas channel of sensor
