AUDAX TOP ErP and Integrated System

100

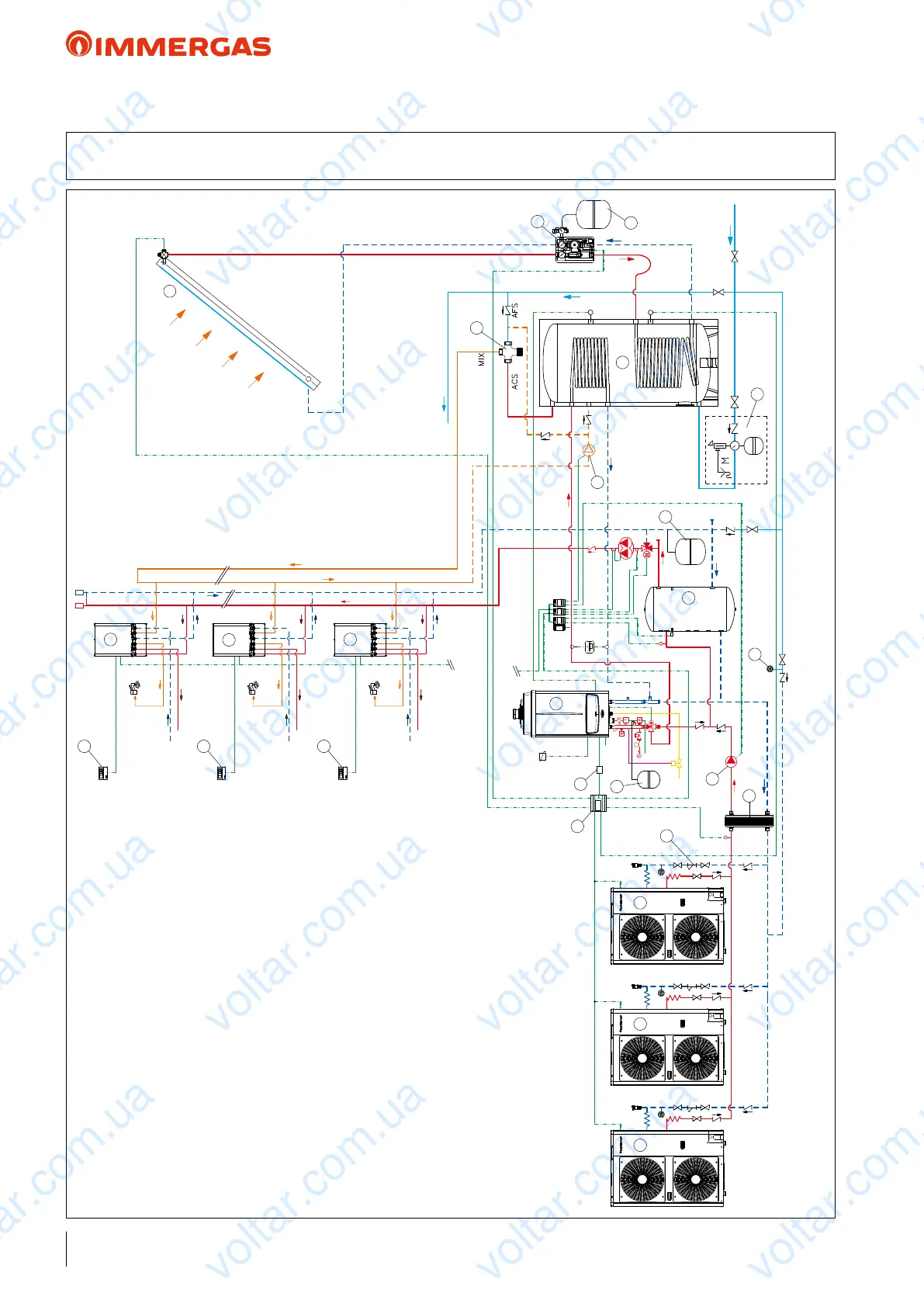

54 HYDRAULIC DIAGRAM: AUDAX TOP ErP cascade air conditioning only) + HIGH OUTPUT boiler +

thermal ywheel and MIXED zone + SOLAR HEATING for D.H.W. PRODUCTION + SYSTEM MANAGER

KEY:

1 - AUDAX TOP 16 ErP

2 - VICTRIX PRO ErP

3 - XL CP4 solar manifold

4 - Double coil storage tank unit

5 - Solar ErP circulation unit with safety valve

6 - Solar expansion vessel

7 - Expansion valve and safety valve for DHW

8 - Hot/cold thermal ywheel (managed as zone)

9 - Heating system expansion vessel

10 - DHW recirculation electric pump ring

11 - DHW thermostatic mixer

12 - Counting unit

13 - ON/OFF Room thermostat

14 - System Manager

15 - Boiler enabling relay

16 - Boiler primary expansion vessel

17 - Standard "Y" lter for AUDAX TOP ErP

18 - AUDAX TOP ErP/system heat exchanger/separator circuits

19 - Post-heat exchanger electric circulation pump

20 - System pressure gauge (to provide)

NOTE: this diagram is an example. It is also required to convey the condensate drain of the heat pump and boiler.

In order to guarantee proper Heat Pump operation (also with antifreeze), each system must consider inserting a bypass to guarantee a minimum ow rate of 420 l/h.

to the counters

Water-DHW network

Thermostat with

summer/winter

calibration

Storage tank

managed as a

direct zone
