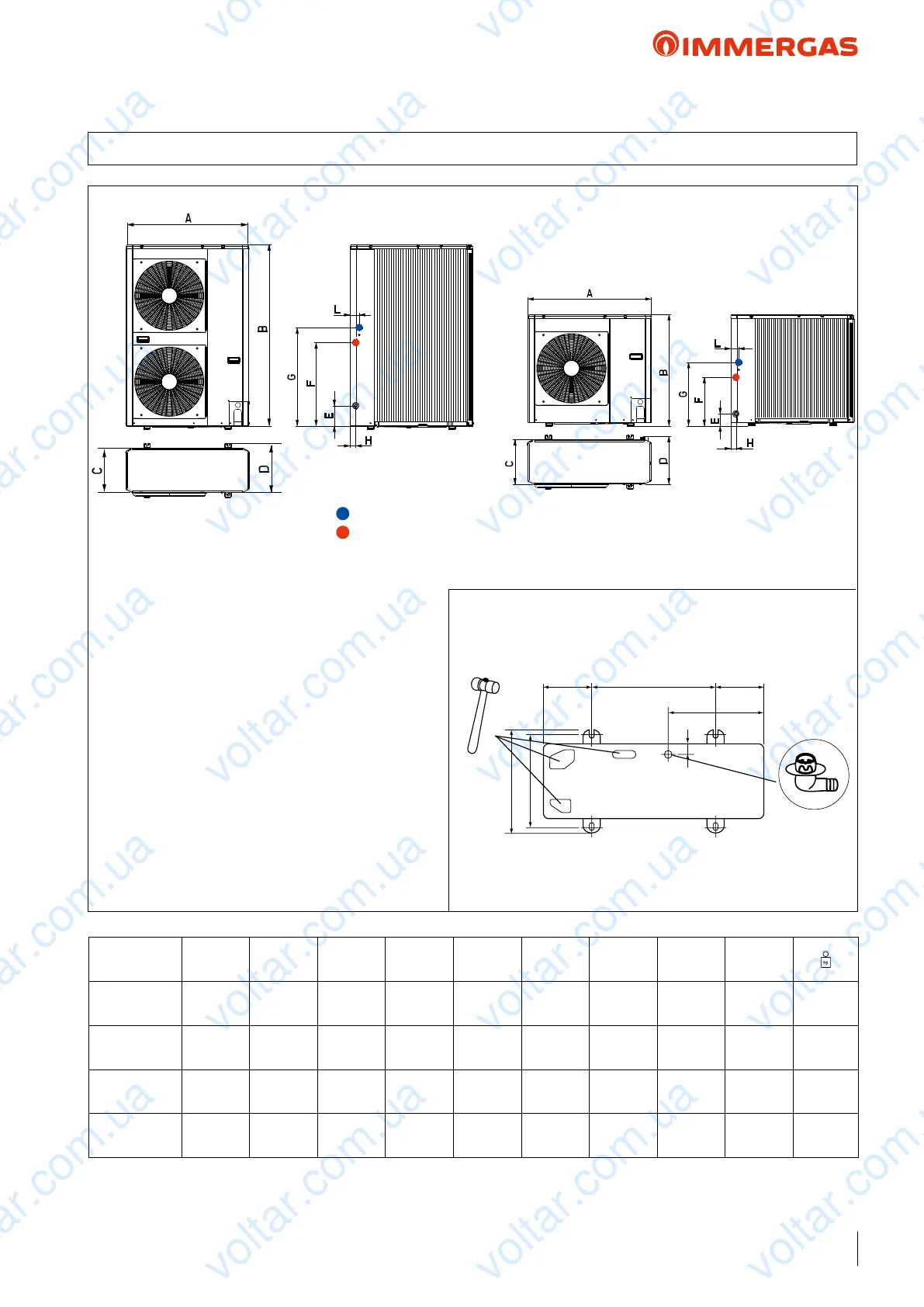

6 AUDAX TOP 6  8  12  16 ErP DIMENSIONS AND CONNECTIONS

600 051051

430

400

363

AUDAX TOP

ErP

A B C D E F G H L

6 kW

single phase

908 821 326 350 87 356 466 40 60 61

8 kW

single phase

908 821 326 350 87 356 466 40 60 69

12 kW

single phase

908 1363 326 350 174 640 750 44 69 104

16 kW

three phase

908 1363 326 350 174 640 750 44 69 116

Condensate drain pipe and pre-cut holes in the

base. If draining is carried out through the drain pipe,

connect the drain tting (A) supplied, and use the

drain pipe (internal diameter: 16 mm) available on the

market. In the event of installation in very cold zones

or zones subject to heavy snow where the condensate

drain pipe can freeze, check the draining capacity of

the pipe. Draining capacity increases when the pre-cut

holes at the base, which collect condensate, are open

(open the pre-cut holes outwards with the aid of a

hammer with smooth edges).

N.B.: e gure on the side shows the measurements

to use to secure the machine (600 x 363). You must

insert the vibration-dampening devices supplied with

the product between AUDAX TOP ErP and the

support base.

System return = 1"M

System ow = 1"M
