AUDAX TOP ErP

KEY:

A1 - Main control board (NHC)

A2 - Control panel

B12 - Domestic hot water temperature

sensor

EH1 - Plate exchanger heater

EH90 - Hydraulic unit heater

FS - Flow switch

K001 - System integration

K002 - DHW Integration

Wiring colour codes:

BK - Black

BL - Blue

BR - Brown

G - Green

R - Red

W - White

CONTROL

PANEL

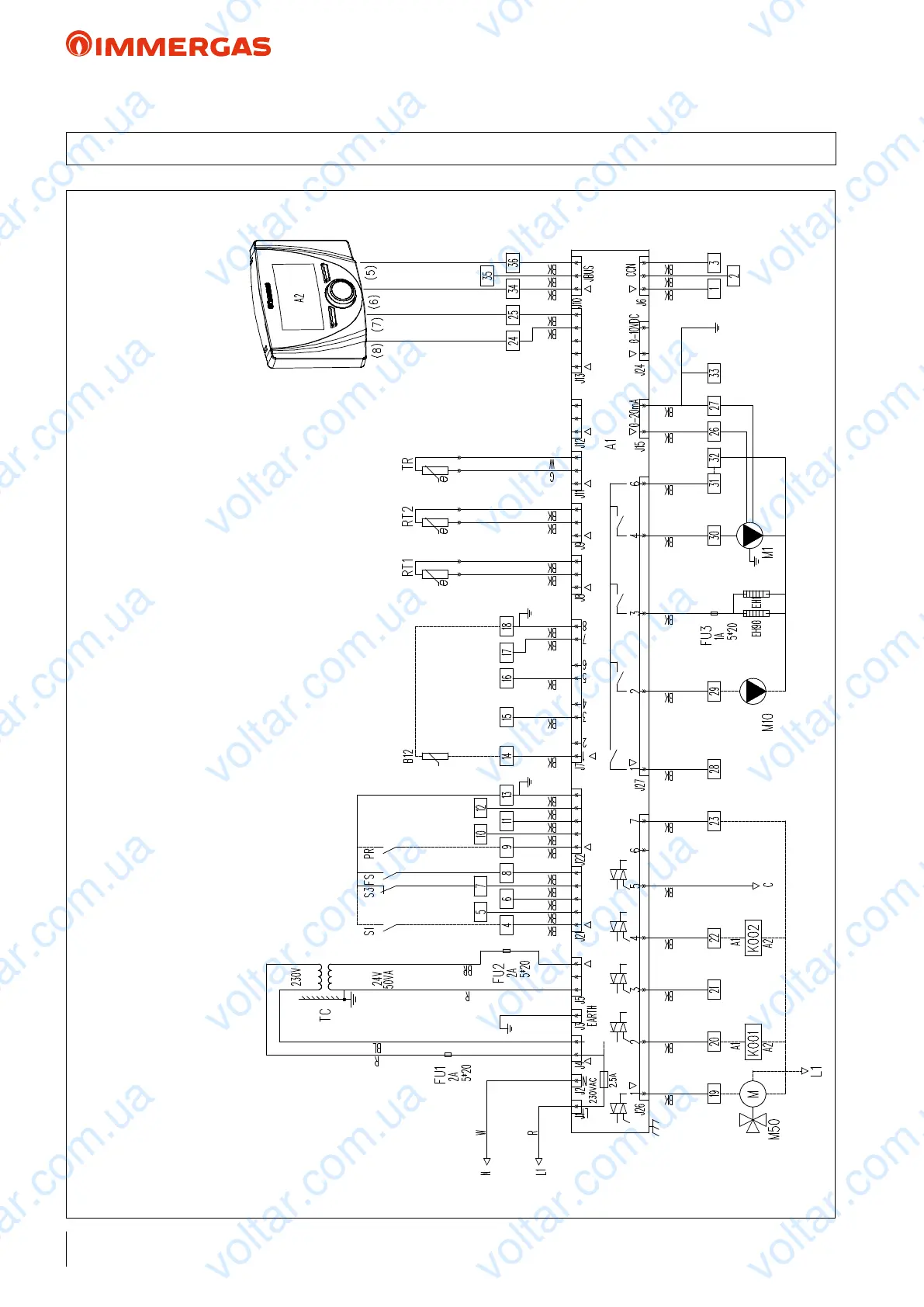

38 AUDAX TOP 18  21 ErP CONTROL DIAGRAM

M1 - Heat pump circulator

M10 - Additional pump

M50 - DHW 3-way valve

PR - Power reduction enabling

RT1 - Flow sensor

RT2 - Return sensor

S1 - Room thermostat

S3 - External safety inlet

TC - Transformer

TR - Coolant sensor
