AUDAX TOP ErP

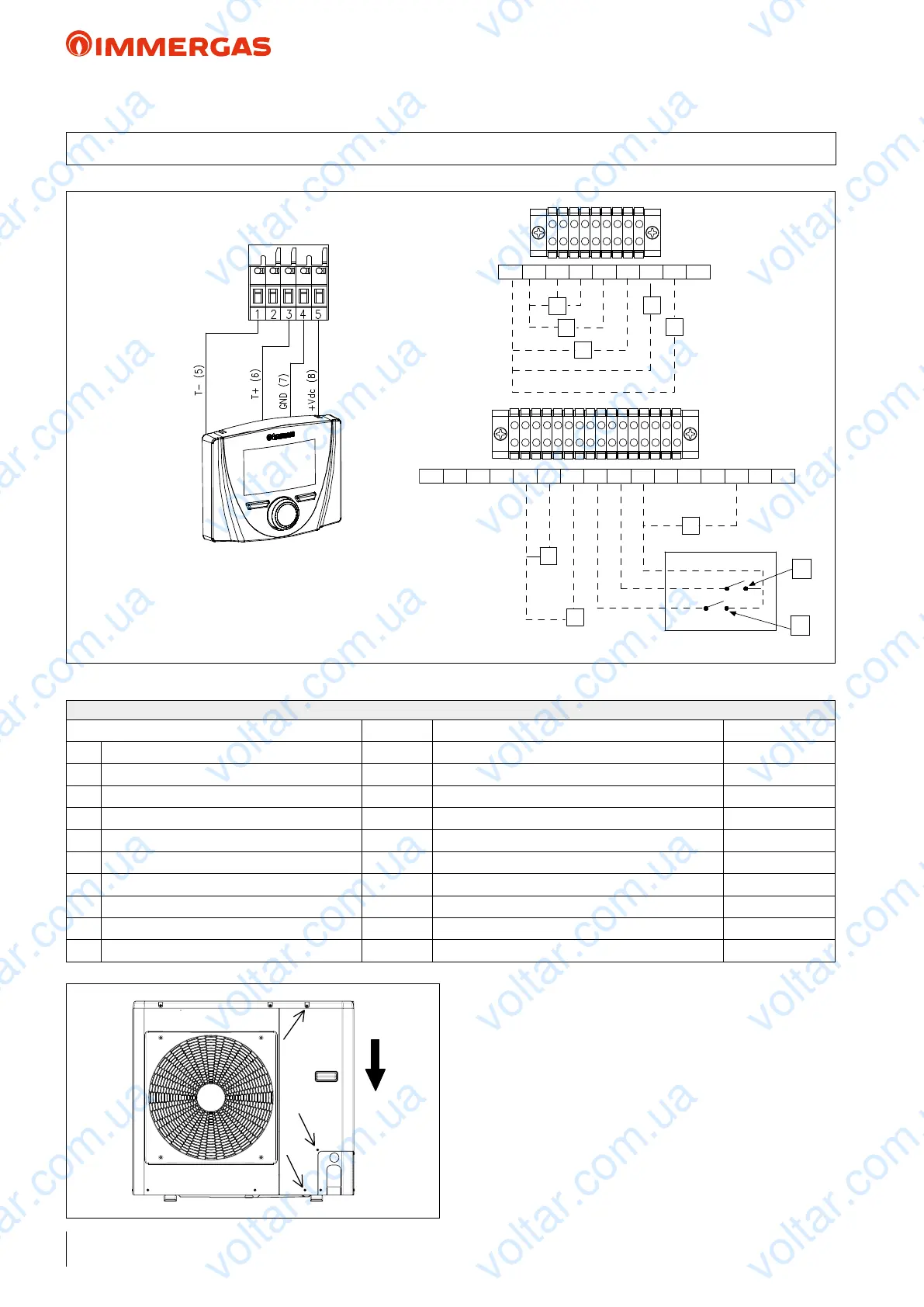

36 AUDAX TOP 6  8  12  16 ErP TERMINAL BLOCK ELECTRICAL CONNECTIONS

N N 18 10 11 12 4 5 16

C W G Y 13 14 15 76321821 23 24

N.B.: With system Manager applications, the Control Panel

(standard) can also function as a room temperature/humidity

probe of a system's zone. Refer to the chapter with regard to

examples of application diagrams on pages 88 to 103 for the

electrical connections.

CONTROL

PANEL

Remove the panel (refer to the g. on the side) to see the elec-

trical components on the front. e electrical supply voltage

cables can be inserted in the holes set up. You must clamp the

electrical cables using group cable ties in order to prevent them

from touching the compressor and hot pipes.

e unit can be controlled and set by means of:

• Control Panel (standard).

• Switches or thermostats (not supplied).

Refer to the gure above for electrical connections.

N.B.: the quality of the contacts must be higher than 25mA @

12V. You are always required to install a circuit breaker switch.

AUDAX TOP ErP TERMINAL BLOCK PIN

Description PIN Signal Limits

1 3-way valve 10 - 18 - N Output 230Vac (18-N: Supply voltage, 10: signal) 1 ph ~ 230V, 2A

2 Alarm 11 - N Output, Relay Contact 1 ph ~ 230V, 2A

3 Auxiliary Pump 12 - N Output, Relay Contact 1 ph ~ 230V, 2A

Auxiliary Heat Source (e.g. electrical resistance)

4 - N Output, Relay Contact 1 ph ~ 230V, 2A

5 Alarm 5 - N Output, Relay Contact 1 ph ~ 230V, 2A

6 Compressor Maximum Frequency Reduction 13 - 14 Input (contacts quality switch >25mA@12V) N.A.

7 DHW request 13 - 15 Input (contacts quality switch >25mA@12V) N.A.

8 Alarm input (external) 21 - 3 Input (contacts quality switch >25mA@12V) N.A.

S1 On (On = closed) / O (O = open) 6 - 3 Potential-free contact N.A.

S2 Central Heating (closed) / Cooling (open) 7 - 3 Potential-free contact N.A.

Grey 5-pole terminal

block
