AUDAX TOP ErP and Integrated System
107
57.1 25LITRE HORIZONTAL INERTIAL STORAGE TANK Code 3.025061
Minimum water content is mainly important to provide proper
execution of AUDAX TOP ErP heat pump defrosting cycles.
In this regard, the minimum amount of water must be 6 l/
kW of the machine's power for any type of system.
It is also important to check that the dehumidier line has a
minimum of 3 l/kW of the machine (dehumidier hydraulic
circuit connection reference).
e ywheel naturally also guarantees normal operation of
AUDAX TOP ErP with systems divided into zones (therefore,
with variable water content in circulation).
Improved operation with the thermal ywheel is obtained, for
example, with fan coils used in cooling mode (a condition in
which the ow temperature is very low and signicant heat load
changes vary according to the number of active fan coils).
57 MAIN INERTIAL STORAGE TANK TECHNICAL FEATURES
MAIN FEATURES:
All inertial storage tanks are provided with set-ups to x
AUDAX TOP ErP (excluded AUDAX TOP 18 - 21 ErP)
through M10 threaded holes (in correspondence with the
height of the support feet of the said AUDAX TOP ErP);
e outer panels are painted the same colour as AUDAX TOP
ErP;
e outer storage tanks are complete with an insulating
(Isolene) casing 20 mm thick;
e inertial storage tanks are supplied with vibration-damp-
ening devices (to place between thermal ywheel and support
surface);
An earthing securing device is installed;
For practical connection, each inertial storage tank has 4
connections and plugs for unused ttings;
e 25 and 75-litre models have an additional ¾” connection
for any expansion vessel and the space to insert a small expan-
sion vessel in the casing;
e inertial storage tanks are equipped by default with a lling/
draining connection and relative cock;
Any check valves on other connections must be provided
separately.

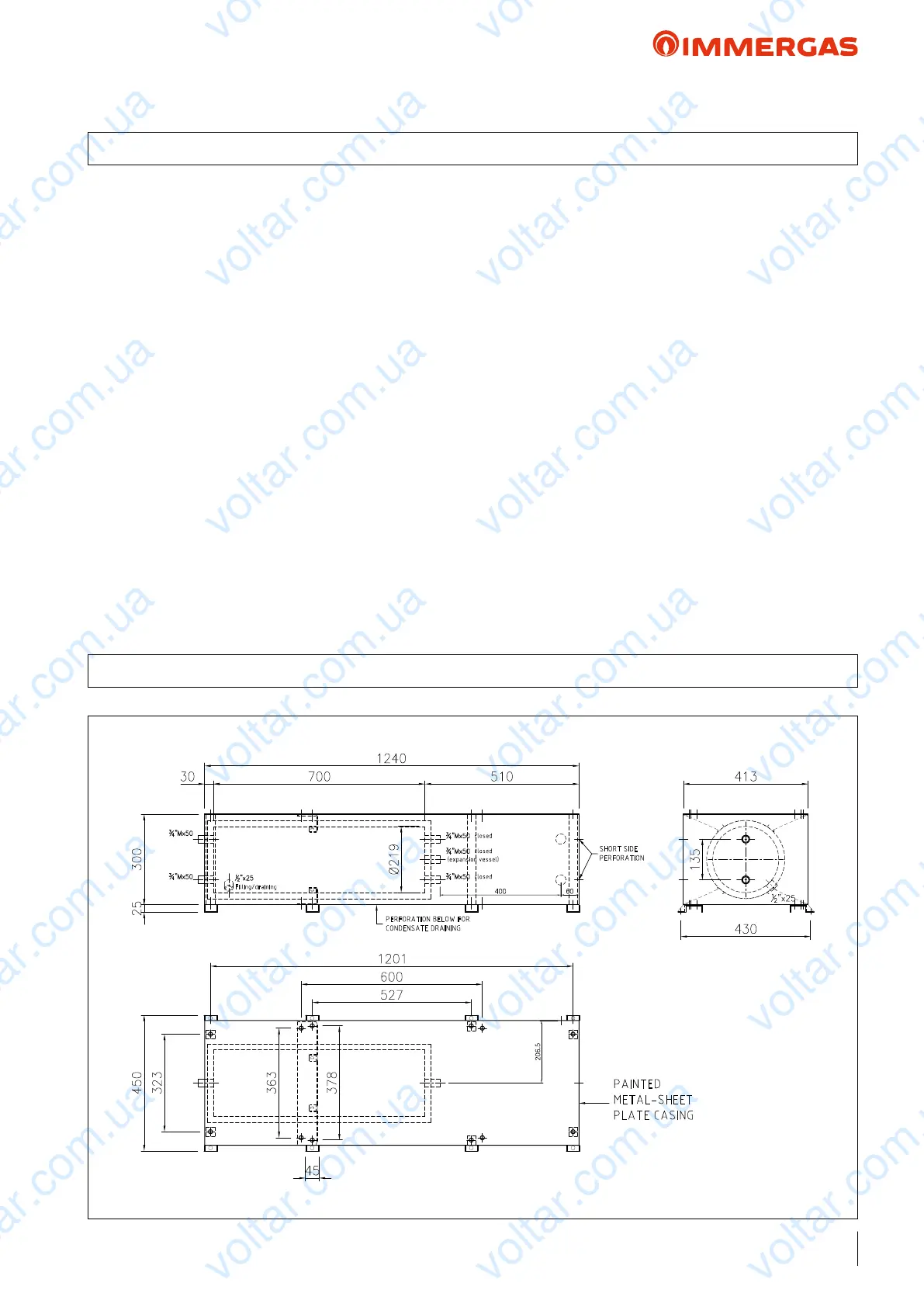

Filling/draining
closed
closed
SHORT SIDE
PERFORATION
PERFORATION BELOW FOR
CONDENSATE DRAINING
PAINTED
METAL-SHEET
PLATE CASING
closed
(expansion vessel)
TECHNICAL DATA:
Max. operating temperature = 90 °C
Max. operating pressure = 3 bar
Full weight = 64 kg
